Slim Fit Split Frame (SFSF) Clamshells


    Wide Range of SFSF Motors


    SFSF Clamshells Motors

    For our SFSF clamshells we offer a wide range of pneumatic, electric made 100% in house and hydraulic choose by our engineers or upon customer preference. Such a big range and variety of parameters allow us to select motor to achieve to best and most post suitable cutting speed to machined pipe material and diameter

    Pneumatic Motors

    B50-xxx-RA

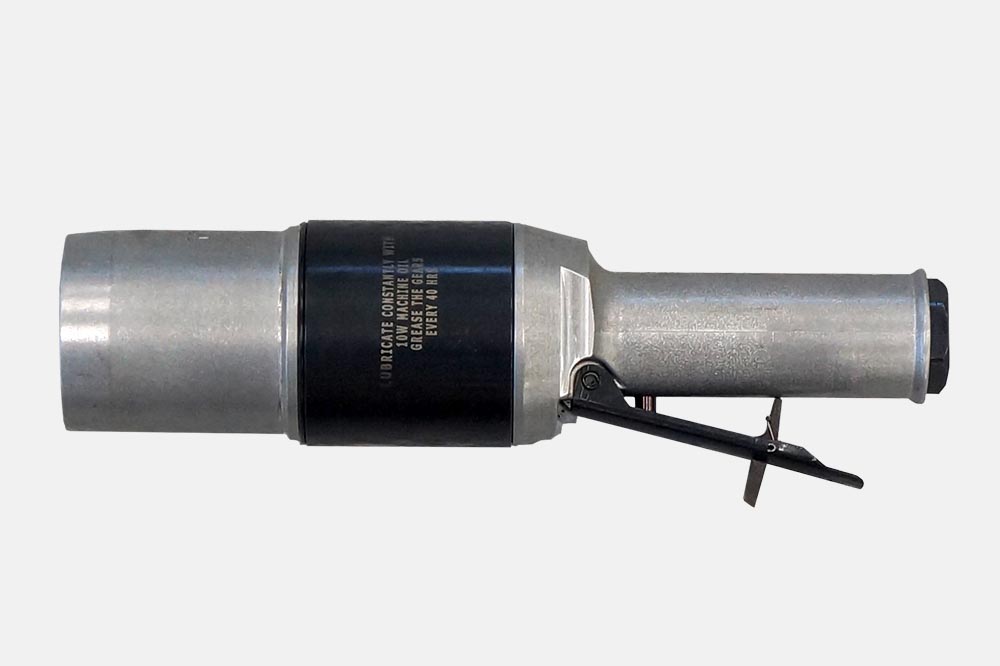

    B50-100X
    HM-xxx

    K7x-LT-xxx
    PDx48U

    Recommendation And Proposal

    Subject to change upon customer requirement and application

    Unit Motor Power Complete weight
    Hp Kg
    SF-4 B50-100X 1,3 11
    SF-6 HM-252 2,2 17
    SF-8 HM-252 2,2 20
    SF-10 HM-252 2,2 27
    SF-12 HM-252 2,2 23
    SF-14 HM-198 2,2 28
    SF-16 HM-198 2,2 32
    SF-18 K72-LT-90 3,5 36
    SF-20 K72-LT-90 3,5 39
    SF-24 PD248U 3,5 52
    SF-28 PD248U 3,5 95
    SF-32 PD248U 3,5 107
    SF-36 PD248U 3,5 118
    SF-42 PD248U 3,5 137
    SF-48 PD248U 3,5 153

    All Pneumatic Motors

    Motor Rightangle Speed Power Torque Air consumption Air working pressure
    rpm Hp Nm Lt/min cfm bar psi
    B50-100X no 200 1,3 70 1300 55 6,2 90

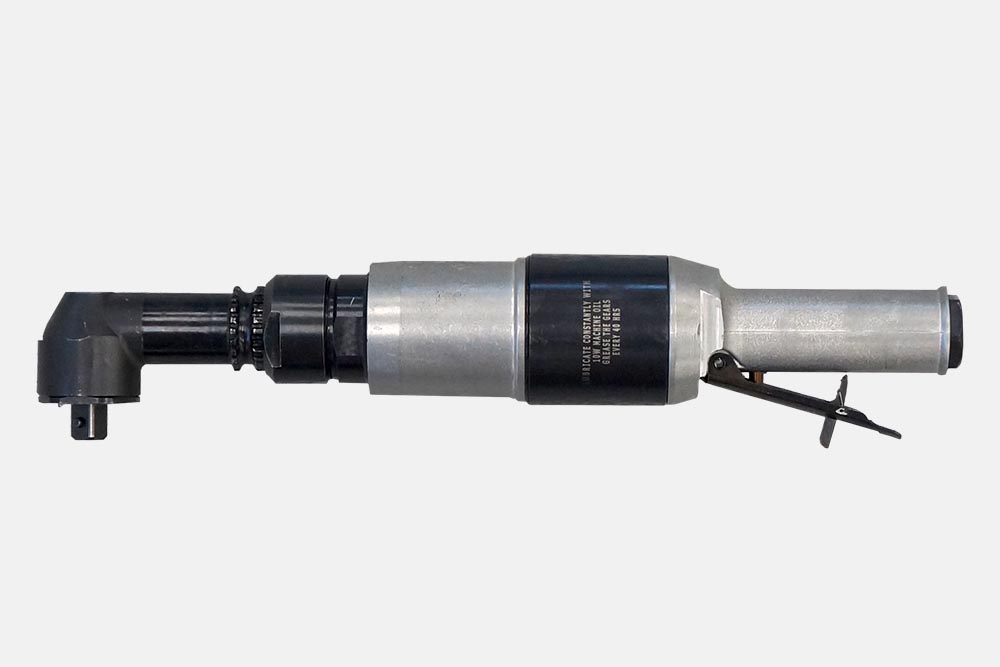

    B50-115-RA yes 115 1,3 186 1300 55 6,2 90
    B50-210-RA yes 210 1,3 102 1300 55 6,2 90
    B50-290-RA yes 290 1,3 74 1300 55 6,2 90

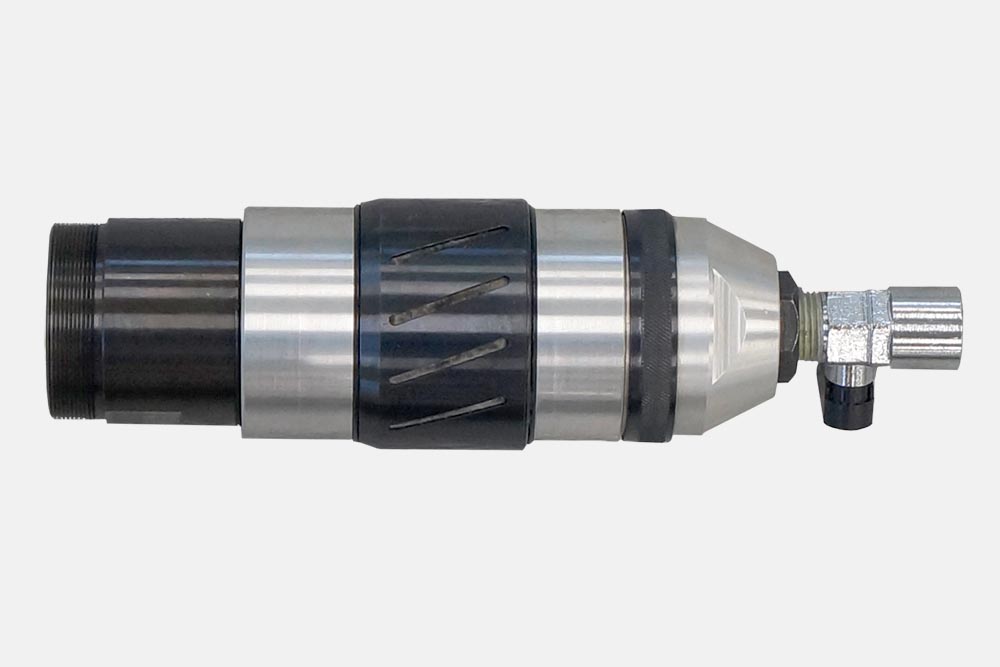

    HM-198 no 198 2,2 186 2200 75 6,2 90
    HM-252 no 252 2,2 150 2200 75 6,2 90
    HM-379 no 379 2,2 105 2200 75 6,2 90
    HM-498 no 498 2,2 83 2200 75 6,2 90

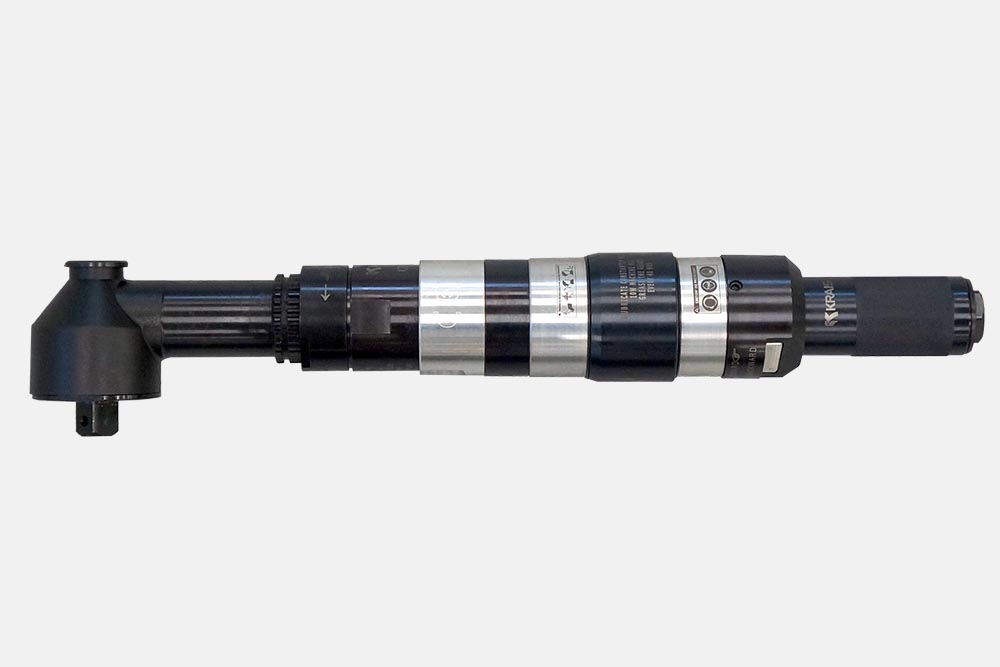

    K72-LT-90 yes 90 2,2 405 2200 75 6,2 90
    K73-LT-190 yes 190 2,2 200 2200 75 6,2 90
    PD248U no 185 3,5 416 2800 95 6,2 90

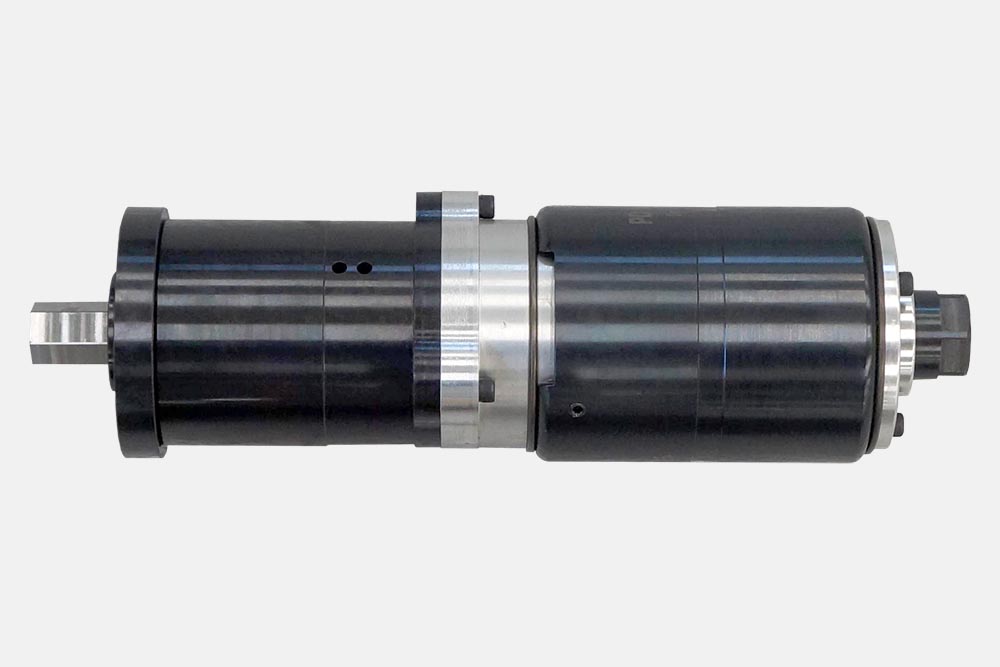

    PD348U no 60 3,5 1250 2800 95 6,2 90

    Electric Motors

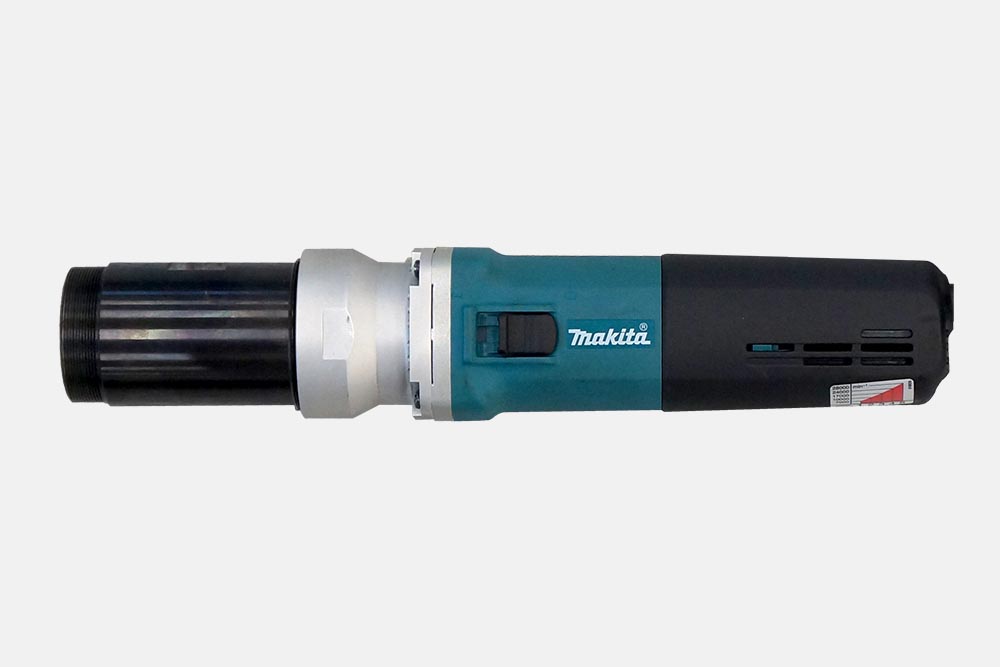

    ED-230

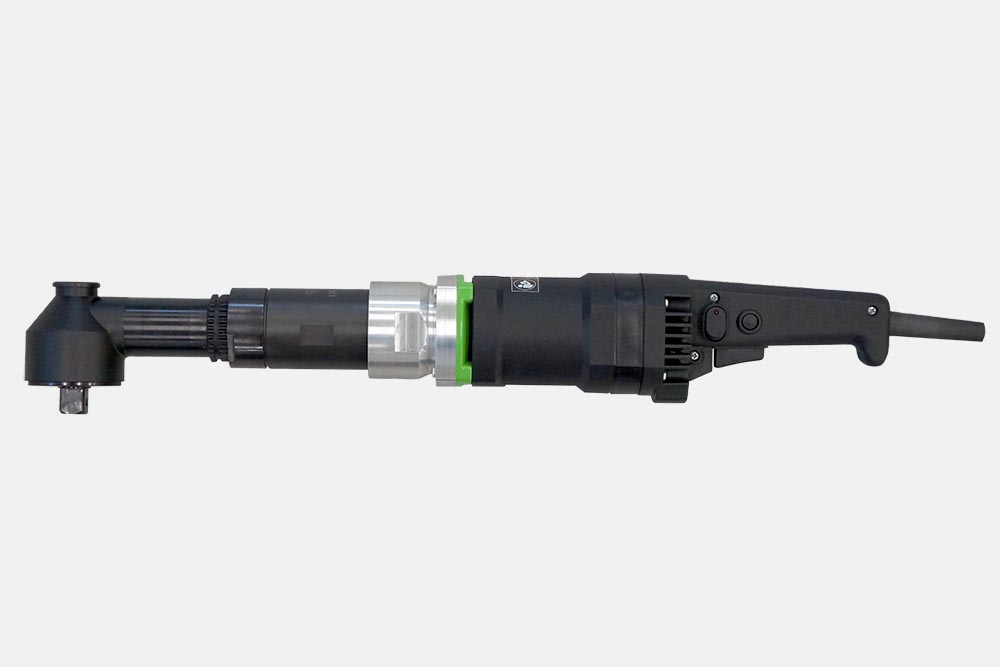

    K90Exxx

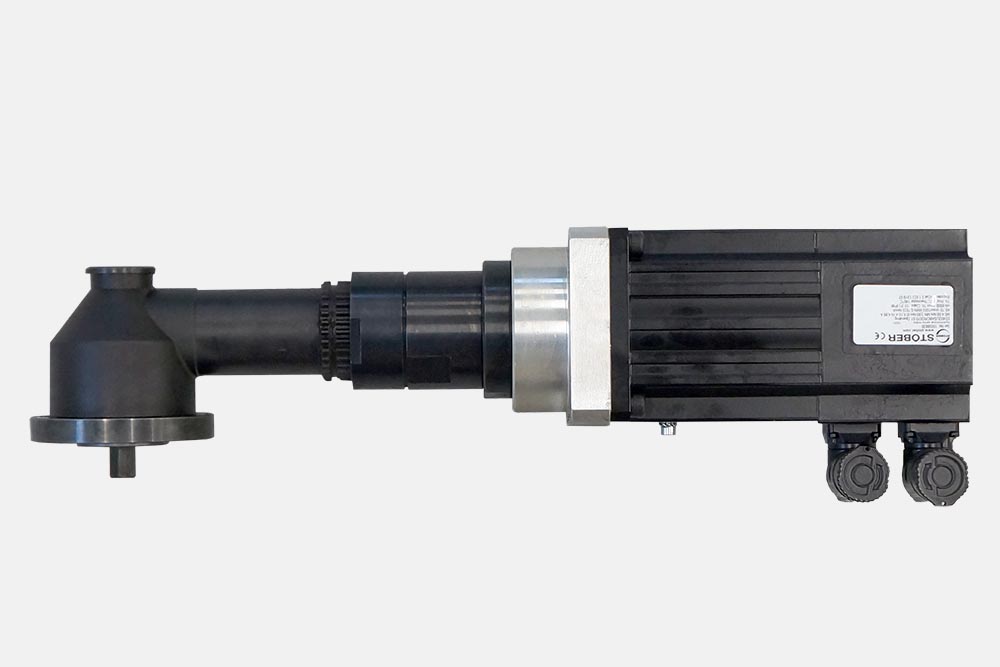

    B1-RA

    Recommendation And Proposal

    Subject to change upon customer requirement and application

    nit Motor Power Complete weight
    Watt Kg
    SF-4 ED-230 750 11
    SF-6 ED-230 750 17
    SF-8 ED-230 750 20
    SF-10 K90E90 1100 27
    SF-12 K90E90 1100 23
    SF-14 K90E90 1100 28
    SF-16 K90E90 1100 32

    All Electric Motors

    Motor Motor speed Motor Power Torque (max con- tinues) Oil working pressure Oil low rate min. required
    rpm Hp Nm bar psi Lt/min gpm
    HTB-165 343 167 273 190 2750 57 15
