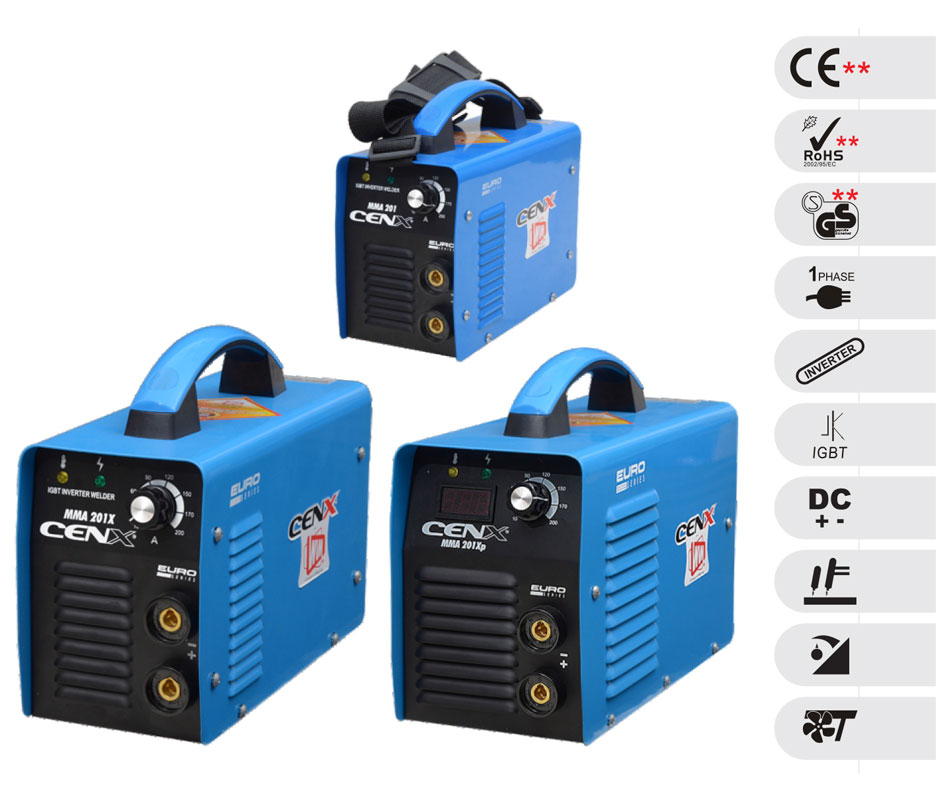

ARC (MMA) Inverters

201 Range Professional - Models: 201/201x/201xp

Technical Specification:

Technical Specifications 201 201X 201Xp
Input Voltage (V) 230 +/- 15% 230 +/- 15% 230 +/- 15%
Frequency (Hz) 50/60 50/60 50/60
Rated Input Current (A) 24 29 34
No Load Voltage (V) 70 70 70
Output Current Range (A) 10 - 140 10 - 160 10 - 180
Output Voltage (V) 28.2 28.2 28.2
Duty Cycle (%) @ 40 Degree C 35 35 35
Efficiency (%) 85 85 85
Digital Display No No Yes
Power Factor 0.9 0.9 0.9
Insulation Class H H H
Protection Class IP21S IP21S IP21S
Weight (Kgs.) 4.5 5.5 6.5
Dimension (mm) 328 x 150 x 200 390 x 155 x 295 390 x 155 x 295
Usable Electrode - MS 6013 - (mm) 1.6 to 3.15 1.6 to 3.150 1.6 to 4.0
Product Reference MMA140KBC MMA160KBC MMA180KBCD
Product Code JB16008 JB161009 JB161010

Features :


  • Light and Compact
  • Energy Efficient
  • Stable Arc
  • Deep Penetration
  • Over Voltage and Over Current protection
  • Suitable to weld all kinds of basic electrodes
  • Suitable for Scratch TIG

Welds :


  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Cast Steel
