MiniMill 300GFF
Ideal for gasket seat machining of any size of fin fan cooler. A standard machine is equipped with a cutter head and a special locking system to fit your application. The machine locks directly into the plug thread.
Standard working range
| APPLICATION RANGE |
LOCKING RANGE (ID) |
| 1,125 – 2,125” |
Special fit to plug thread |
| 12 TPI |
Motor parameters
| FEED STROKE |
FREE SPEED |
POWER |
TORQUE |
| 20 mm |
0,787” |
300 Rpm |
1,3 Hp |
43 Nm |
32 Ft.Lbs |
| Air use: |
55 cfm |
1,3 m3/min |
Body width: |
2,32” |
59 mm |
|
Body height: |
13,1” |
335 mm |
Body weight: |
13,2Lbs |
6 kg |
Gasket seat facing head numbers
| HEAD TYPE |
PLUG SIZE |
NEST DIAMETER |
INSERT |
NO. OF INSERTS |
| [INCH] |
[MM] |
TPI |
MIN [INCH] |
MAX [INCH] |
MIN [MM] |
MAX [MM] |
| FFGSMH-1125 |
1,125 |
28,58 |
12 |
0,940 |
1,496 |
24,00 |
38,00 |
CI 5x5 |
4 |
| FFGSMH-1250 |
1,250 |
31,75 |
12 |
1,063 |
1,614 |
27,00 |
41,00 |
CI 5x5 |
4 |
| FFGSMH-1350 |
1,375 |
34,93 |
12 |
1,220 |
1,772 |
31,00 |
45,00 |
CI 5x5 |
4 |
| FFGSMH-1500 |
1,500 |
38,10 |
12 |
1,339 |
1,890 |
34,00 |
48,00 |
CI 5x5 |
4 |
| FFGSMH-1625 |
1,625 |
41,27 |
12 |
1,457 |
2,008 |
37,00 |
51,00 |
CI 5x5 |
4 |
| FFGSMH-1750 |
1,750 |
44,45 |
12 |
1,590 |
2,140 |
40,40 |
54,40 |
CI 5x5 |
4 |
| FFGSMH-1875 |
1,875 |
47,62 |
12 |
1,720 |
2,270 |
43,60 |
57,60 |
CI 5x5 |
4 |
Jaws for gasket seat facing
| JAWS SET NUMBER |
PLUG SIZE |
TPI |
PILOT |
| [INCH] |
[MM] |
| 701MM #36-1-1/8-GFF |
1,125 |
28,575 |
12 |
PGFF-1125 |
| 703MM #36-1-1/4-GFF |
1,250 |
31,750 |
12 |
PGFF-1250 |
| 705MM #36-1-3/8-GFF |
1,375 |
34,925 |
12 |
PGFF-1350 |
| 707MM #36-1-1/2-GFF |
1,500 |
38,100 |
12 |
PGFF-1500 |
| 709MM #36-1-5/8-GFF |
1,625 |
41,275 |
12 |
PGFF-1625 |
| 711MM #36-1-3/4-GFF |
1,750 |
44,450 |
12 |
PGFF-1750 |
| 713MM #36-1-7/8-GFF |
1,875 |
47,625 |
12 |
PGFF-1875 |
*Other sizes on request. If plug holes are damaged beyond repair, our MiniDrill 55 can be used to upsize them to the next size. Example – 1-1/8” to 1-3/8”.

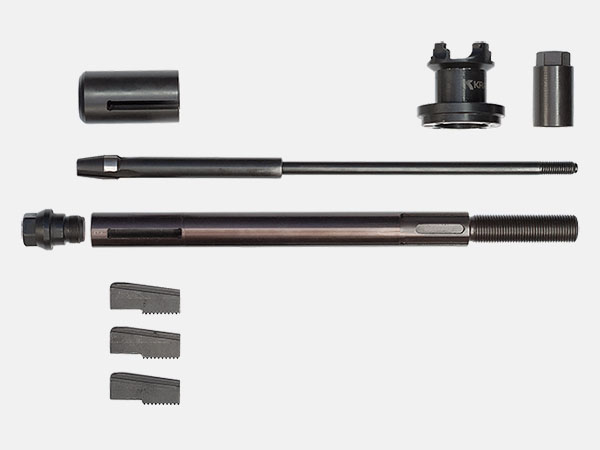

Standard set up
GASKET FINFAN SET
Supplied with 20 mm shaft, one set of jaws to suit plug thread diameter, pilot and gasket seat milling head. Plug size details must be provide by customer with order.
