MiniMill 301LP
*Recommended for: tube facing and trimming, seal weld removal
The fastest and strongest facing machine on the market. Engineered for safety and ease of use, featuring a pneumatic locking system with a double piston cylinder. Compact milling head with double cutting edge inserts with 6% cobalt. For all types of material including: ferrous, nonferrous, stainless and exotic alloys steel, duplex, inconel and titanium.
Standard working range
| LOCKING RANGE (ID) | FEED STROKE |
| 12,5 – 38,0 mm | 12,5 – 23,0 mm |
| 0,492 – 1,500” | 0,492 – 0,900” |
Motor parameters
| APPLICATION RANGE | FREE SPEED | POWER | TORQUE | ||
| 20 mm | 0,787” | 300 Rpm | 1,3 Hp | 43 Nm | 32 Ft.Lbs |
| Air use: | 55 cfm | 1,3 m3/min |
Body width: | 2,32” | 59 mm |
| Body height: | 13,1” | 335 mm | Body weight: | 15,4 Lbs | 7 kg |
Standard set up
MINISHAFT
A system with interchangeable guide shafts. A complete set covers 12,4 to 48,0 mm ID tubes.
A system with interchangeable guide shafts. A complete set covers 12,4 to 48,0 mm ID tubes.60 MM (2,36”)
A system with interchangeable guide shafts. A complete set covers 12,4 to 48,0 mm ID tubes.
A system with interchangeable guide shafts. A complete set covers 12,4 to 48,0 mm ID tubes.Optional working range
| LOCKING RANGE (ID) | FEED STROKE |
| 10 – 51 mm | 10 – 48 mm |
| 0,394 – 2,008” | 0,394 – 1,890” |
Optional headss
TFMH
Tube facing milling head for tubes made of any type of material. Utilizes 6% cobalt inserts.

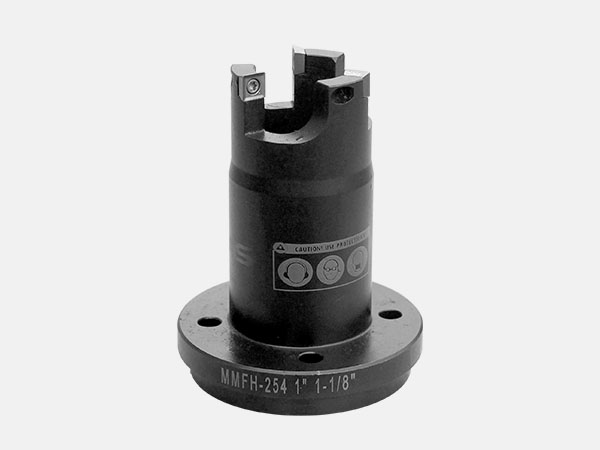

Tube facing milling head for tubes made of any type of material. Utilizes 6% cobalt inserts.MMFH
Head dedicated for strength weld removal. Heads are easy to align and sized per tube diameter.
Head dedicated for strength weld removal. Heads are easy to align and sized per tube diameter.STWRMH
Tube facing milling head for tubes made of hardest type of materials. Utilizes carbide inserts with 4 blades
Tube facing milling head for tubes made of hardest type of materials. Utilizes carbide inserts with 4 bladesOptional shafts
MICROSHAFT
A system with interchangeable guide shafts. A complete set covers 9,0 to 15,0 mm inside diameter.
A system with interchangeable guide shafts. A complete set covers 9,0 to 15,0 mm inside diameter.SHAFT 20
Redesigned heavy duty locking system. Shafts and jaws are longer and wider to ensure maximum clamping force. The jaws are self-align.
Redesigned heavy duty locking system. Shafts and jaws are longer and wider to ensure maximum clamping force. The jaws are self-align.Additional accesories
SPEED REDUCER
Easy to use gearbox for 3x speed reduction. Increases the torque, enabling the machine to generate a thick chip whilst reducing the cutting time.
Easy to use gearbox for 3x speed reduction. Increases the torque, enabling the machine to generate a thick chip whilst reducing the cutting time.SPEED ADJUSTMENT VALVE SAV-500
The solution for all pneumatic drove beveling machines. Allows adjusting cutting speed to suit to the machined tube diameter.
The solution for all pneumatic drove beveling machines. Allows adjusting cutting speed to suit to the machined tube diameter.STAR WHEEL
The most precise feed system. Used in many basic and demanding applications.
The most precise feed system. Used in many basic and demanding applications.Bevelling Machines
