Orbitalum Pipe cutting and beveling machines

The basic requirement for the productive and high-quality welding of pipes with automated welding technology is a precise, right-angled and burrfree cut as well as a perfectly beveled pipe end. The Orbitalum pipe saws cut and bevel high-alloy steel (stainless steel), low- and unalloyed steel, plastics, casting materials and non-ferrous metals easily and in just seconds, using the "Planetary Cutting" method. The powerful clamping is effected without any deformation of the workpiece.
Enhanced safety due to stationary tube – rotating tool
The tested process of planetary cutting is another important feature, which characterizes all ORBITALUM pipe cutting machines. The saw blade rises into the cutting area and is driven orbitally around the tube. The advantage is that a small saw blade can cut a large tube diameter, without heating the tube.

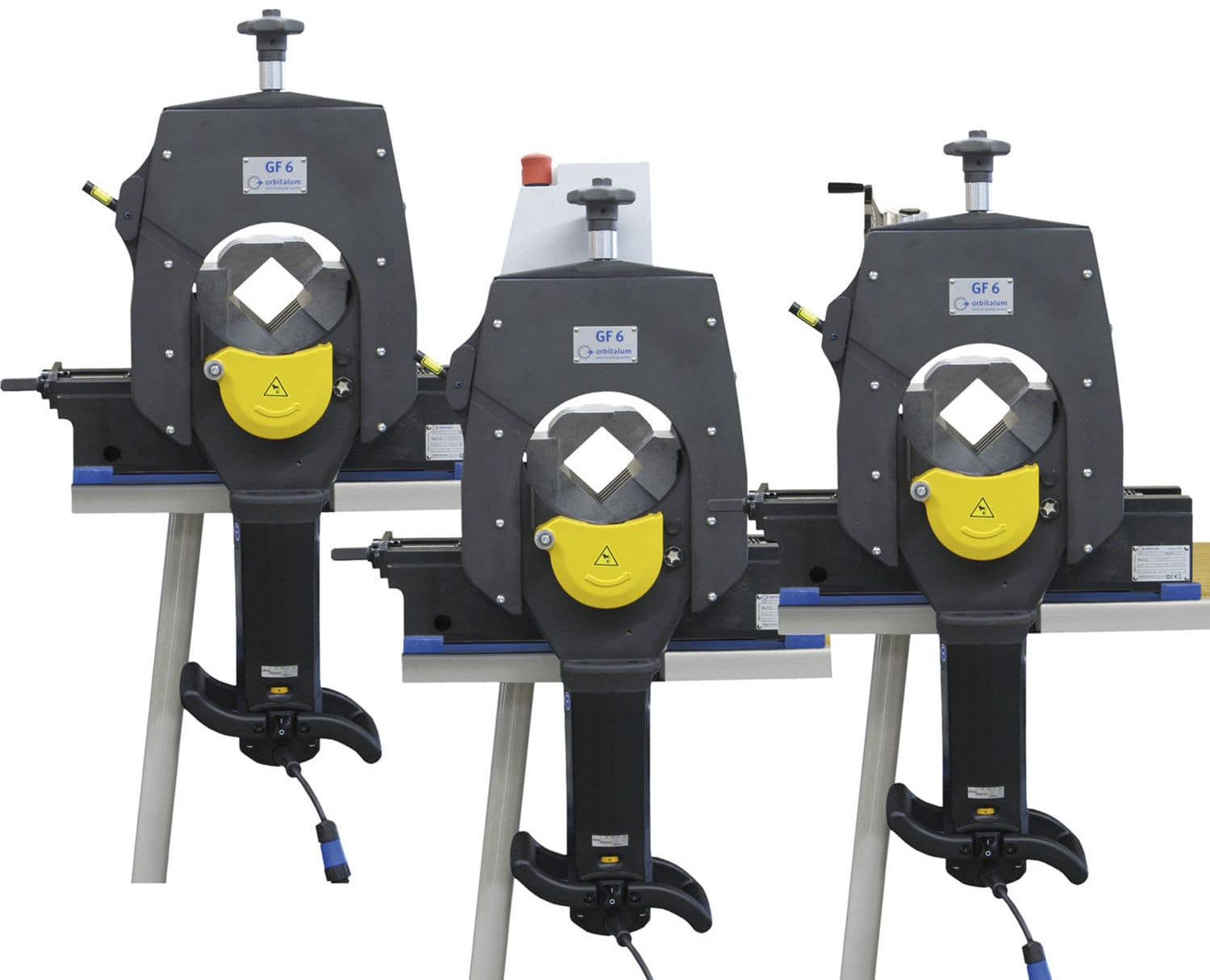

GF 4, GF 6 (AVM/MVM)

« This saw has been designed for precise cutting of tubes and pipes in just seconds »

For more than 40 years construction companies rely on the standard set by Orbitalum in the industrial prefabrication of pipeline systems: From the chemical, biotechnology, pharmaceutical, food & beverage industry to energy plant construction & shipbuilding.

Data Sheet:

APPLICATION RANGE		GF 4 (AVM/MVM)	GF 6 (AVM/MVM)
Tube OD	[mm]	12 - 120	21.3 - 168.3
	[inch]	0.472 - 4.724	0.839 - 6.626
Wall thickness	[mm]	1 - 9	1.5 - 15
(Depends on material)	[inch]	0.039 - 0.354	0.059 - 0.591
