Orbitalum Facing Machines

Tube squaring technology

Our RPG series represent ease of use and particularly economical clamping.

Pipe and installation manufacturers from the high-purity gas, electronics, pharmaceuticals, food processing, beverages, solar and chemical industries benefit from the mobile, high-quality and burr-free processing of pipe ends.
With the cordless version, we offer the optimal solution, which is independent of an electricity supply, for extending or repairing an existing plant with limited space availability.
Due to the quick tool change system, tools, clamping shells and tubes can be easily changed without using any additional equipment. All multifunctional tools (MFW) are two-sided tool bits with protective coating against tool wear. This enables the preparation of tubes made of high-alloy, unalloyed and low-alloy steels and aluminum with high precision very quickly and efficiently.

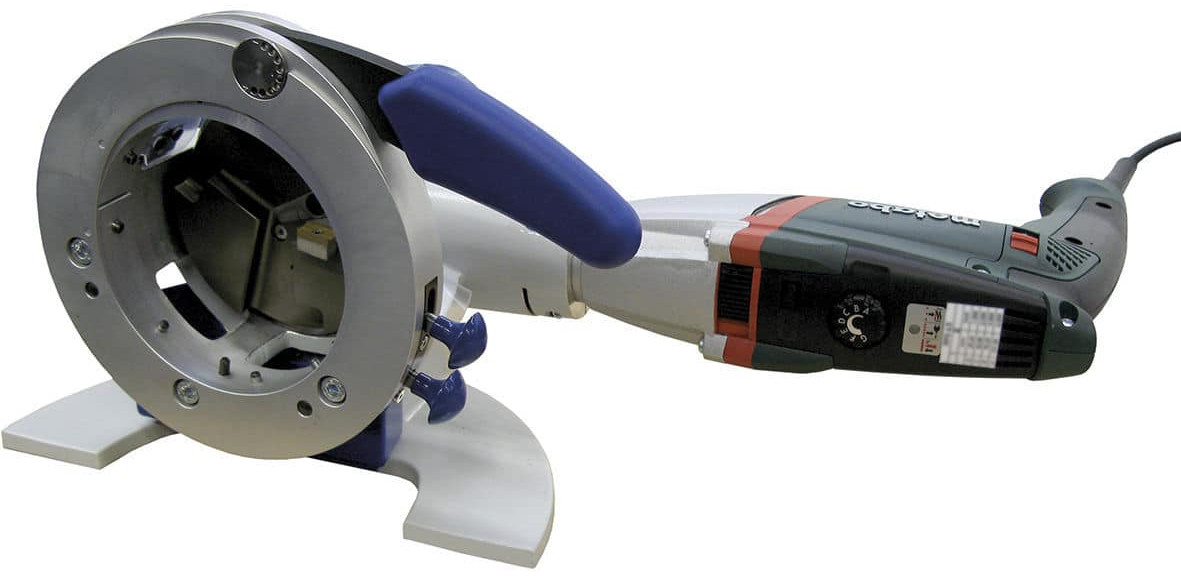

RPG 4.5, RPG 8.6

« The clean and high value solution for specific welding preparations »

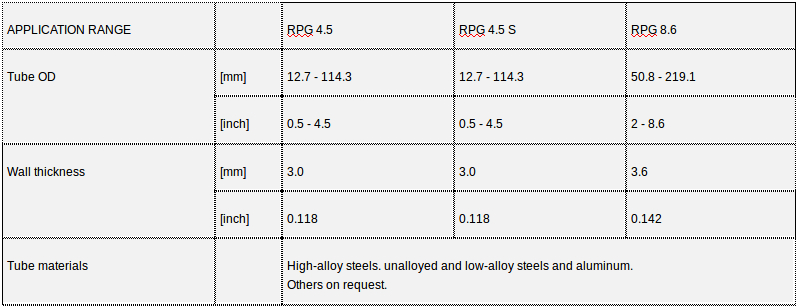

Designed for burr - free squaring of thin - walled stainless steel tubes up to OD 1114.3 mm (4.5") or OD 219.1 mm (8.6"). Clean and secure working area with clear view cutting head. Machine with removable bench stand.
