Tube to Tube sheet orbital weld heads:
With our TIG weld heads, it is no longer a problem to weld tubes to tubesheets with the highest of accuracy and consistent quality.
In connection with an ORBITALUM orbital welding power supply, the user is being offered an extremely innovative and economical welding system: All ORBITALUM orbital welding power sources automatically detect the head and its properties so that the operator only has to call up his or her specified joining program and start the joining process before beginning to weld.

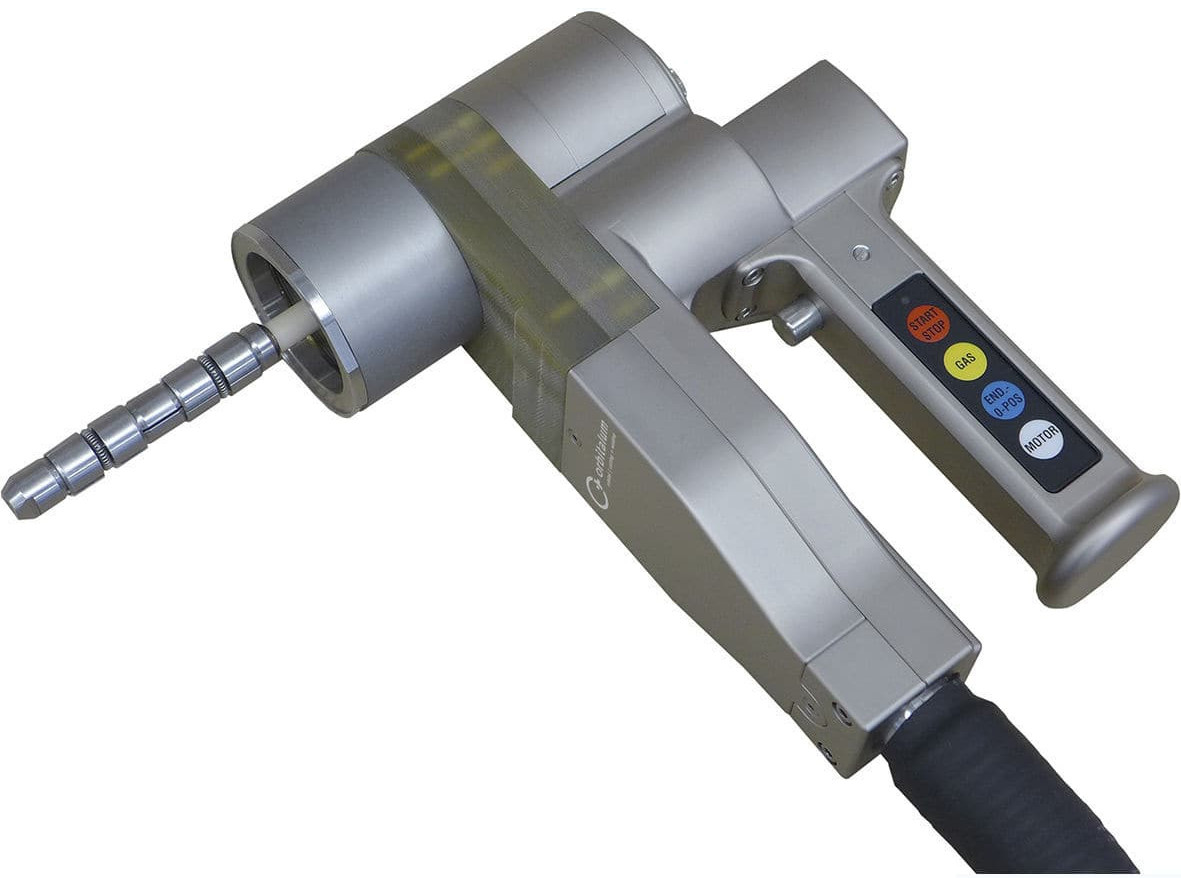

TX 38P
« Excellently suitable for repair, maintenance and servicing work »
The new orbital TIG weld head from Orbitalum for manufacturing pipe-to-pipe-sheet connections guarantees extremely short production times of industrial heat exchanges at constantly high reproducible quality.

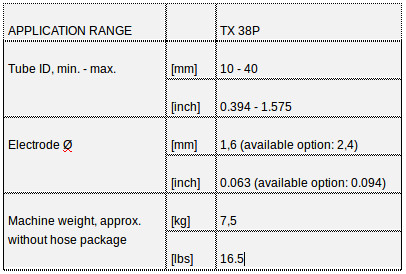

Data Sheet:
P16, P16 AVC, P20
« Our P series is characterized by special design features intended to ensure easy handling combined with a high level of economy and functionality »
An extremely compact design has been achieved thanks to the drive motor that is fully integrated into the housing. Applicable with and without cold wire unit and with oscillation (OSC) and arc voltage control (AVC).

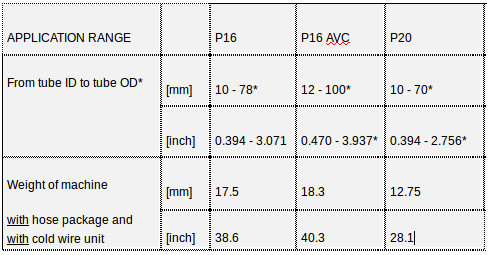

Data Sheet:
TX 38P |
{Download} |
|
P16, P16 AVC, P20 |
{Download} |
