Bevelling Machines With Automatic Feeding



Art. 900

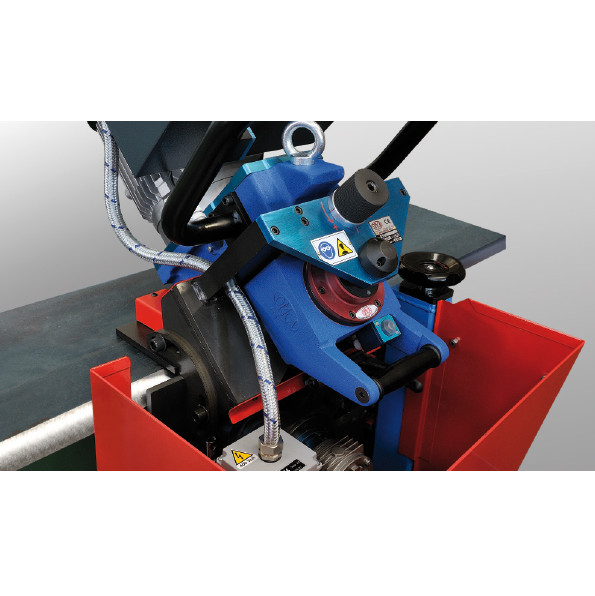

Description :

  • Frame in steel and aluminum casting.
  • Hardened work plate with sliding rollers.
  • Motorized feeding with two polyurethane wheels (90 shore).
  • Trolley complete with height adjustment devices, chips protection, chip box, and swivel wheels with brake.
  • Possibility to work with the trolley lifted in the presence of irregular floor. Possibility to work also without trolley.

Performances :

ART. 900
Motor power Three-phase 230/400 Volt, 4kw, 50/60 Hz, 4 pols

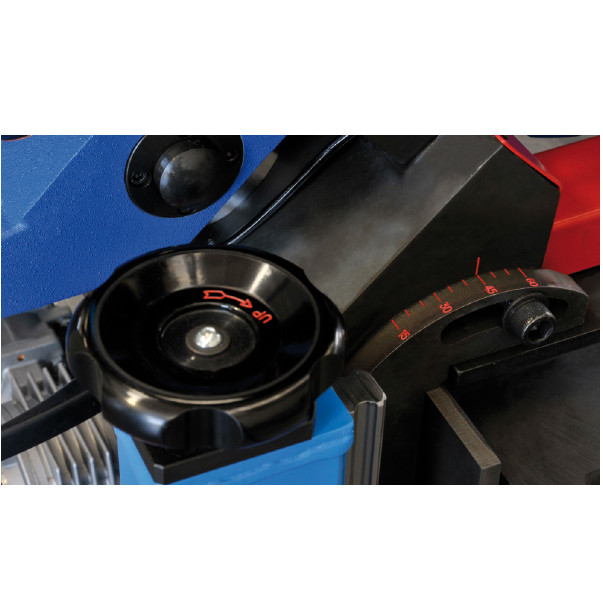

Chamfering adjustment From 5mm to 33mm (50 mm diagonal)
Chamfering angle From 15° to 60°
Plate thickness From 8mm to 50mm
Cutter Ø 63 mm Z 5
Cutter speed 750 RPM
Chamfering speed From 0 to 1 mt/min
Working height 800 mm ÷ 980 mm
Working direction
Dimensions 600 x 650 x h 1600 mm

Application

Steel, stainless steel, cast iron, aluminium, alloy titanium, hardox, super duplex and so on
Weight Kg. 175
Packing dimension 920x820x1580mm - Kg. 205

(*) Different voltage available on request.

Cutter :

Sketch
F00011 Standard
Diameter Ø63 mm
H=40 mm
Ø=22 mm
(1x)
Insert ISO SDHT1204
12,7x12,7
Thickness
4,76mm
5
Material WIDIA
Insert code 02045018
Option Coated
02045018/R

For light alloy
02045018/A

Bevelling Performances :

  MAX ACHIEVABLE CHAMFER AT FIRST STEP

ANGLE α15° α30° α45° α60°
Chamfer lenght L 27  15.5 13.4  15.5
Run depth S 6.7  6.7 6.7 6.7
  MAX ACHIEVABLE CHAMFER

ANGLE α15° α30° α45° α60°
Chamfer lenght L 53.5 56.4 59.6 54.9

Special Versions:

- Plate thickness 8/100 mm and 8/200 mm
- Plate thickness less than 8 mm
- Cutter speed variator
