Bevelling Machines With Automatic Feeding
Art. 920 J Reverse
Description :
- Frame in steel and aluminum casting.
- Hardened work plate with sliding rollers.
- Motorized feeding with four polyurethane wheels.
- Trolley complete with height adjustment devices, chips protection, chip box, and swivel wheels with brake.
- Possibility to work with the trolley lifted in the presence of irregular floor.
Performances :
| ART. 920 J REVERSE | |
|---|---|
| Motor power | Three-phase 230/400 Volt, 4kw, 50/60 Hz, 4 pols |
| Chamfer depth (Z axis) | Max 90 mm |
| Chamfer width ( X axis) | Max 64 mm |
| Chamfering angle | From 0° to 30° |
| Plate thickness | From 8 mm to 100 mm |
| Cutter | Ø 80 mm, Z6, R8 - Optional R6 |
| Cutter speed | From 0 to 900 RPM |
| Chamfering speed | From 0 to 1,2 mt/min |
| Working height | 920 mm ÷ 1110 mm |
| Working direction |  |
| Dimensions | 760 x 750 x h 2100 mm |
| Weight | Kg. 420 |
| Packing dimension | 2150x1150x1100mm - Kg. 455 |
(*) Different voltage available on request.
Cutter :
| Sketch |  Art. C0920 |
| Diameter | Ø80 mm H=50 mm Ø=27 mm (1x) |
| Insert | RCMT1606 Ø16 Thickness 6 mm |
| N° | 6 |
| Material | WIDIA |
| Insert code | J1606 |
| Option | For light alloy J1606/A |

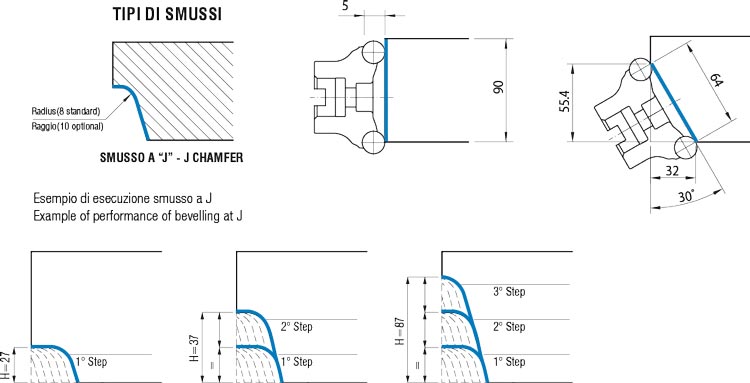

Bevelling Performances :
Special Versions :
- Plate thickness 8/200 mm- Plate thickness less than 8 mm
