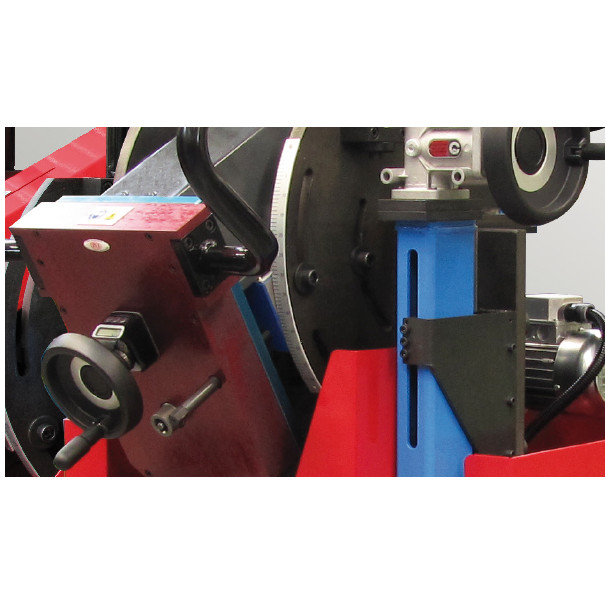

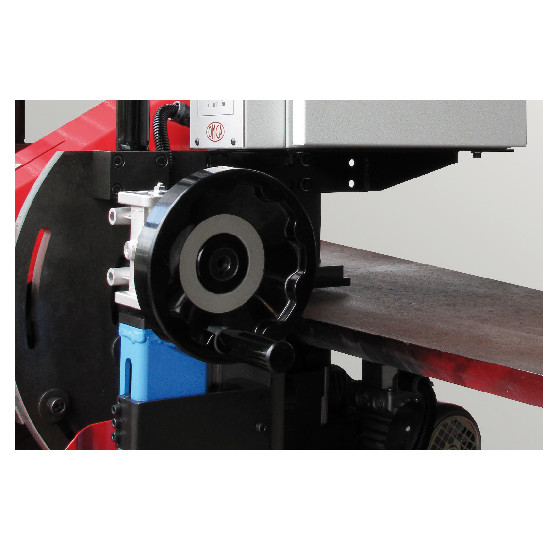

Bevelling Machines With Automatic Feeding



Art. 930 Reverse

Description :

  • Frame in steel and aluminum casting.
  • Hardened work plate with sliding rollers.
  • Motorized feeding with two polyurethane wheels (90 shore).
  • Trolley complete with height adjustment devices, chips protection, chip box, and swivel wheels with brake.
  • Possibility to work with the trolley lifted in the presence of irregular floor. Possibility to work also without trolley.

Performances :

ART. 930 Reverse
Motor power Three-phase 230/400 Volt, 4kw, 50/60 Hz, 4 pols
Chamfering adjustment From 0 mm to 33 mm (53 mm diagonal)
Chamfering angle From 0° to 60°
Plate thickness From 8 mm to 60 mm
Cutter Ø 63 mm - height 40 mm - hole 22 mm
Cutter speed 800 RPM
Chamfering speed from 0 to 1,2 mt/min
Working height 820 mm ÷ 970 mm
Working direction
Dimensions 600 x 600 x h 1550 mm

Application

 Steel, stainless steel, cast iron, aluminium, alloy titanium, hardox, super duplex and so on
Weight Kg. 205
Packing dimension mm 1150x830x1550 h - Kg. 240

(*) Different voltage available on request


Cutter :

Sketch
F00011 Standard
Diameter Ø63 mm
H=40 mm
Ø=22 mm
(1x)
Insert ISO SDHT1204
12,7x12,7
Thickness
4,76mm
N° 5
Material WIDIA
Insert code 02045018
Option Coated
02045018/R

For light alloy
02045018/A

Bevelling Performances :

  MAX ACHIEVABLE CHAMFER AT FIRST STEP

ANGLE α0° α15° α30° α45° α60°
Chamfer lenght L 30 27 15.5  13.4  15.5
Run depth S 2  6.7 6.7 6.7  6
  MAX ACHIEVABLE CHAMFER

ANGLE α0° α15° α30° α45° α60°
Chamfer lenght L 60 53.5 56.4 59.6 54.9

Special Versions :

- Plate thickness 8/100 mm
- Plate thickness less than 8 mm
- Cutter speed variator
