MiniMill 101

*Recommended for: tube facing, tube bevelling, weld removal



The MiniMill 101 is a rugged, fast, portable weld end preparation lathe designed for various tubes and pipes, including stainless steel and other high chromium materials. Our standard machine can be used for pipe sizes of 20 – 74 mm i.d. (0.787” – 2.913”) and comes with a 88 mm cutting head.

Standard working range

APPLICATION RANGE STANDARD LOCKING
25 - 89 mm 25 - 77 mm
0,984 – 3,504” 0,984 – 3,031”

Motor parameters

FEED STROKE POWER FREE SPEED TORQUE
20 mm 0,787" 1,3 Hp 120 Rpm 140 Nm 105 Ft.Lbs

Air use: 55 cfm 1,3 m3/ min Body width: 2,32” 59 mm
Body height: 13,1” 335 mm Body weight: 11,4 Lbs 5,2 kg

Standard set up

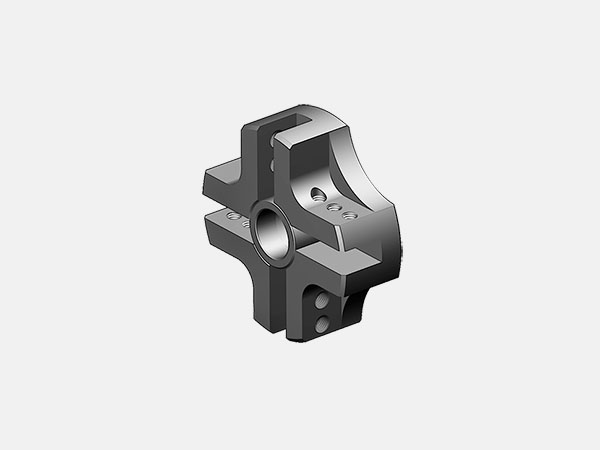

88 mm (3,46”) The popular, medium cutter head, designed to fasten the wide range of cutting inserts.

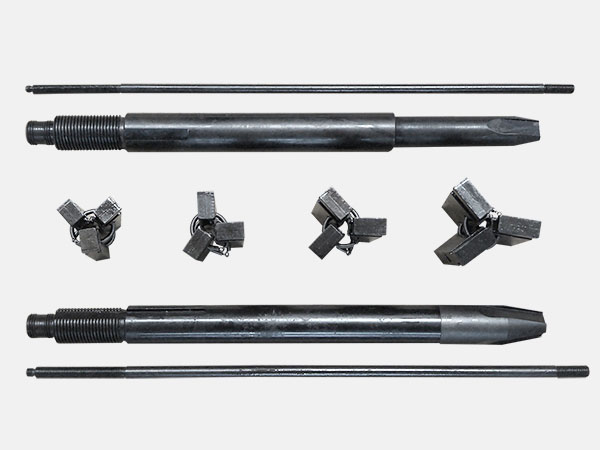

SHAFTS 25 Self-align, heavy duty locking system. Shafts and jaws are longer and wider to ensure maximum clamping force.

Optional working range

APPLICATION RANGE STANDARD LOCKING
10 – 107 mm 10 – 102 mm
0,394 – 4,213” 0,394 – 4,016”

Optional specialized cutter heads

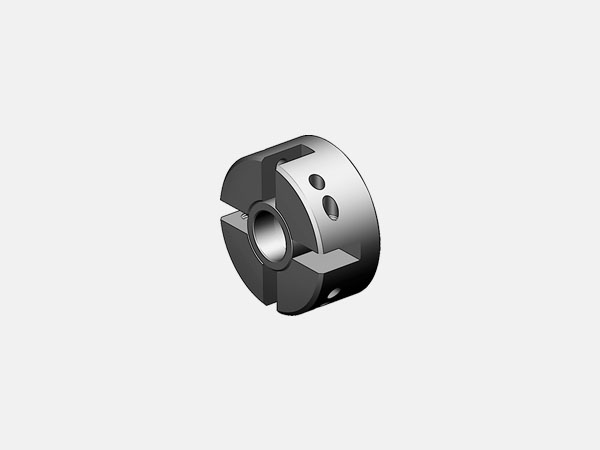

66 mm (2,36”) The smallest cutter head, designed to faster the wide range of cutting inserts.

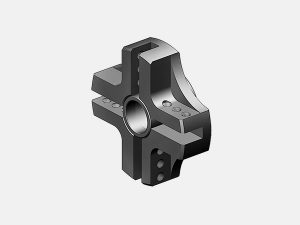

116 MM (4,56”) The popular, large cutter head, designed to fasten the wide range of cutting inserts.

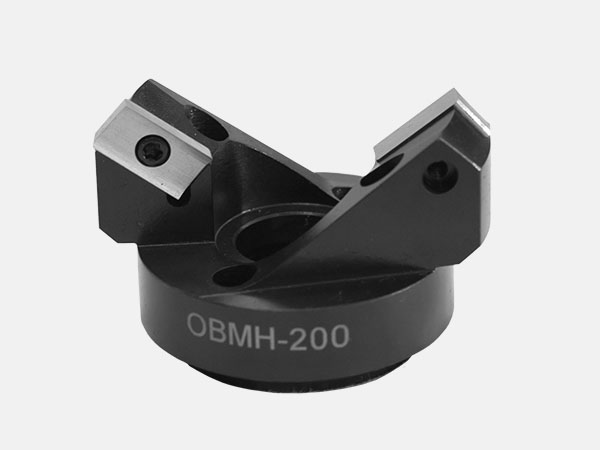

OBMH Head for bevelling tubes without membranes in the boiler water walls.

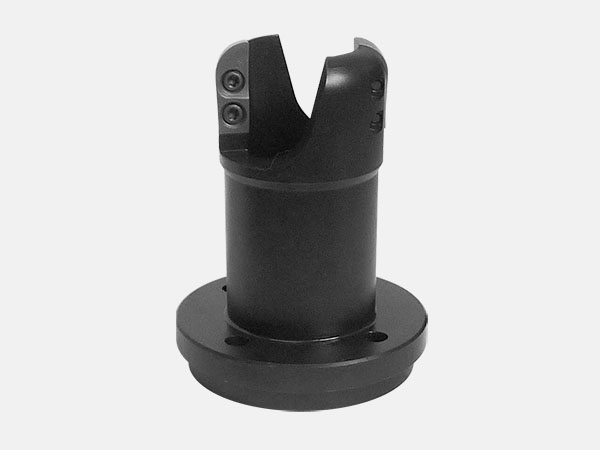

SWROTC Seal weld removal head over tube circumference prior to re-welding the damaged joint without removing the tube.

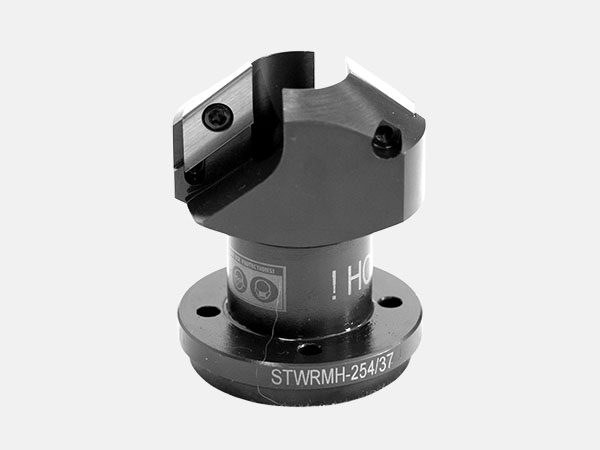

STWRMH Head dedicated for strength weld removal. Heads are easy to align and sized per tube diameter.

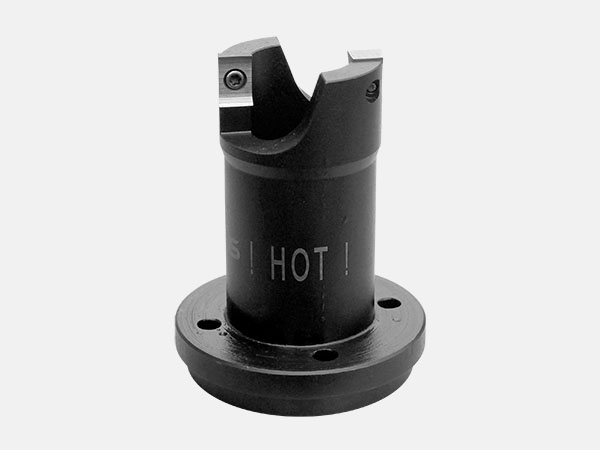

TFMH Tube facing milling head for tubes made of any type of material. Utilizes 6% cobalt inserts.

Optional shafts

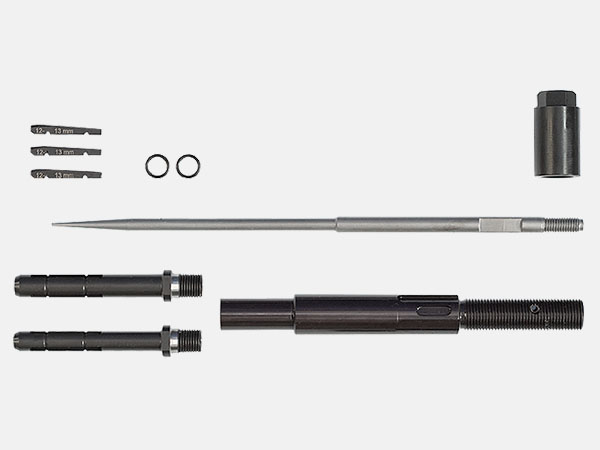

MICROSHAFTA system with interchangeable guide shafts. A complete set covers 10,0 to 15,0 mm ID tubes.

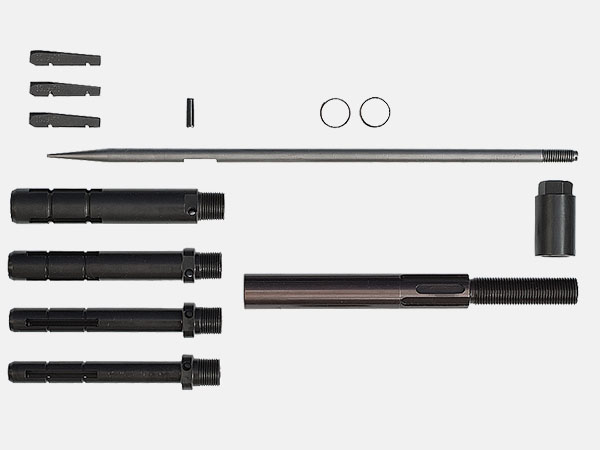

MINISHAFT A system with interchangeable guide shafts. A complete set covers 12,4 to 48,0 mm ID tubes.

Other optional accessories

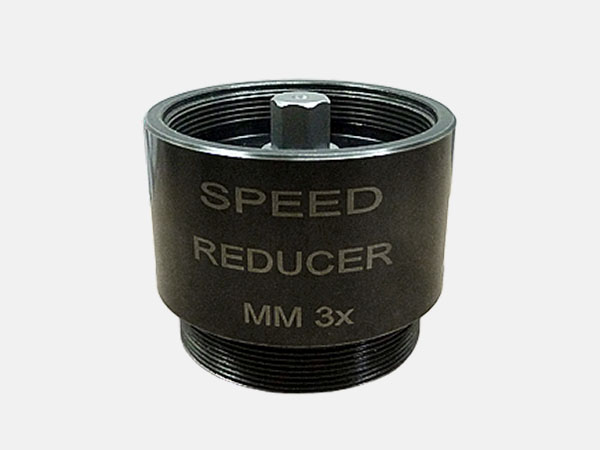

SPEED REDUCEREasy to use gearbox for 3x speed reduction. Increases the torque, enabling the machine to generate a thick chip whilst reducing the cutting time.

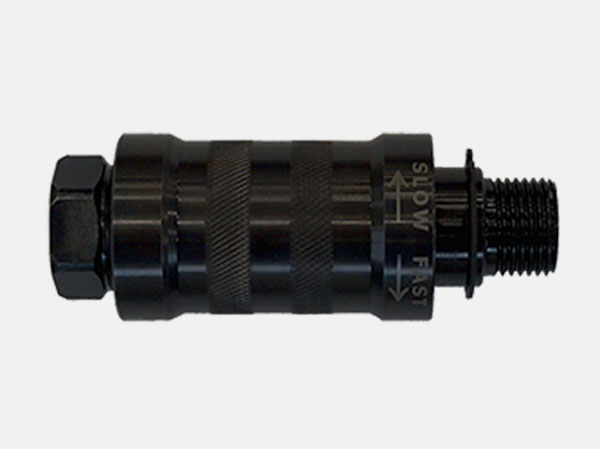

SAV-500 SPEED ADJUSTMENT VALVEThe solution for all pneumatic drove beveling machines. Allows adjusting cutting speed to suit to the machined tube diameter.

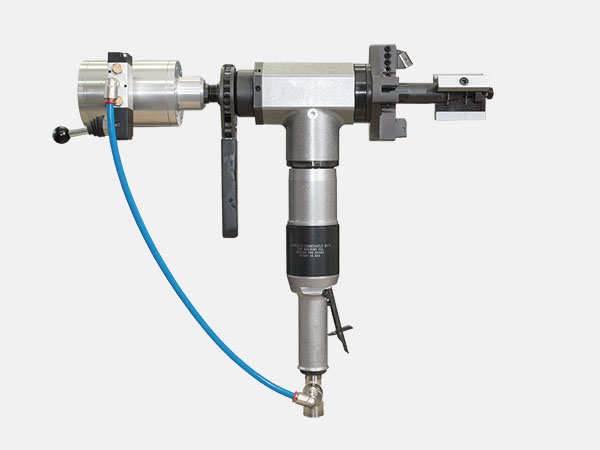

FAST CLAMPING SYSTEM System offers rapid tube to tube cycle time, increased productivity (up to 4x) with little operator fatigue. Ideal for large amount of end preps.
