SmartMill-7


Most powerful machine within this size range on the market today. Utilizes a powerful 2.2 kW (3 HP) pneumatic motor that is entirely engineered and manufactured by KRAIS. SmartMill-7 has a unique construction that has been specifically designed for the largest end prep systems.


• Self-centering 40 mm (1,57”) one piece locking
shaft.
• Only one mandrel and 6 Jaw sets needed to
cover machines entire range.
• Wide clamps produce superior clamping force
for chatter free end preps.
• Fully portable for on-site and Fab-shop work.

Standard working range


APPLICATION RANGE LOCKING RANGE
40 - 219 mm 40 - 203,5 mm
1,574 - 8,622” 1,574 - 8,012””

Motor parameters


FEED STROKE POWER FREE SPEED TORQUE
50 mm 2” 39 Rpm 3,0 hp 930 Nm 697 Ft.Lbs
Air use: 75 cfm 2,2 m3/min Air pressure: 90 PSI 6,2 Bar
Body weight: 46 Lbs 21 kg Body dimensions 22 x 9,25 x 7,48” 560 x 235 x 190 mm

Advantages of SmartMill-7


Unique shaft design40 mm (1,57”) shaft, assures rigidity when machining heavy wall pipe. Only 6 set of jaws needed to cover the full locking range.

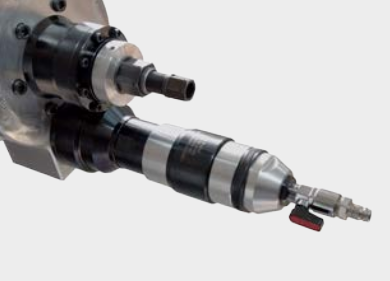

Powerful motor unitSmartMill-7 is powered by powerful and efficient drives dedicated for our Lathe series beveling machines. 39 rpm and 930 Nm (697 Ft.Lbs) torque on the cutter blade is a standard feature.
Heavy duty handleMachine is equipped with a solid and convenient aluminium handle.
Lightweight and portableThe innovative design made it possible to produce lightweight and portable machine. Small weight of SmartMill-7 allows for fatigue-free operation in all conditions.
