PipeMill



PipeMill is a pneumatic powered tube facing, bevelling and weld removal machine. The PipeMill is a rugged, fast and powerful weld end preparation lathe for various pipes including stainless steel and other exotic alloys. A standard machine is equipped with a locking system to cover sizes of 50,8 to 172 mm ID (2.000” to 6.800”) with a 250 mm cutting head.


Standard working range

APPLICATION RANGE STANDARD LOCKING
50 – 279 mm 50 – 319 mm
1,968 – 10,984” 1,968 – 12,559””


Motor parameters

FEED STROKE POWER FREE SPEED TORQUE
50 mm 1,968” 1,3 hp Depends on gear
Air use: 70 cfm 2,2
m3/min		 Body width: 5,7” 145 mm
Body height: 21,5” 550 mm Body weight: 52,9 Lbs 24 kg


Available gearbox configurations

This tool comes with one chosen gearbox as a standard. Torque/speed depends on gear configuration:

GEARBOX 15 15 RPM 2544 Nm 1908 Ft.Lbs
GEARBOX 20 20 RPM 1883 Nm 1415 Ft.Lbs
GEARBOX 28 28 RPM 1290 Nm 969 Ft.Lbs
GEARBOX 37 37 RPM 971 Nm 730 Ft.Lbs


Optional working range

APPLICATION RANGE STANDARD LOCKING
50 – 319 mm 50 – 319 mm
1,968 – 12,559”” 1,968 – 12,559””

Standard set up

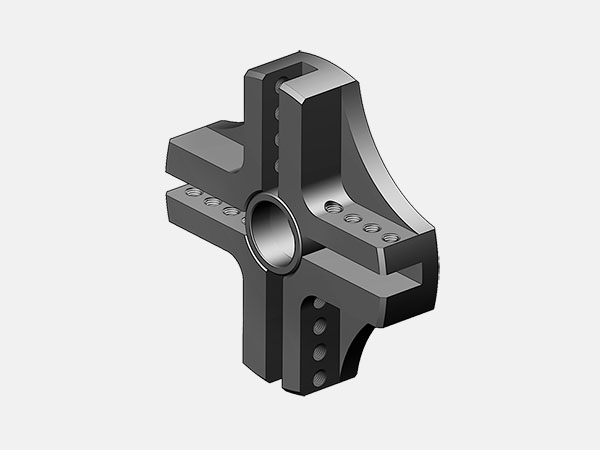

250 MM (9,8”)

Cutter head special for the largest machines. Very rigid. Designed to fasten the wide range of cutting inserts.

Example tool application

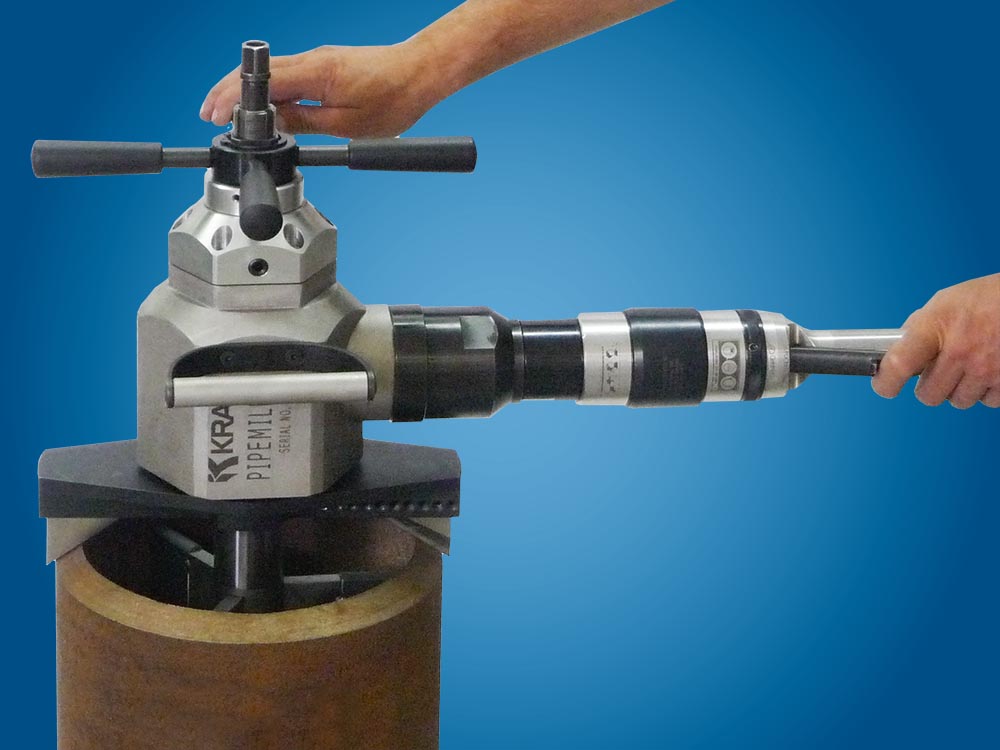

PIPE 10″
SCHEDULE 120

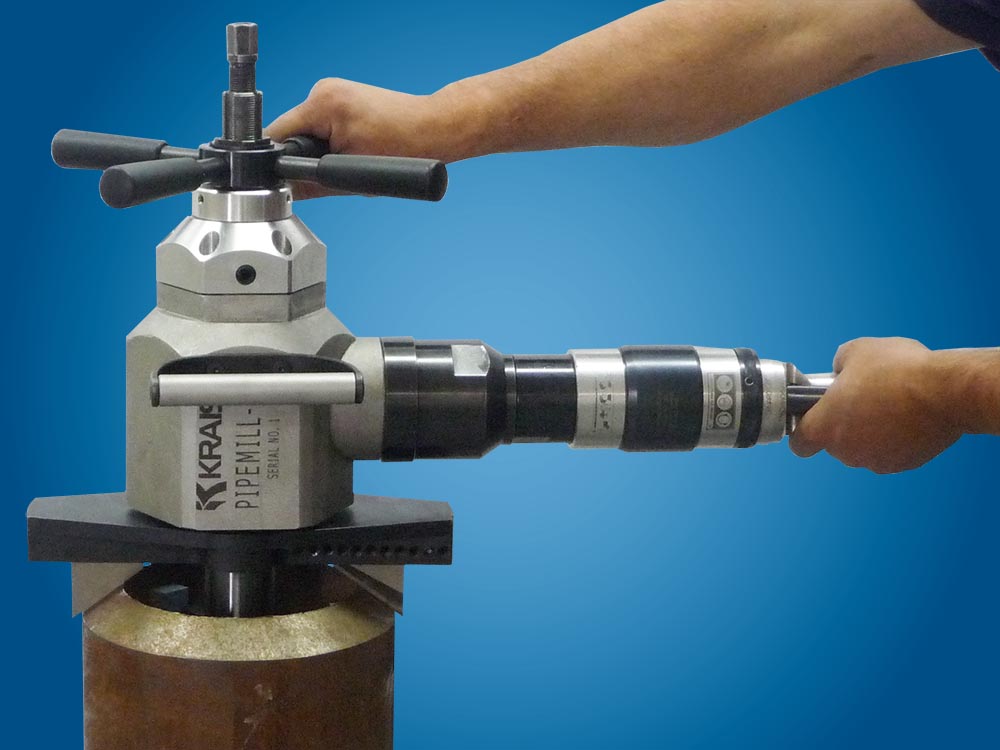

PIPE 8″
SCHEDULE 160
