ARC (MMA) Inverters

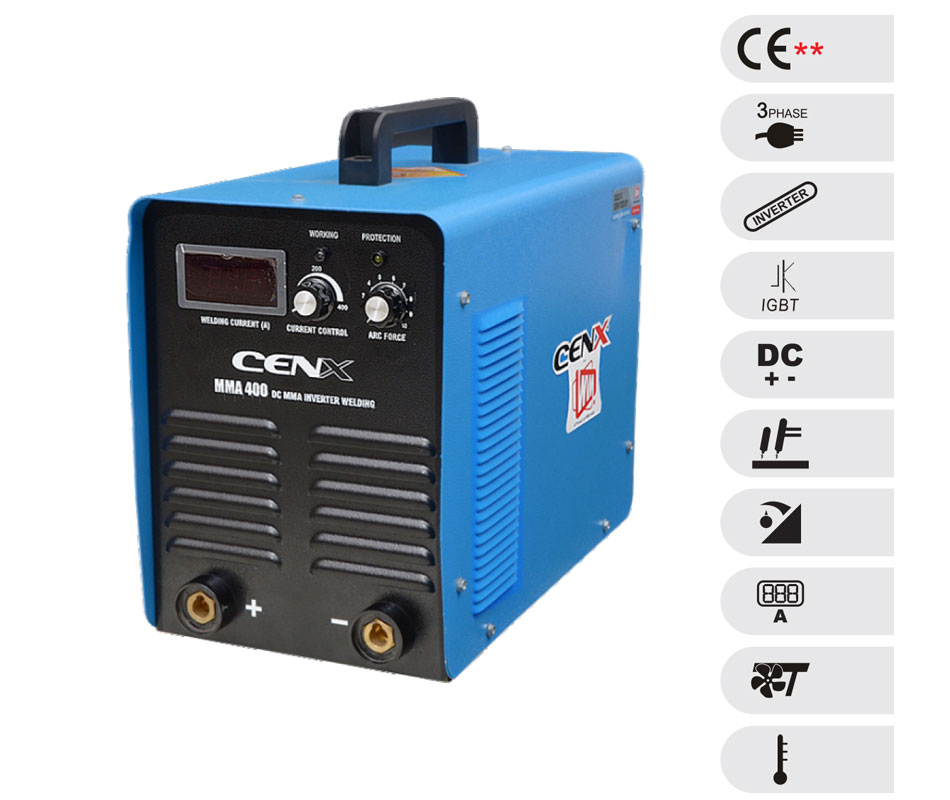

Economy Range Professional - Model: MMA 400

Technical Specification:

Technical Specifications 400
Input Voltage (V) 415 +/- 15%
Frequency (Hz) 50/60
Rated Input Current (A) 32
No Load Voltage (V) 70
Output Current Range (A) 10 - 310
Output Voltage (V) 28.2
Duty Cycle (%) @ 40 Degree C 60
Efficiency (%) 95
Digital Display Yes
Power Factor 0.9
Insulation Class H
Protection Class IP21S
Weight (Kgs.) 13.5
Dimension (mm) 435x 170 x 335
Usable Electrode - MS 6013 - (mm) 1.6 to 4.0
Product Reference MMA310
Product Code YK400

Features :


  • Light and Compact
  • Energy Efficient
  • Stable Arc
  • Deep Penetration
  • Over Voltage and Over Current protection
  • Suitable to weld all kinds of basic electrodes
  • Some models suitable for Cellulose Electrode
  • Suitable for Scratch TIG

Welds :


  • Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
