ARC (MMA) Inverters

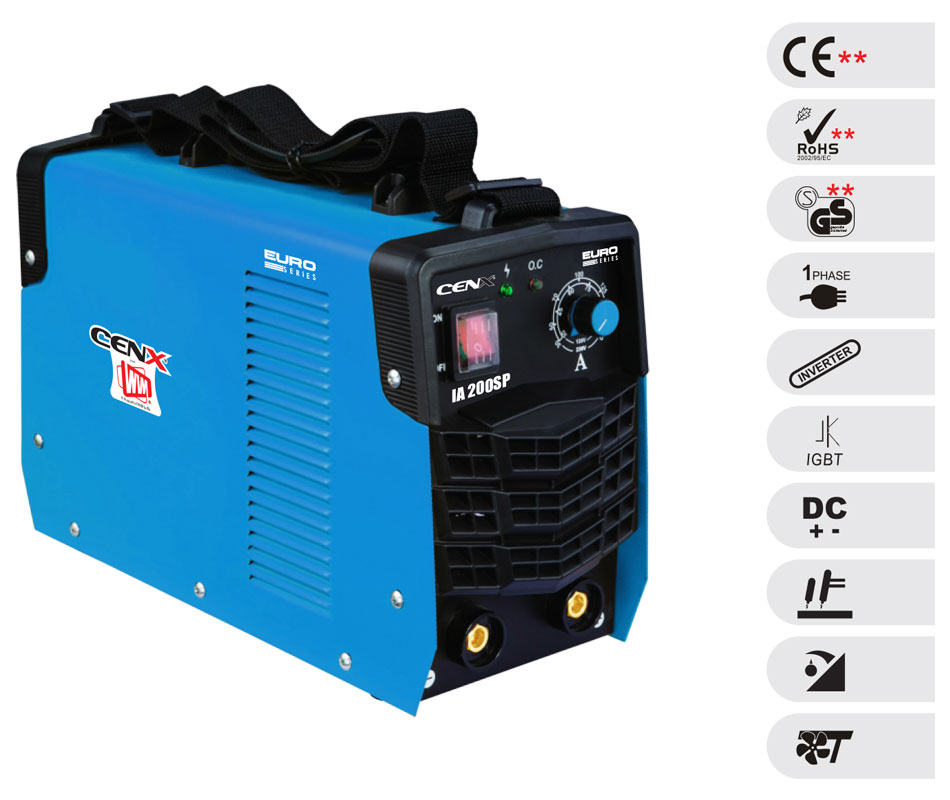

IA Range Medium Industrial - Model: IA 200SP

Technical Specification:

Technical Specifications IA 200SP
Input Voltage (V) 230 +/- 15%
Frequency (Hz) 50/60
Rated Input Current (A) 32
No Load Voltage (V) 70
Output Current Range (A) 10 - 200
No Load Current 5
Duty Cycle (%) 60
Efficiency (%) 95
Power Factor 0.93
Insulation Class H
Protection Class IP21S
Weight (Kgs.) 10.0
Dimension (mm) 480 X 250 X 350
Usable Electrode - MS 7018 - (mm) 4.0
Product Reference MMA200IS3
Product Code 161019

Features :


  • Heavy Duty
  • Light and Compact
  • Energy Efficient
  • Stable Arc
  • Deep Penetration
  • Over Voltage and Over Current protection
  • Suitable to weld all kinds of basic electrodes
  • Suitable for Scratch TIG

Welds :


  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
