BLINDÉ (BLINDADO)

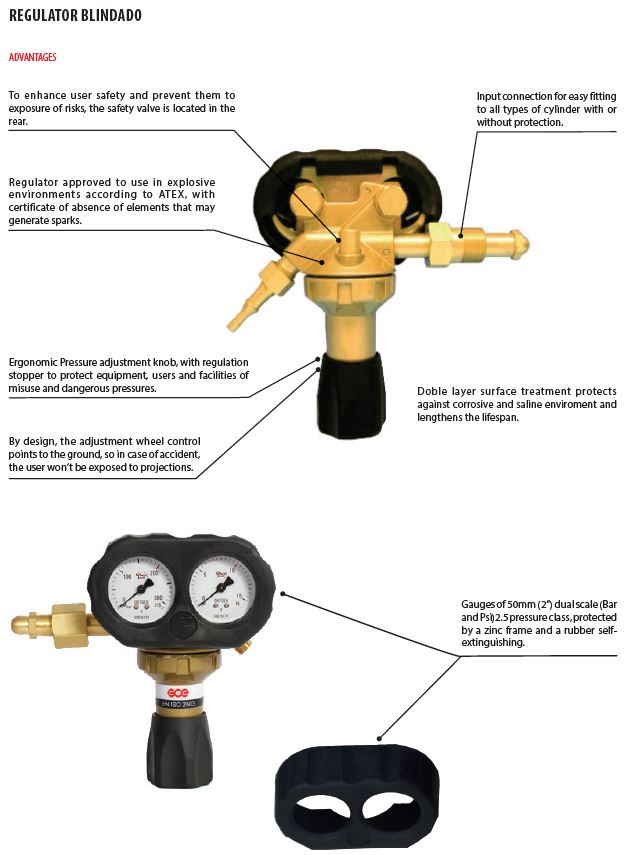

FEATURES, ADVANTAGES, BENEFITS

ROBUST
Regulator for heavy duty applications ideal for users that transport cylinders and equipment to the work area or working in difficult conditions. Robust, high resistance body in combination with manometers protected by durable metal case ensure proper functionality and safety in case of a fall or hard treatment.


SAFE
Regulator with Double scale manufactured with ISO2503 standard, this protection of the gauges allows applications with pressure Parameters controlled and without leaking. Safety valve and control are not oriented to the user, protecting the operator of projections in case of accident.


ECONOMIC
It is greatest protection reduces costly maintenance and repairs. It avoids the risk of leaking explosive gas, asphyxiating, oxidizing, dangerous and expensive.



TECHNICAL DATA


Gas:

O2Inert gas

Acetylene Propane
Body: Brass forged
Bonnet: Zn/Al alloy Die Cast
Stems, nuts and fittings: Brass
Diaphragm: EPDM NBR
Seat sealing: PA CR
Inlet/Outlet connection: Gas specific connection
Maximal inlet pressure: 200 or 300bar 25bar 25bar
Outlet pressure range:

0-10bar



1,5bar 4bar
Temperature range: from -20°C to 60°C
Weight: Approx. according to gas variant: 1,9 kg
ISO 2503:

ü

ü

ü

Technical Drawings
