Gas Control Panels

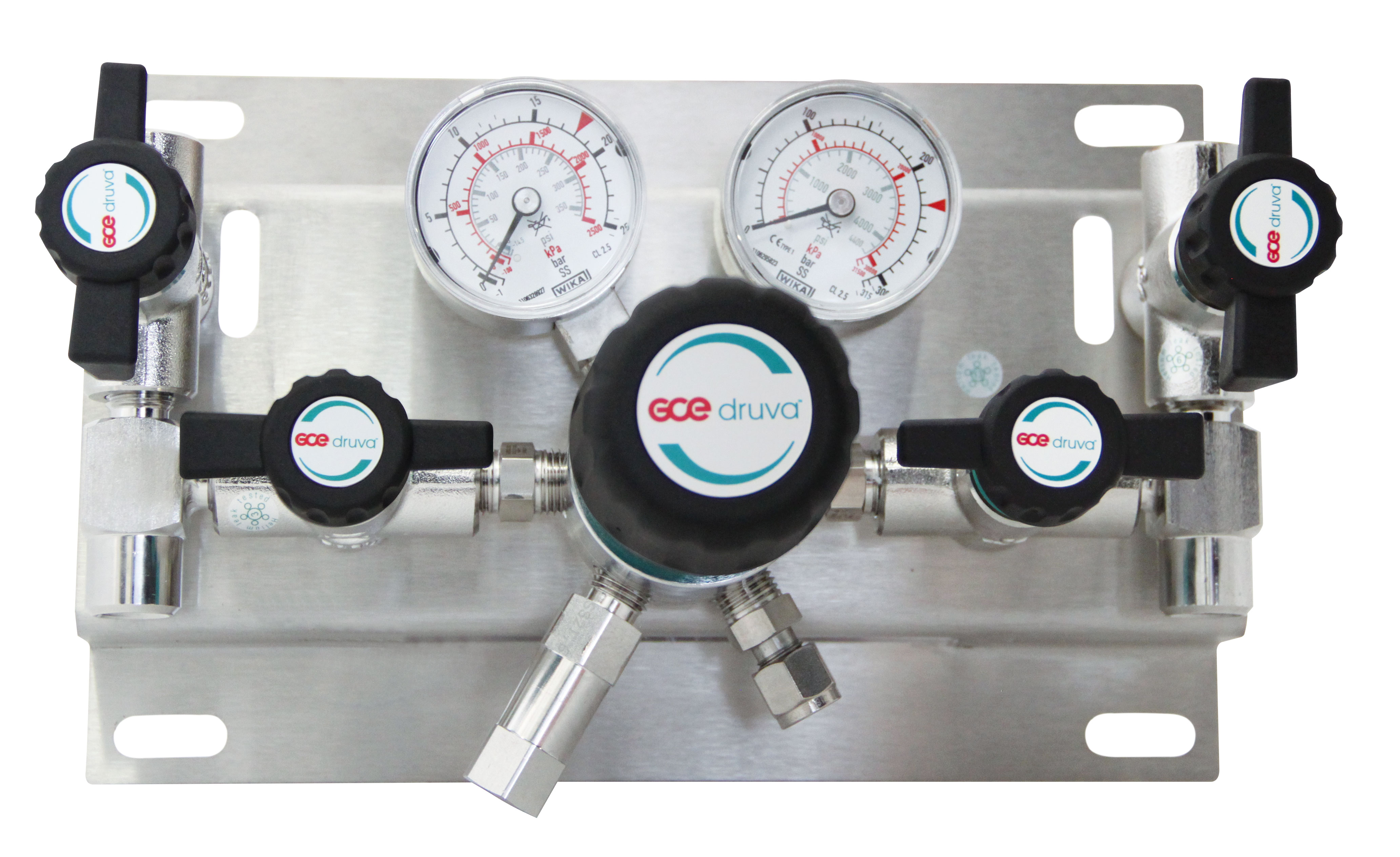

BMD 500 1-STAGE, MANUAL 200 BAR

Group Number: 4500

Manual change-over gas supply manifold for non-corrosive gases and mixtures up to grade 6.0. For the connection of 2×1 cylinder with a maximum filling pressure of 200 bar. Diaphragm type regulator and isolation valve.

Continuous gas supply during cylinder change
For wall mounting or gas cylinder cabinet mounting.
For inert, reactive, flammable and oxidizing gases and gas mixtures
Excellent and accurate Pressure control
Designed to minimize contamination
Low internal volume (no dead-space)
Ergonomical and functional design
Designed for easy installation
Long service life and easy to maintain
Suitable for ECD applications
Modular: Extendable - 2×1, 3×1, 4×1 cylinders
BAM-tested for Oxygen use

TYPE	DESIGN
30- BASIC	Shut-off isolation valve, 1/4''NPTF or 6 mm compression fitting
32 - PROCESS GAS PURGING	Metal diaphragm valves (inlet and purge outlet) with 90° shut-off function

Regulator Type	High Purity Manifold regulator
Max Inlet Pressure	230 bar / 3335 psi
Max Outlet Pressure	14 = 1 - 14 bar (15 - 200 psi) \| 28 = 2,5 - 28 bar (36 - 365 psi) \| 50 = 2,5 - 50 bar (36 - 425 psi) \| 200 = 10 - 200 bar (145 - 2900 psi)
Body Material Type	Brass, chrome plated or stainless steel
Inlet Connection	N14 = 1/4'' NPTF; M14 = M14x1,5
Outlet Connection	Modular - check datasheet
