Gas Control Panels


BMD 502 SEMI-AUTOM. SWITCH-OVER, 2-STAGE, 200 BAR

Group Number: 4500

Semi-automatic change-over gas supply manifold,dual-stage, for corrosive, non-corrosive, inert, reactive and oxidizing gases and mixtures up to grade 6.0. For the connection of 2x1 cylinder with a maximum filling pressure of 200 bar. Diaphragm type regulator and isolation valve.


Application :

These dual-stage gas control panels are used when a low and constant downstreame pressure is required, independant of the changes in the upstream presssure and when an uninterrupted gas supply with semi-automatic change-over is needed


  • Continous gas supply druing cylinder change
  • For wall mounting or gas cylinder cabinet mounting.
  • For inert, reactive, flammable and oxidizing gases and gas mixtures
  • Excellent and accurate Pressure control
  • Designed to minimize contamination
  • Low internal volume (no dead-space)
  • Ergonomical and functional design
  • Designed for easy installation
  • Long service life and easy to maintain
  • Suitable for ECD applications
  • Modular: Extendable - 2x1, 3x1, 4x1 cylinders
  • BAM-tested for Oxygen use

Type Design
39- BASIC: Basic: Inlet shut-off isolation valve, 1/4''NPTF or 6 mm compression fitting
35-PROCESS GAS PURGE: same as type 39 + additional outlet shut-off valve for process gas purging
34-INERT GAS PURGING: Metal diaphragm  shut-off valves (inlet isolation, process gas and purge gas outlet)  with 90° shut-off function.

Regulator Type High Purity Manifold regulator
Max Inlet Pressure 230 bar /3300 psi

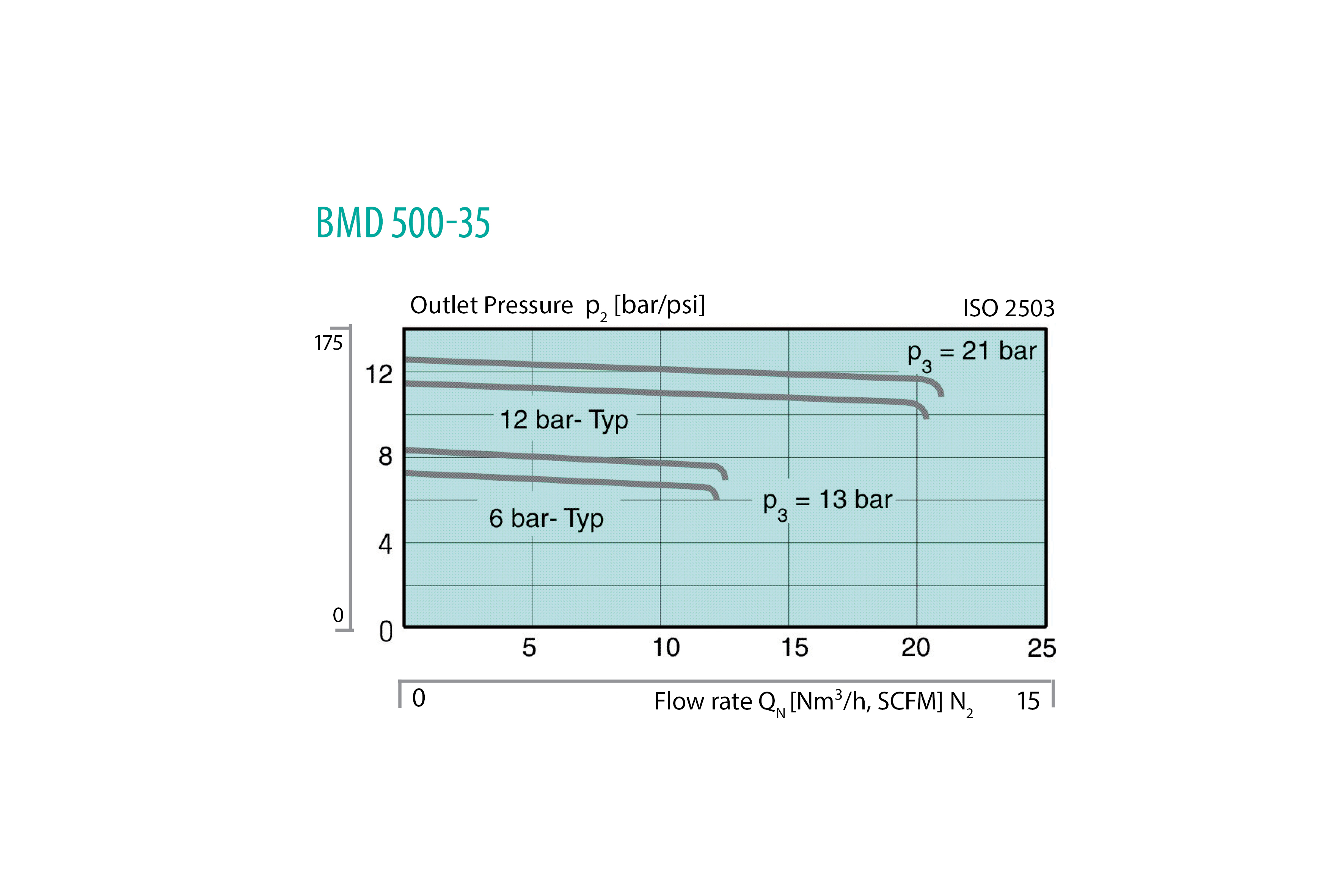

Max Outlet Pressure 3 = 0 . 2 - 3 bar/ 3 - 45 psi 6 = 0 . 5- 6 bar/ 7 - 85 psi 10 = 1 - 10 . 5 bar /15 - 150 psi
Body Material Type Brass, chrome plated or stainless steal
Inlet Connection N14 = 1/4'' NPTF M14 = M14x1,5
Outlet Connection Modular - check datasheet
