OUTLET POINTS DINSET

Group Number: 2711

Dinset is classic GCE concept of products for industrial gases service based on premium Dincontrol regulator. They were created with using of huge professional experience in GCE group. They are continuously developed and optimized in accordance with current engineering knowledge. Dinset consists of inlet welding or brazing pipe adaptor (acc. to gas type), inlet ball valve PN40, DIN-line regulator with pressure gauge, flow-gauge or flow-meter and hose nipple. Variants for shielding gases with flow-meter with dosing valve are supplying and indicating exact flow-rate. Components are mounted on L-profile steel wall bracket for safety installation. Functionality and quality of all components can be easy checked due to open design. Oxygen variant as well as acetylene and propane variants are prepared for optional installation of GCE flashback arrestors.

TECHNICAL DATA

Regulator body and bonnet: Brass
Diaphragm: EPDM, NBR
Seat sealing: PA, Chloroprene
Seat sealing: PA, Chloroprene
Connectors & fittings: Brass
Wall bracket: Steel Zn-coated
Maximal inlet pressure: 30 bar Oxygen
Maximal inlet pressure: 40 bar Other gases
Temperature range: from -20 °C to 60 °C

DINSET SINGLE UNITS

Single units are prepared for all technical gases and can be used for all industrial processes.

Art. Nr. Gas Outlet range Inlet Outlet
14096150 A 1,5 bar G3/8”LH G3/8”LH
14096151 O 10 bar G3/8” G1/4”
14096152 A/Mix 32 l/min Gauge G3/8” G1/4”
14096165 P 2,5 bar G3/8”LH G3/8”LH
14096166 N 10 bar G3/8” G1/4”
14096167 D 10 bar G3/8” G1/4”
14096168 A/Mix 10 bar G3/8” G1/4”
14096169 H/M 10 bar G3/8”LH G3/8”LH
14096172 N2/H2 10 bar G3/8”LH G3/8”LH
14096170 A/H2 32 l/min Gauge G3/8” G3/8”LH
14096171 N2/H2 50 l/min Gauge G3/8”LH G3/8”LH
0785016 O, D, N, CO2 10 bar G3/8” G3/8”

DINSET FLOW

Single units for shielding gases with flow-meter and dosing valve are giving and showing exact flow-rate.


Art. Nr. Gas Outlet range Inlet Outlet
14096173 N2/H2 50 l/min Flow G3/8”LH G3/8”LH
14096163 A/Mix 30 l/min Flow G3/8” G1/4”
14096164 A/Mix 15 l/min Flow G3/8” G1/4”
0785017 A/Mix 30 l/min Flow G3/8” G3/8”

DINSET DOUBLE UNITS

Double units are useful for oxy-fuel applications as well as for arc welding and plasma applications including root shielding. For other variants please ask your GCE partner.


Art. Nr. Gas Outlet range Inlet Outlet
14096153 O - A see single units G3/8” G1/4”, G3/8”LH
14096154 O - P see single units G3/8” G1/4”, G3/8”LH
14096155 O - A see single units G3/8” 2× G1/4”
14096156 A - A see single units G3/8” 2× G1/4”
0785015 O - A see single units G3/8” G3/8”, G3/8”LH

DINSET TRIPLE UNITS


Art. Nr. Gas Outlet range Inlet Outlet
14096157 A - O - A see single units G3/8” G1/4”, G1/4”, G3/8”LH
14096158 O - O - A see single units G3/8” G1/4”, G1/4”, G3/8”LH
14096159 O - O - P see single units G3/8” G1/4”, G1/4”, G3/8”LH
14096160 O - O - A see single units G3/8” 3× G1/4”
14096161 O - A - A see single units G3/8” 3× G1/4”
14096162 A - A - A see single units G3/8” 3× G1/4”

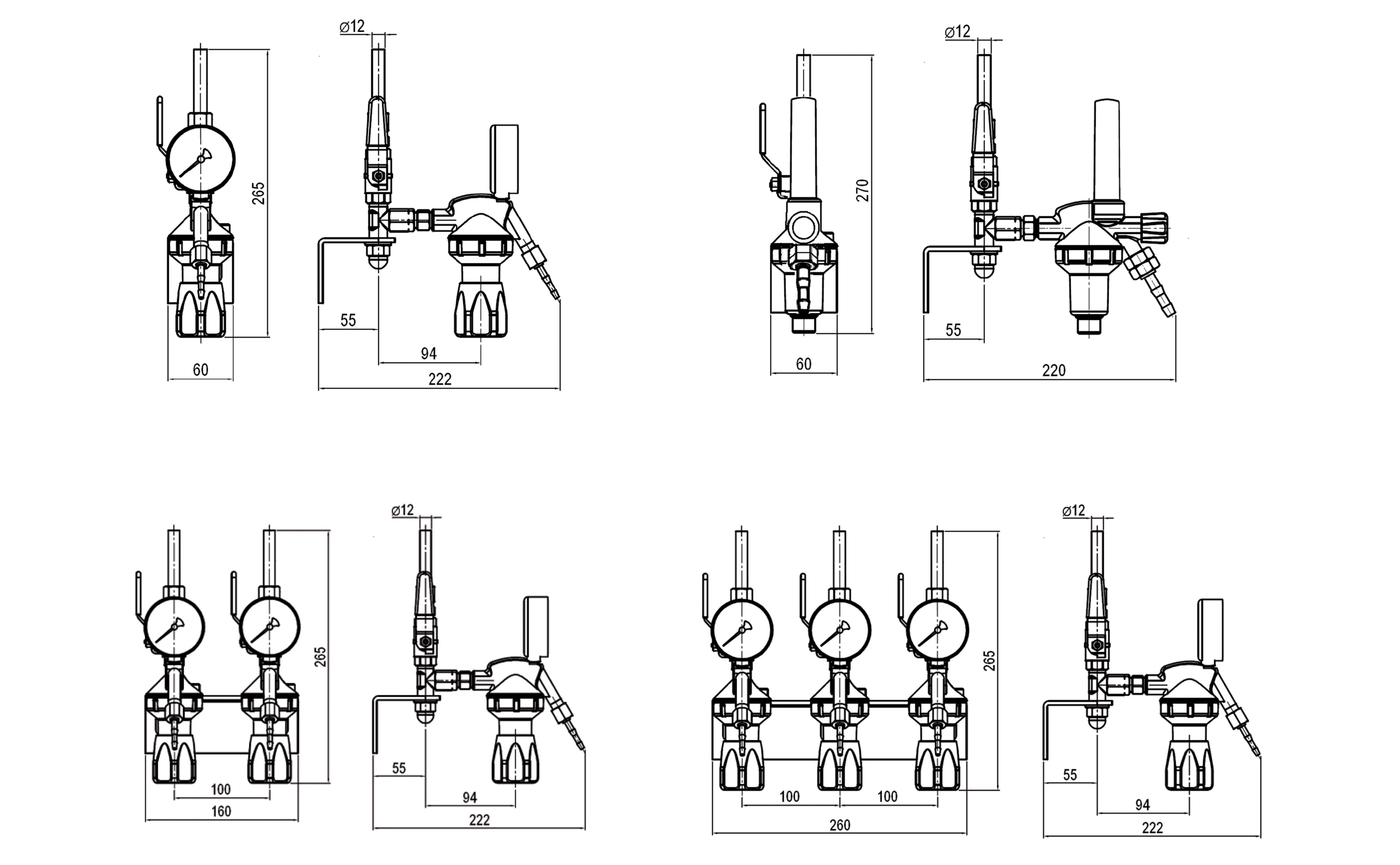

Technical Drawings
