High Pressure Manifold Regulators

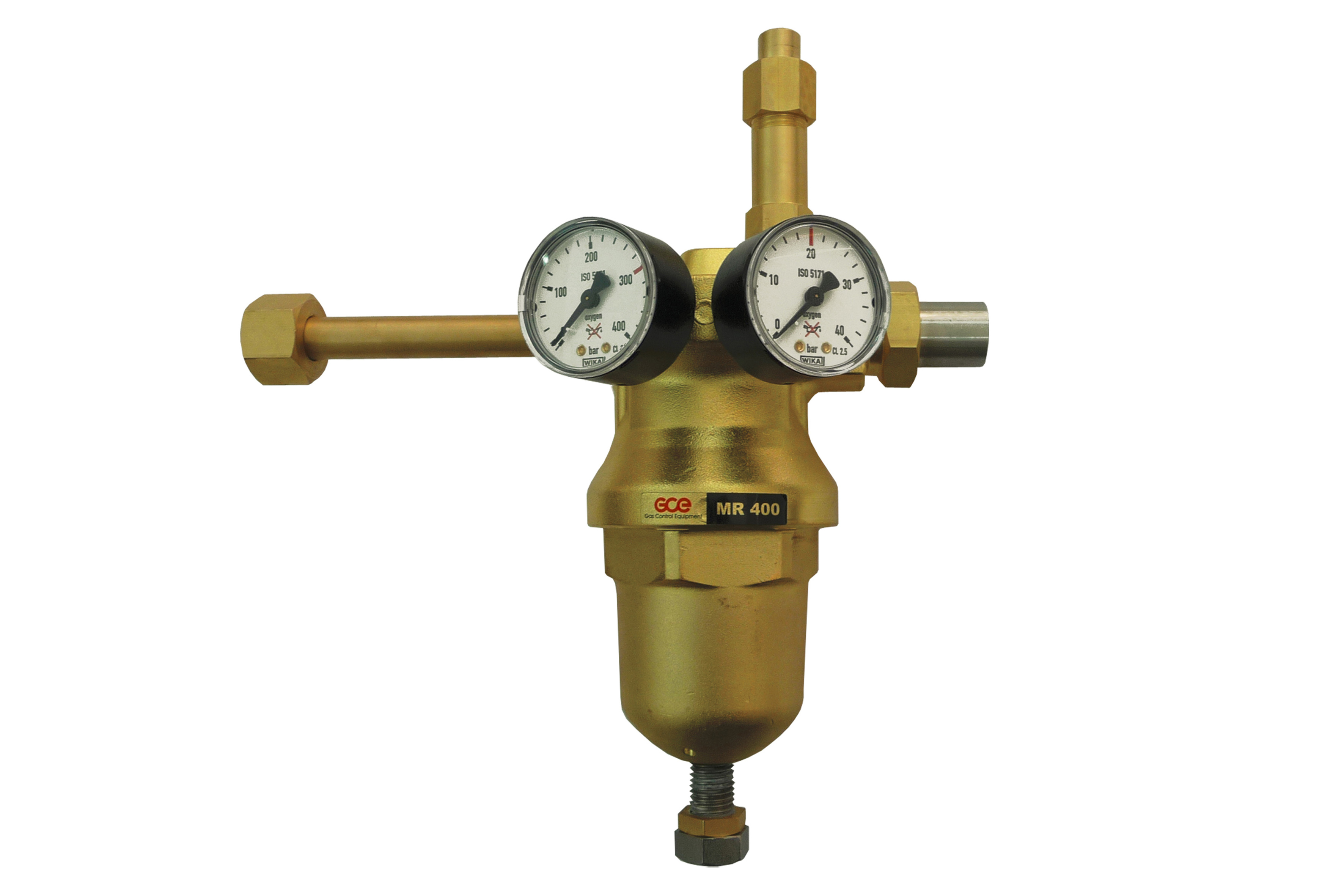

MR400

Group Number: 2721

• MR400 is high pressure high flow regulator for industrial applications
• Conforming to ISO 7291
• High compressed gas service (O, D, N, CO₂, M, H) up to 600Nm³/h and up to 300 bar inlet pressure
• 180° connectors for direct in-line mounting as manifold regulator
• Integrated inlet filter ensures reliable function of the regulator even with old or dirty upstream pipeworks
• Contains integrated pressure relief valve
• It can be used in many applications where is requested high-flow outlet with constant delivery pressure
• Typical examples: Oxy-fuel cutting and other various oxy-fuel processes, laser process gas service, arc welding shielding gas pressure stabilizing, inertisation, etc

TECHNICAL DATA

Bodies and bonnet material:	Brass
Diaphragm material:	Butyl, NBR
Seat sealing:	PA
Inlet filter:	Bronze
Connectors & fittings:	Brass, Stainless steel
Inlet connection:	DIN477, other variants on request
Outlet connection:	G1/2“
Maximal inlet pressure for oxygen:	300 bar
Outlet pressure range:	0-20 bar
Temperature range:	from -20°C to 60°C
Maximal flow rate:	612 Nm3/h, Nitrogen
Nominal flow rate:	400 Nm3/h, Nitrogen
Coefficient „i“:	0,026
Coefficient „R“:	0,159
Weight:	5,1 kg

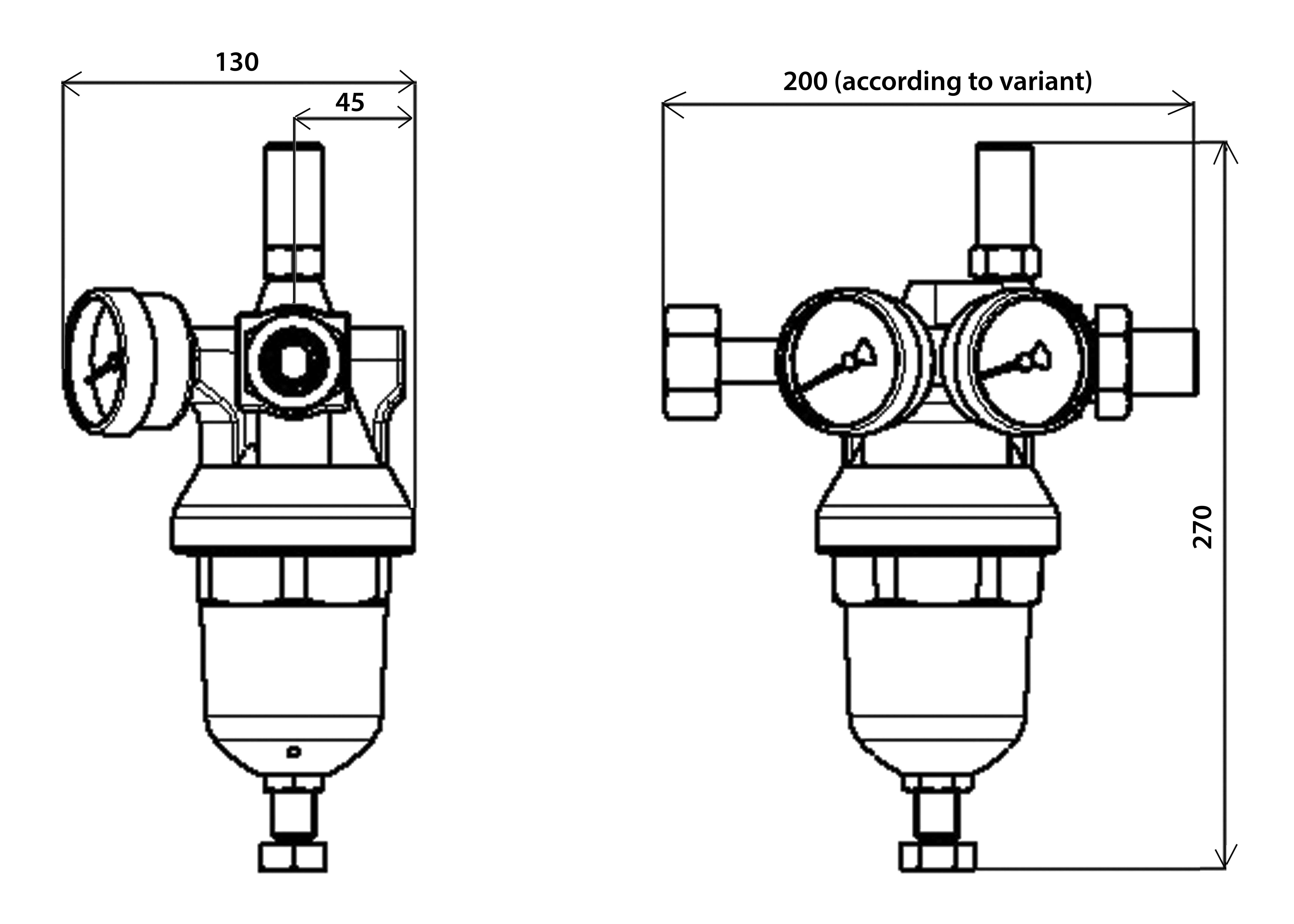

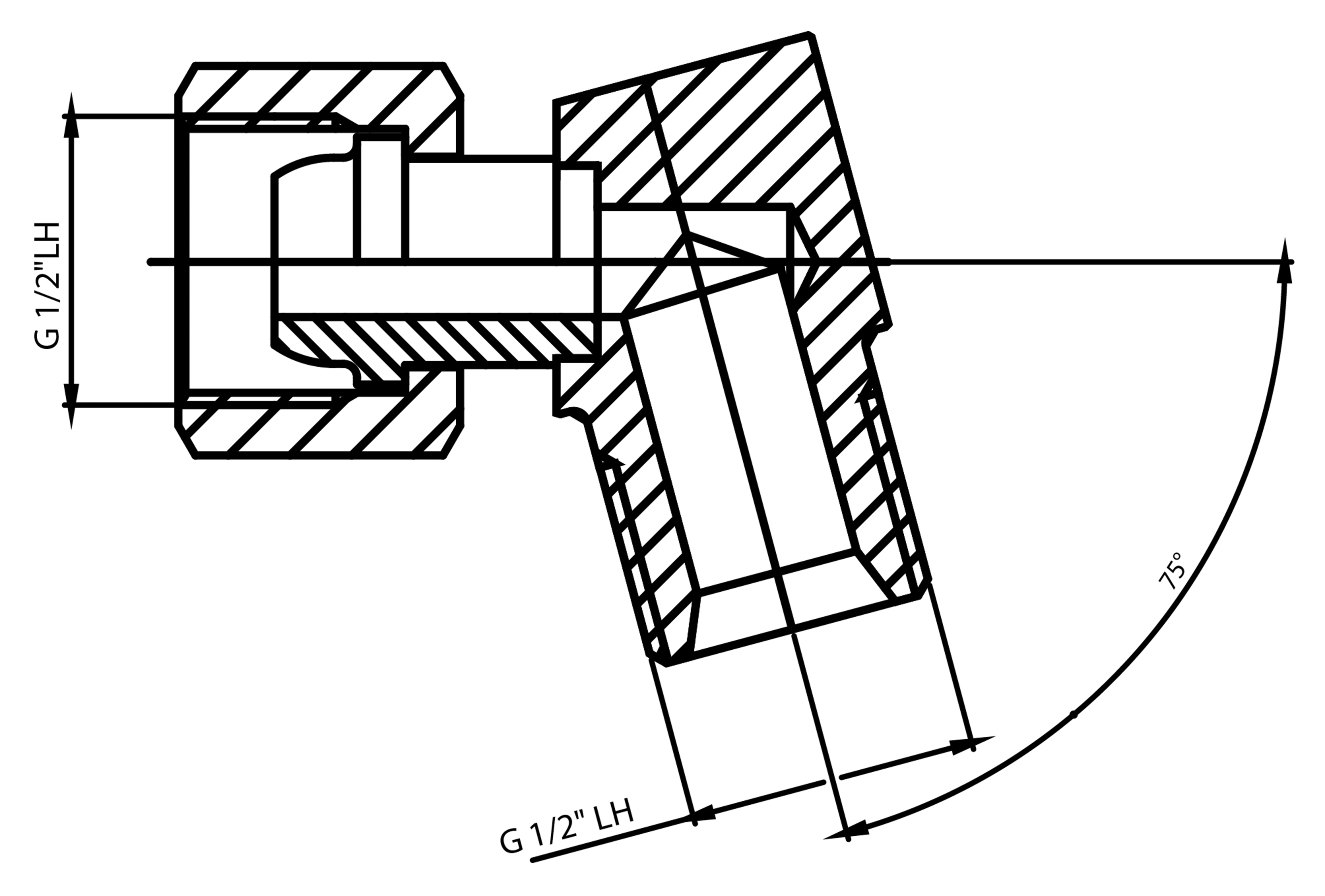

Technical Drawings
