High Pressure Manifolds

SE LINE HEADERS

Group Number: 2731

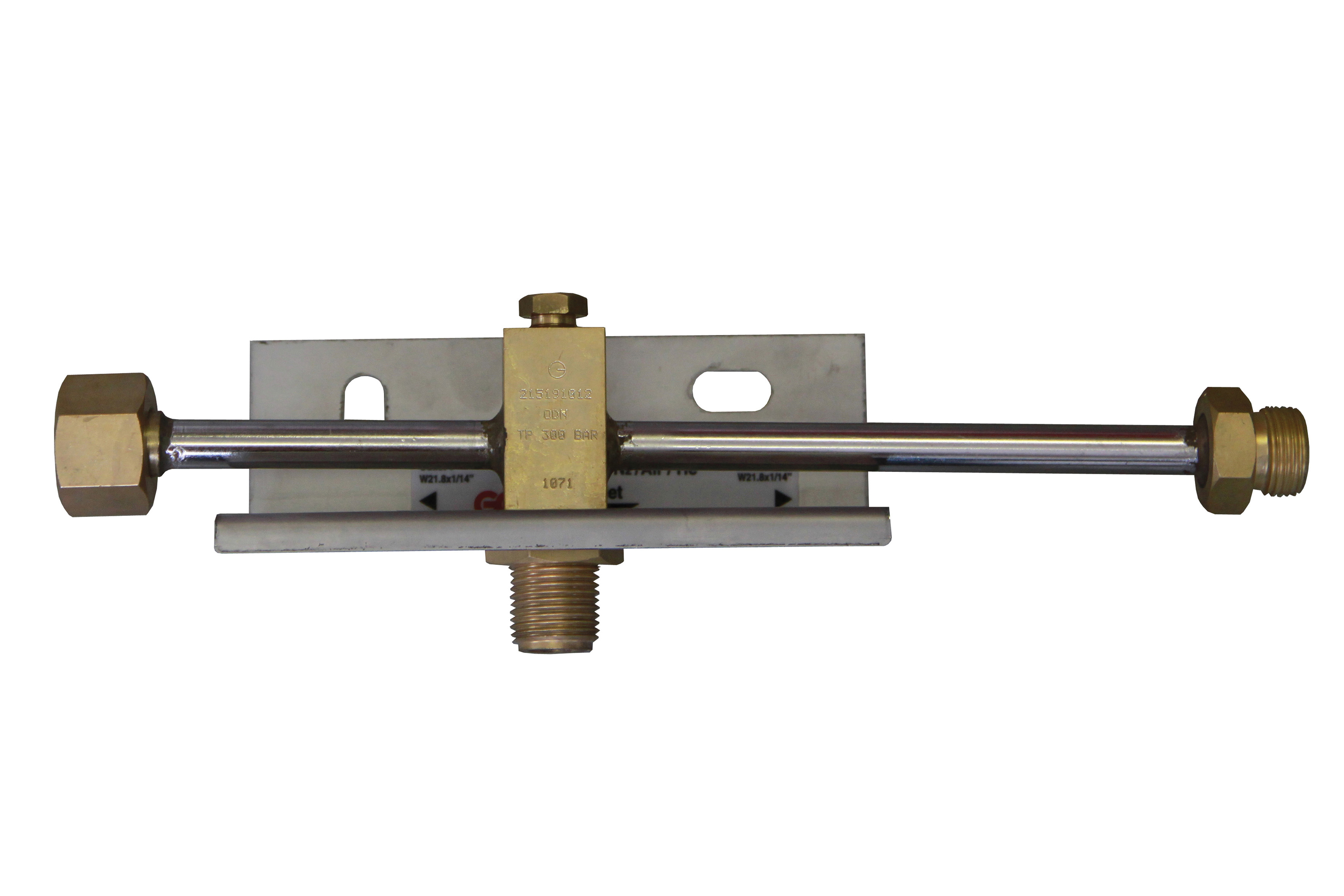

High pressure manifold extension unit. SE Line Headers contain collecting tubes in adjustable positions. The axial distance between tube and wall bracket is changeable. This enables SE Line application for both, M70 Line and M400 Line manifolds. The tube as well as wall bracket are made of stainless steel. Connection blocks are made of brass. One block includes always outlet for pressure gauge or contact gauge optional mounting. SE Line can be used up to 300 bar.


Art. Nr. Description Gas Inlet Outlet
9625640 SE-1 O, D, N, CO2 W21,8×1/14“ W21,8×1/14“
9625690 SE-1 All fuel gases W21,8×1/14“LH W21,8×1/14“LH
9625650 SE-2 O, D, N, CO2 W21,8×1/14“ W21,8×1/14“
9625700 SE-2 All fuel gases W21,8×1/14“LH W21,8×1/14“LH
9625660 SE-4 O, D, N, CO2 W21,8×1/14“ W21,8×1/14“
9625710 SE-4 All fuel gases W21,8×1/14“LH W21,8×1/14“LH

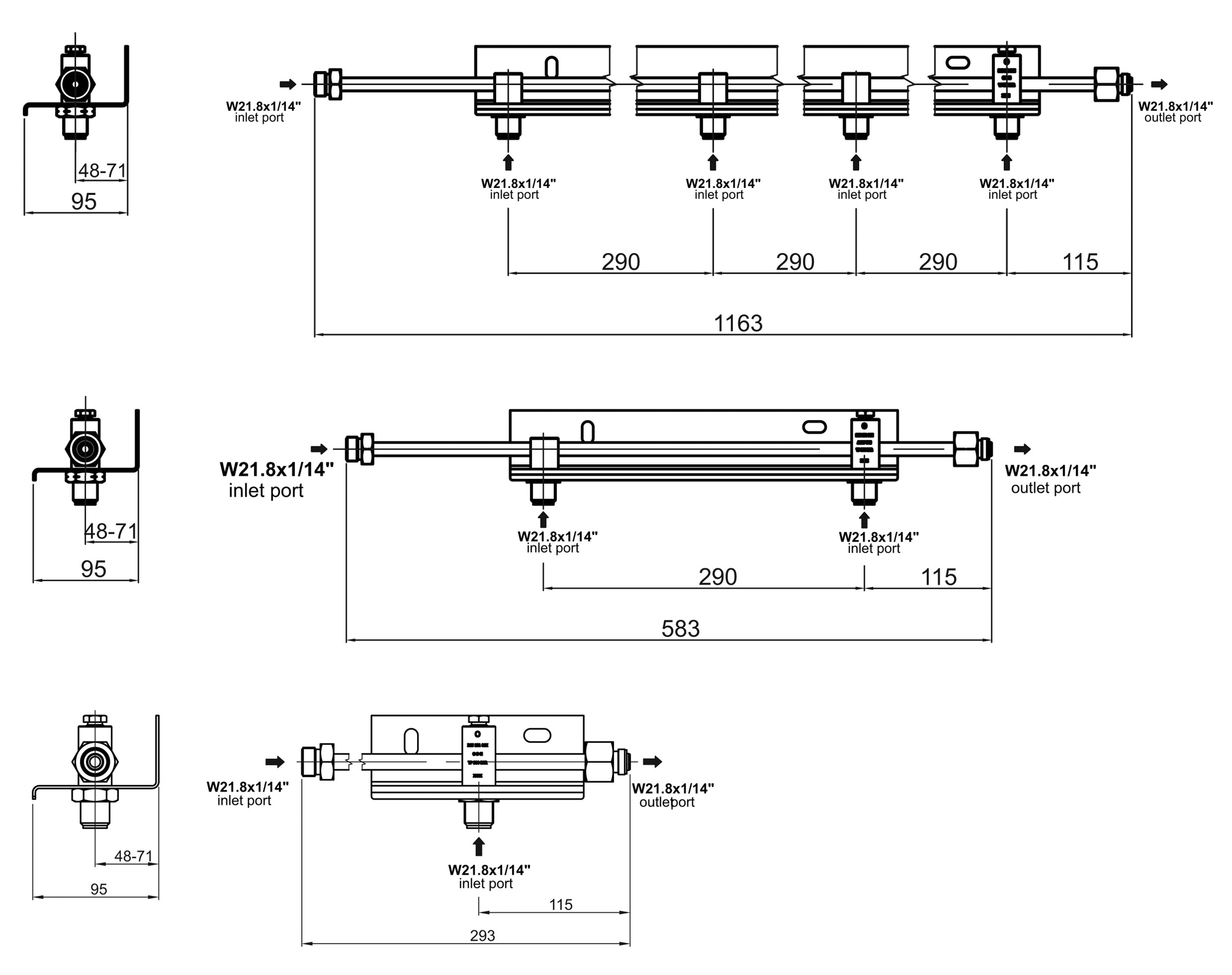

Technical Drawings
