High Pressure Manifolds

MB70

Group Number: 2731

High pressure manifold based on Manyflow unit for middle and low flow rates.
It can be used for oxygen and inert gases. It is designed for cylinder or cylinder bundles service. There are non-return valves at the Manyflow inlets, separated isolating valves and one central inlet shut-off valve. UC 500 regulator contains high pressure and low pressure gauges and pressure relief valve. There is outlet low pressure ball valve downstream regulator. Gas wetted components are made of brass. All components are fixed to the stabilizing stainless steel wall bracket.

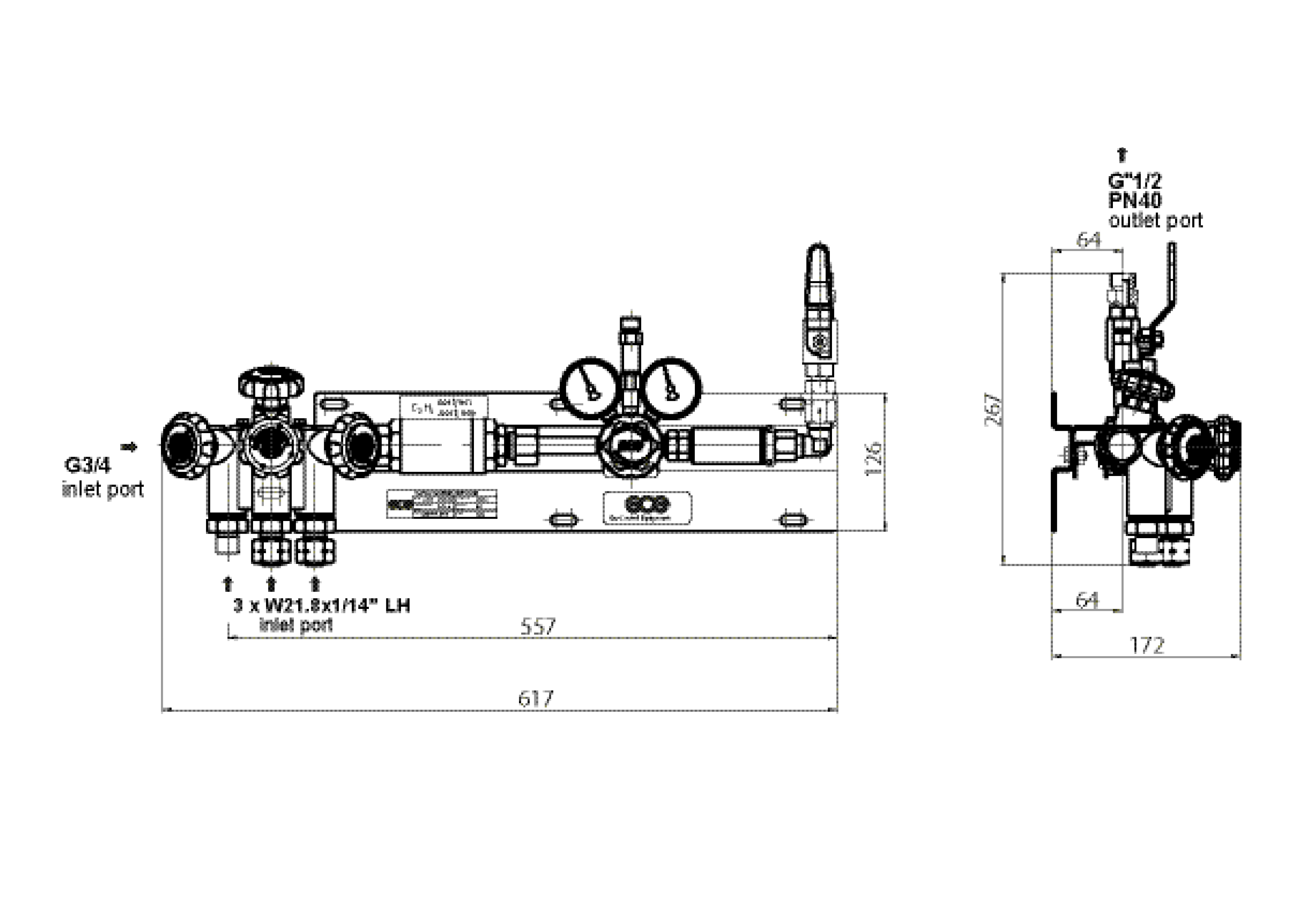

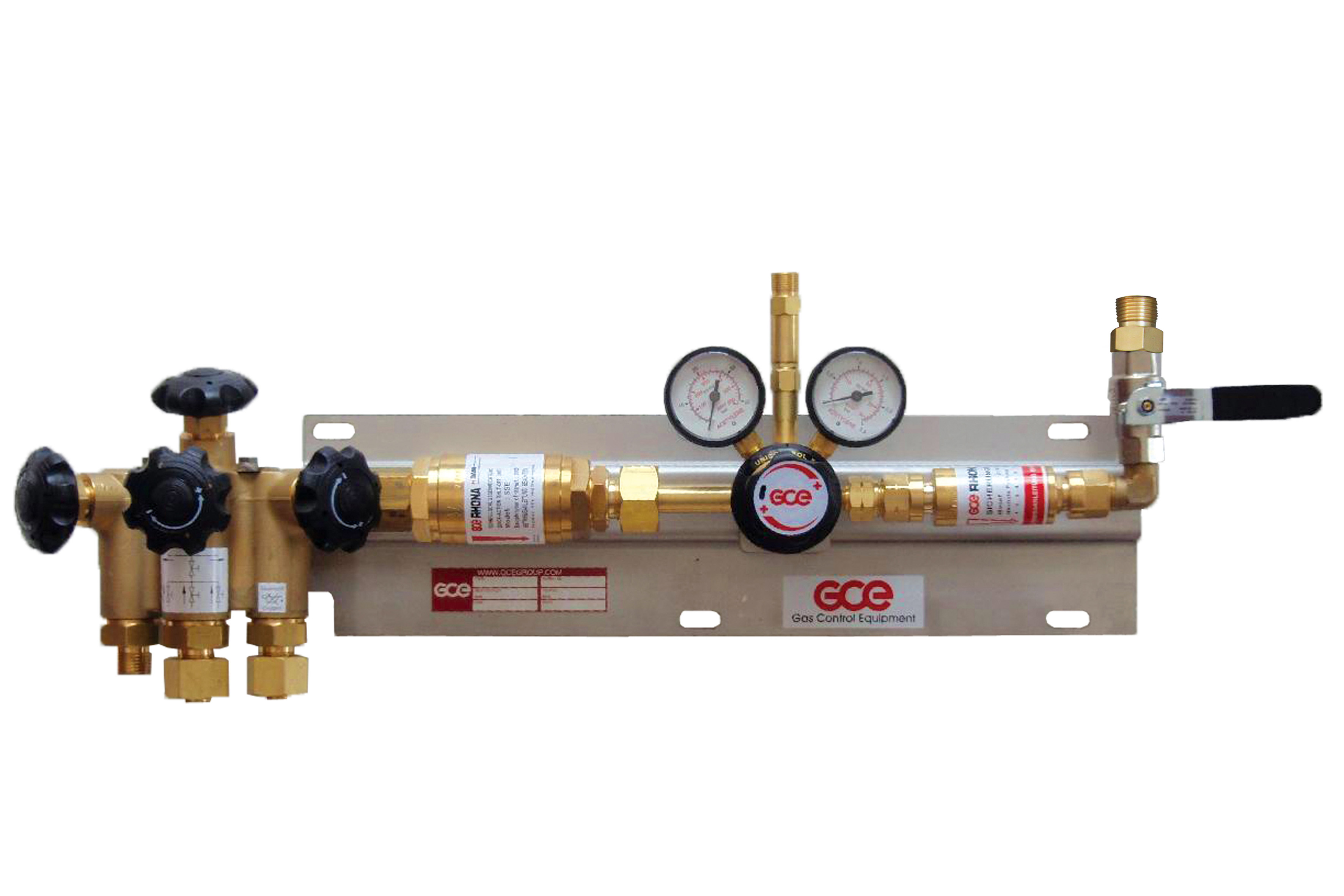

MB 70 for acetylene is design and produced in accordance with ISO 14 114. Manyflow is tested and approved in accordance with ISO 15 615 as well as high pressure automatic quick acting shut-off valve and pressure regulator UC 500. There are also pressure relief valve, high pressure and low pressure gauges. Low pressure flashback arrestor GVA 90 (EN 730-1, ISO 5175) consists of filter, flame arrestor, thermal arrestor and non-return valve. Outlet ball valve is mounted downstream FBA.

OUTLET

  • G1/2“, DN15

Art. Nr. Description Gas Pressure Inlet
0768099 MB70 O, D, N, CO2 300/20 bar W21,8×1/14“
14037552 MB70 CG* O, D, N, CO2 300/20 bar W21,8×1/14“
0768148 MB70 H 300/20 bar W21,8×1/14“LH
0768219 MB70 O, D, N, CO2 300/40 bar W21,8×1/14“
ARS0157 MB70 PH** O, D, N, CO2 300/40 bar W21,8×1/14“
0768100 MB70 A 25/1,5 bar W21,8×1/14“LH
14037556 MB70 CG* A 25/1,5 bar W21,8×1/14“LH

* CG = contact gauge
** PH = integrated gas preheator


TECHNICAL DATA

  O, Inert, CO2 A
Regulator type: Unicontrol 500
Body, bonnet material: Brass Brass (Cu < 65%)
Connectors & fittings material: Brass Brass (Cu < 65%)
Diaphragm material: EPDM
Seat sealing material: PA Chloroprene
Wall bracket: Stainless steel
Maximal inlet pressure: 300 bar 25 bar
Maximal flow rate: 50 Nm3/h 10 Nm3/h
Temperature range: from -20 °C to 60 °C

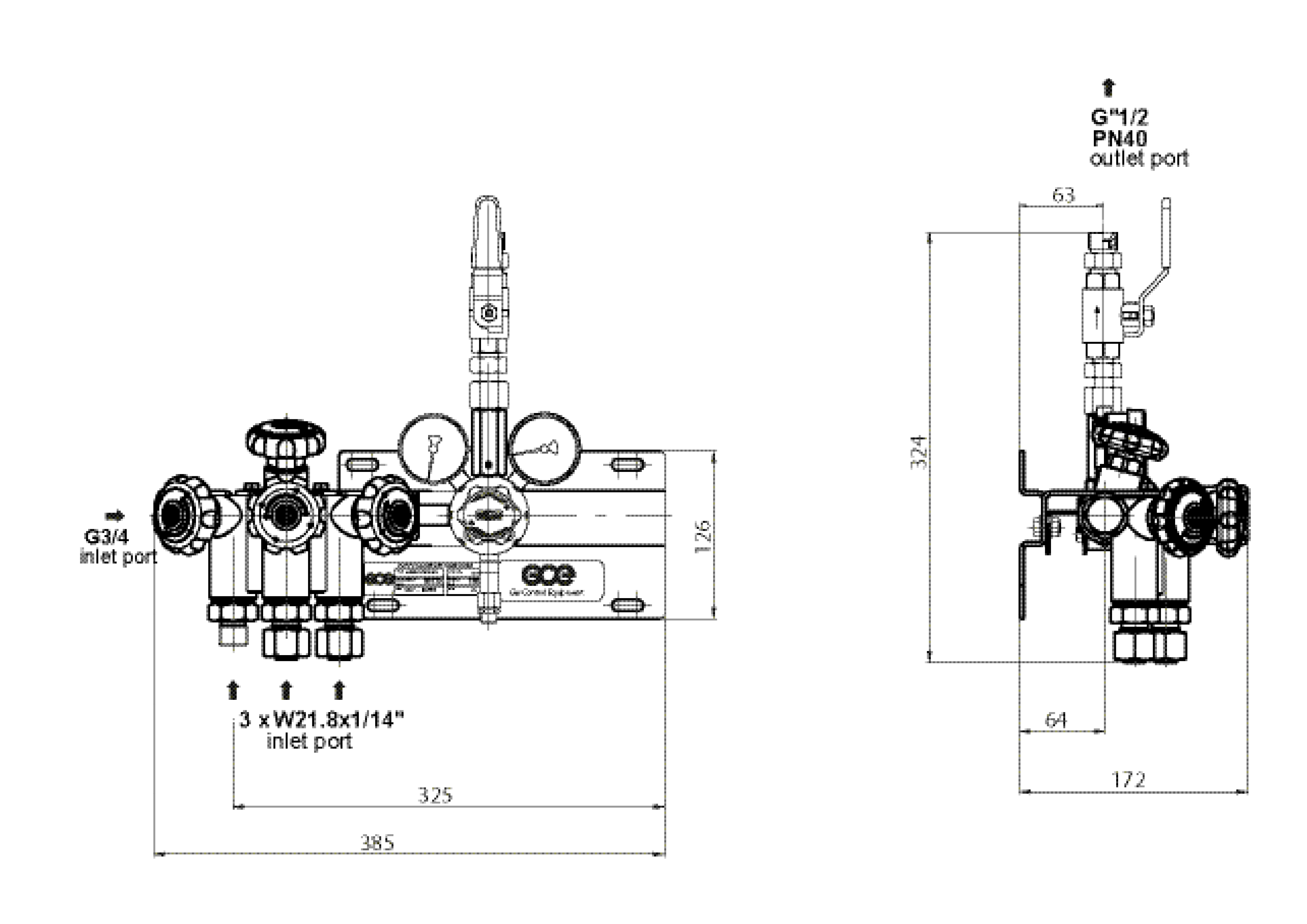

Technical Drawings
