High Pressure Manifolds

MAXIFLOW

Group Number: 2731


A unique compact semi-automatic solution for high pressure gas supply. This manifold integrates many different high pressure components in the central changeover block. Due to this specific design aspect, potential leakages are minimised. This ensures high safety standards and eliminates uncontrolled gas consumption, creating additional profit for the user.


MAXIFLOW BRASS BLOCK CONTAINS FOLLOWING COMPONENTS:

  • 2 inlet connections with sintered filters
  • two regulators for semiautomatic operation
  • inlet shut-off valves at both sides
  • purge valves for high pressure part purging and for pressure
    release
  • two HP gauges (contact gauges optionally)
  • pressure relieve valve
  • outlet connection with ball valve

Semi-automatic auto-change gas manifold for compressed gases with inlet pressure of up to 300bar. This product can ensure continuous gas supply without any application process interruption. Manifolds have the option for fitting contact gauges to relay information regarding gas depletion. It is a dual-stage regulation unit giving stable outlet pressure parameters. The unit consists of a brass changeover block which is the stable base for installation of other components. There are few internal connections which means minimal risk of leakages.

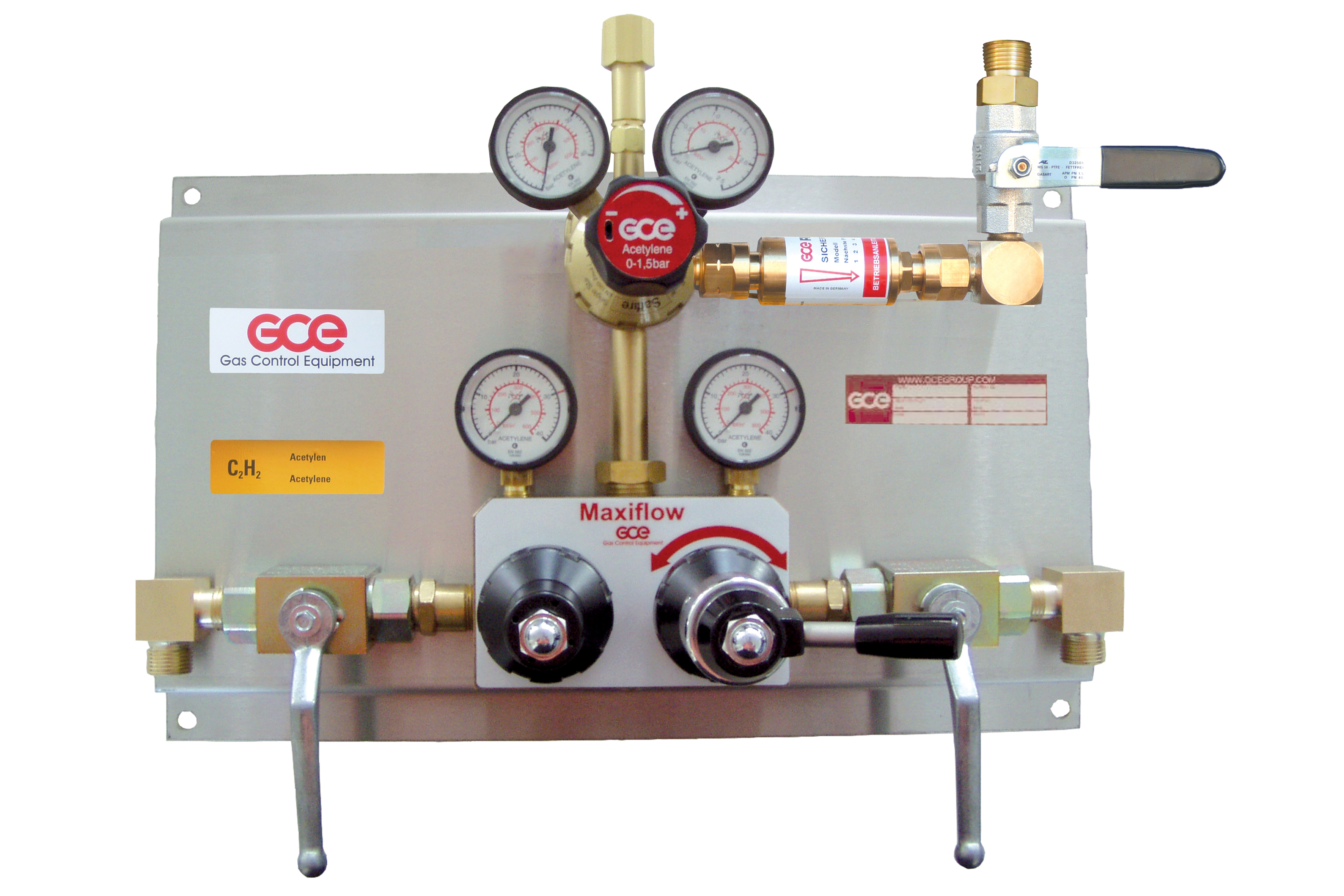

Semi-automatic auto-change gas manifold for acetylene. This product can ensure continuous gas supply without any application process interruption. There is a variant available with contact gauges to give information about gas depletion. It is a dual-stage regulation unit giving stable outlet pressure parameters. Also fitted on the outlet is a flashback arrestor GVA90 (EN 730-1, ISO 5175) and an isolating ball valve.
Outlet G1/2“, DN15.


Art. Nr. Description Gas Pressure Inlet
0768183 Maxiflow 2/2 O, D, N,
CO2
300/10 bar W21,8×1/14“
0768222 Maxiflow 2/2
CG
O, D, N,
CO2
300/10 bar W21,8×1/14“
0768184 Maxiflow 2/2 H/M 300/10 bar W21,8×1/14“LH
0768223 Maxiflow 2/2 CG H/M 300/10 bar W21,8×1/14“LH
0768119 Maxiflow 2/2 P 12/2,5 bar W21,8×1/14“LH
0768196 Maxiflow 2/2
CG
P 12/2,5 bar W21,8×1/14“LH
0768166 Maxiflow 2/2 A 25/1,5 bar W21,8×1/14“LH
0768167 Maxiflow 2/2
CG
A 25/1,5 bar W21,8×1/14“LH

CG = contact gauge


TECHNICAL DATA

  O, Inert, CO2 H P A
Panel and regulator body Brass Brass (Cu<65%)
Regulator bonnet Zn - Al alloy
Regulator type ODNCO2HM Piston Piston,
Diaphragm NBR
Diaphragm NBR Diaphragm EPDM
Regulating valve sealing Encapsulated, PA Encapsulated, CR
Connectors & fittings Brass Brass (Cu < 65%)
Wall bracket Stainless steel
Maximal inlet pressure 300 bar 30 bar
Nominal flow rate

20 Nm3/h
(at 10 bar)

40 Nm3/h
(at 10 bar)

7,5 Nm3/h
(at 2,5 bar)

5 Nm3/h
(at 1,2 bar)
Temperature range from -20 °C to 60 °C

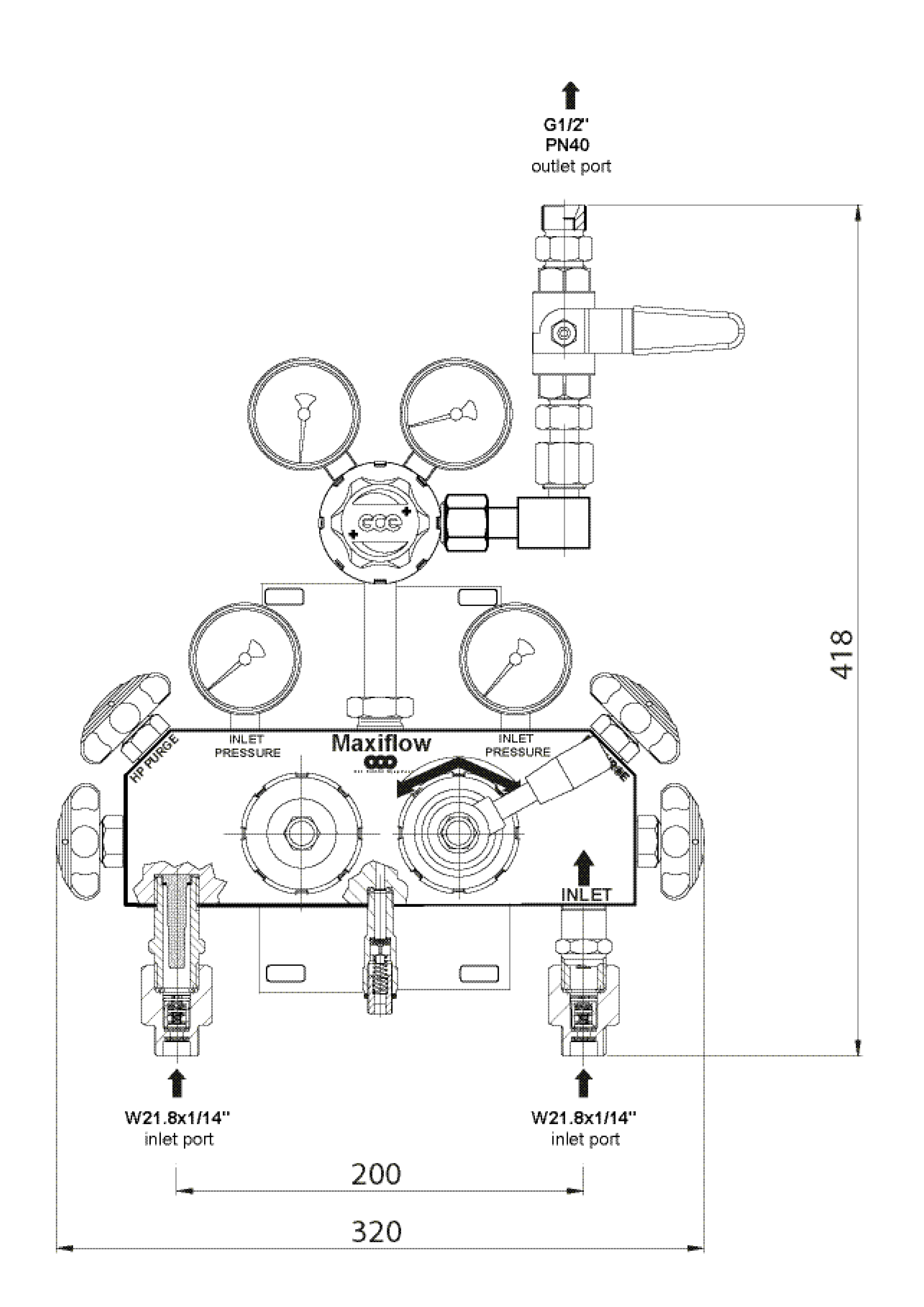

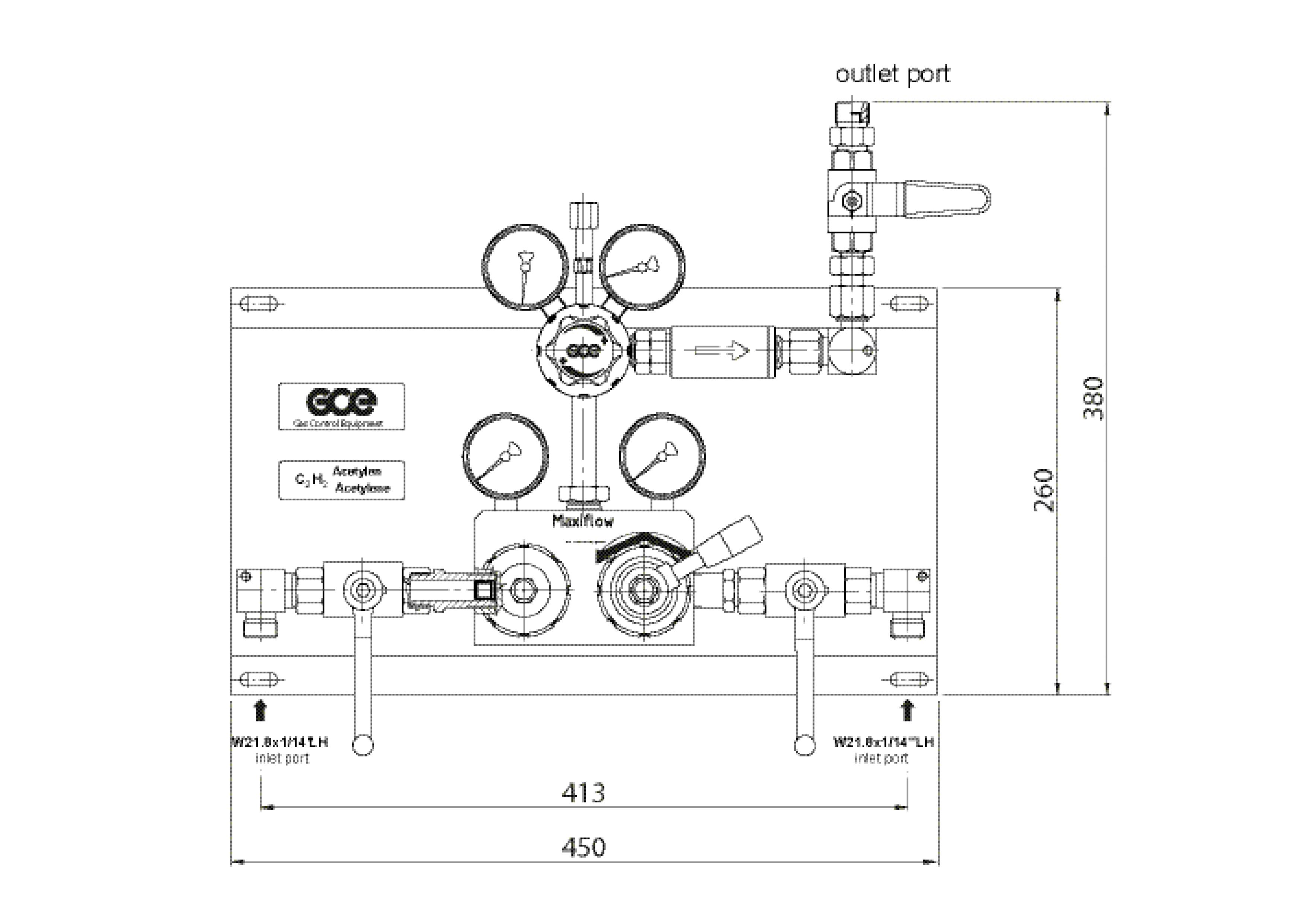

Technical Drawing
