Low Pressure Line Regulators

S151

Group Number: 2722

• S151 is low pressure high flow regulator for industrial applications
• Oxygen and inert gas service up to 600 Nm³/h
• 90° connectors (rear entry, bottom outlet) for direct in-line mounting as the tapping point regulator
• It is pneumatic controlled (dome loaded) regulator with integrated pilot regulator. This design feature is stabilizing outlet pressure at the high flow
• Integrated inlet filter ensures reliable function of the regulator even with old or dirty upstream pipeworks
• It can be used in many low pressure applications where is requested high-flow outlet with constant delivery pressure
• Typical applications: Oxy-fuel cutting and other various oxy-fuel processes, laser process gas service, arc welding shielding gas pressure stabilizing

TECHNICAL DATA

Bodies and bonnet material:	Brass
Main diaphragm material:	EPDM
Pilot diaphragm material:	NBR
Seat sealing:	PA
Inlet filter:	37,5 μm, bronze
Connectors & fittings:	Brass
Inlet connection:	G1“
Outlet connection:	G3/4“
Maximal inlet pressure for oxygen:	30 bar
Maximal inlet pressure for inert gases:	40 bar
Outlet pressure range:	0-10 bar
Temperature range:	from -20 °C to 60 °C
Coefficient „i“:	0,042
Coefficient „R“:	0,090
Weight:	6,9 kg

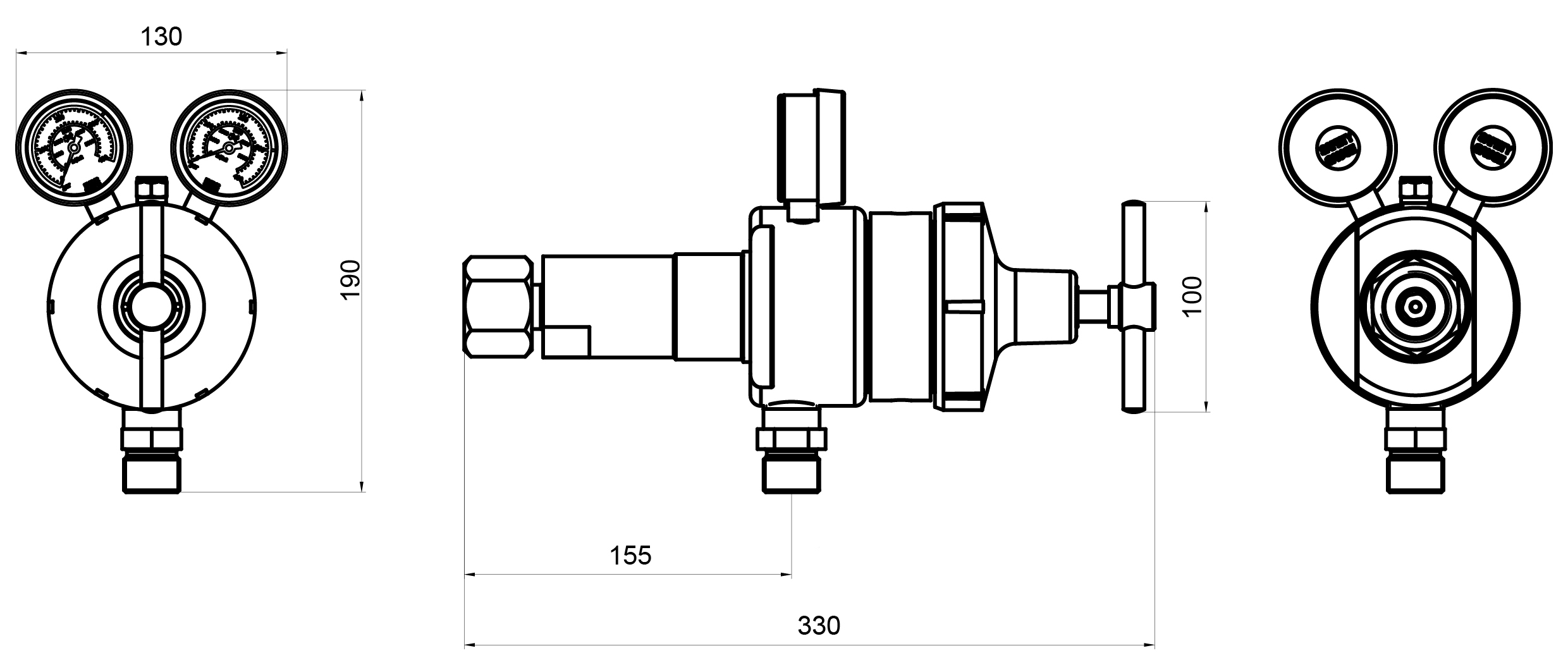

Technical Drawings
