High Pressure Manifolds

MA70

Group Number: 2731

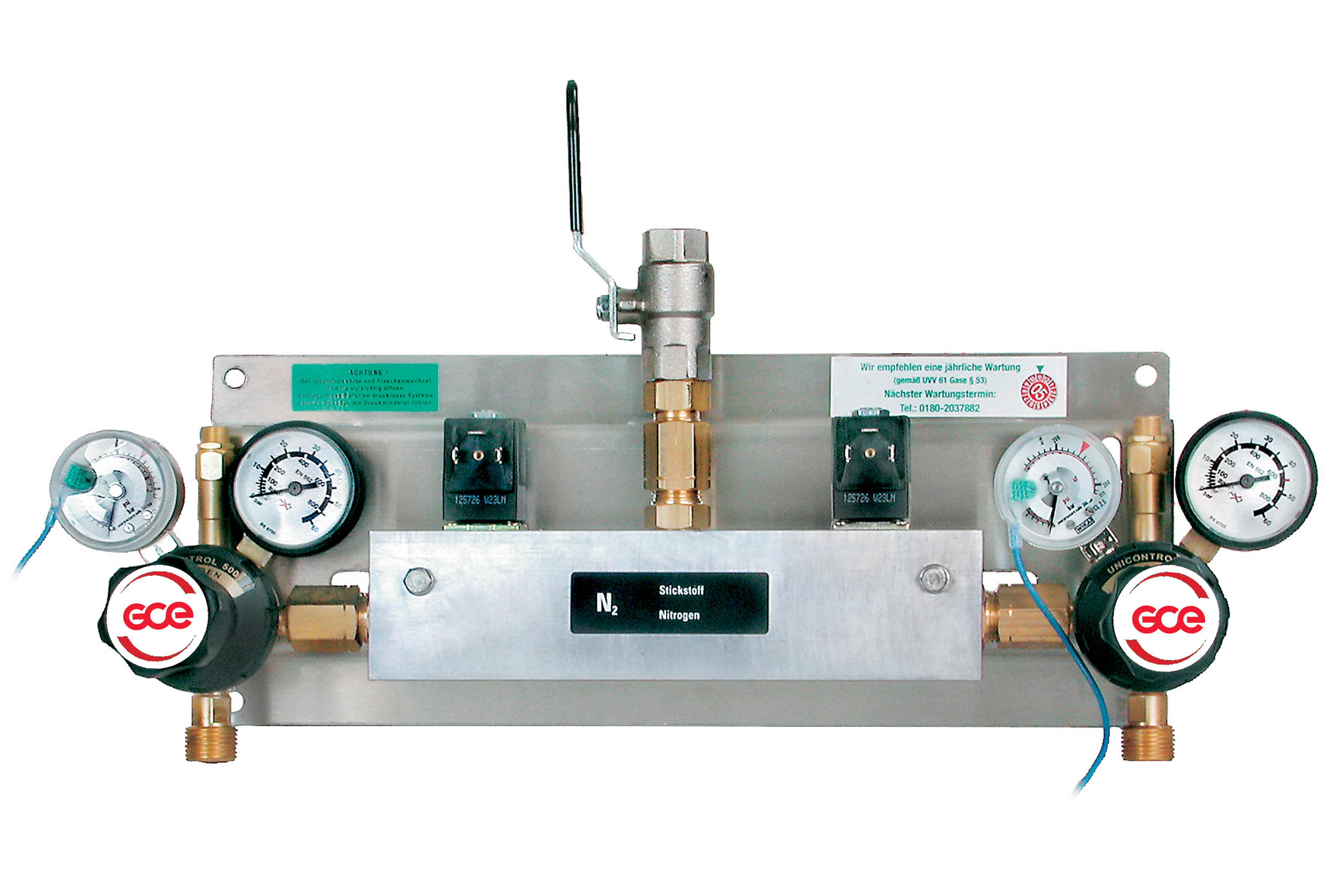

Automatic change over manifold mounted onto a stainless steel panel and consists of two pressure regulators with inlet and outlet pressure gauge, a switch unit with two magnetic valves including control unit and signal monitoring. Automatic change over for uninterrupted gas flow. Solenoid valves guarantee a maximum of exhaustion of the gas sources (cylinders or bundles). Acoustic and optical gas leakage monitoring via contact pressure gauges and signal device. In each case, after falling below boundary values (at the pressure gauges preset delay period) gas supply will be changed over to the full cylinder. Check valves on both sides prevent the reflux of gas back into the empty side. The user will be protected against operating errors by clear display and operator control functions.
Control unit is the part of standard delivery package.

  • Outlet connection: DN15

Art. Nr. Description Gas Pressure Inlet
EXM0025 MA70 300/16 bar O, D, N, CO2 300/16 bar W21,8×1/14“
EXM0028 MA70 300/40 bar N 300/40 bar W21,8×1/14“

 TECHNICAL DATA

Regulator type: UC 500
Regulator body: Brass
Regulator bonnet: Zinc alloy
Seat sealing: PA
Piston sealing (for N2): Silicon
Diaphragm: EPDM
Ball valve sealing: PTFE
Maximal inlet pressure: 300 bar
Temperature range: From - 20 °C to 60 °C
Wall bracket: Stainless steel

 TECHNICAL DATA - CONTROL UNIT

Power supply: 220 V, 50 Hz
Working temperature: From 0 °C to 55 °C

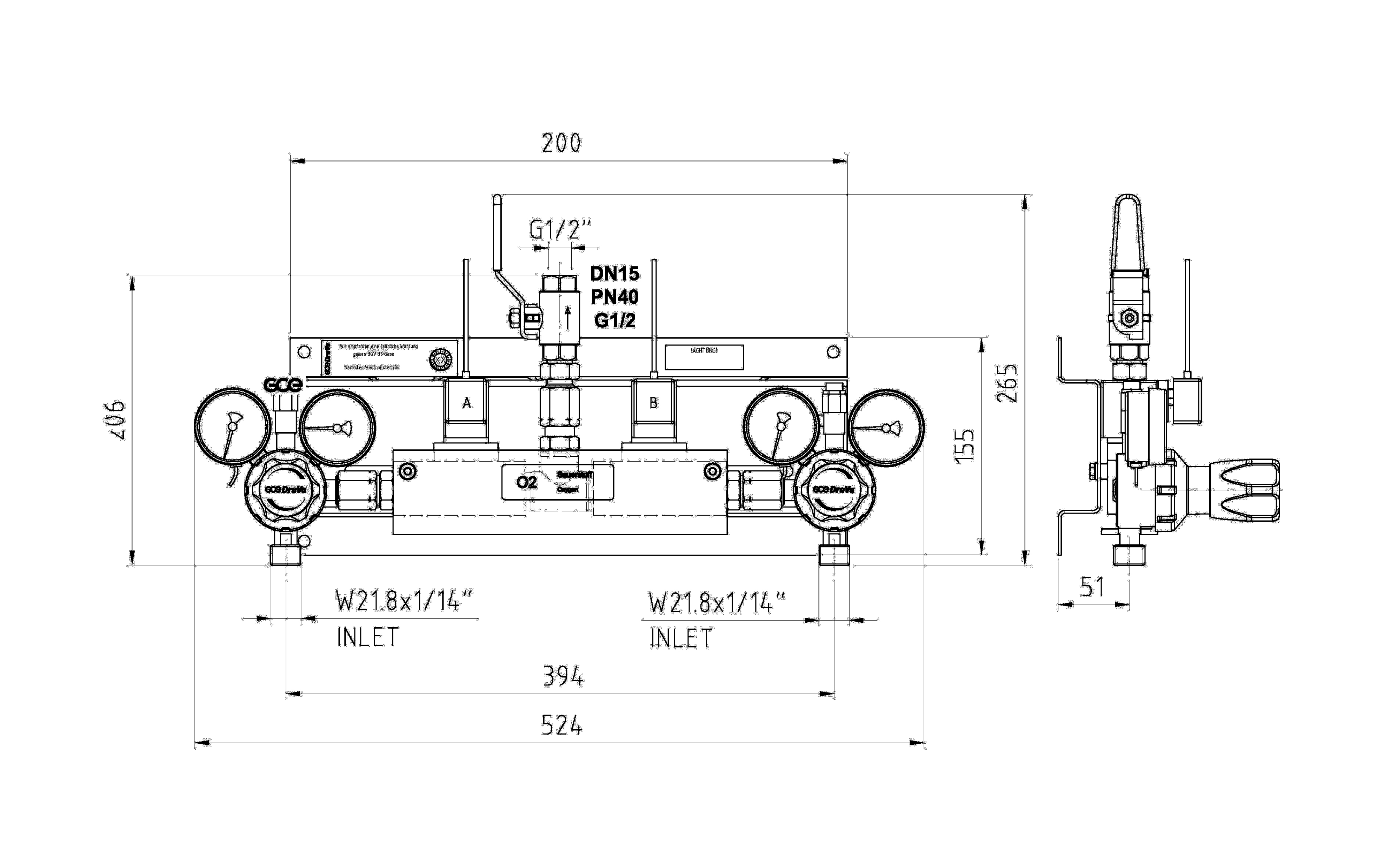

Technical Drawings
