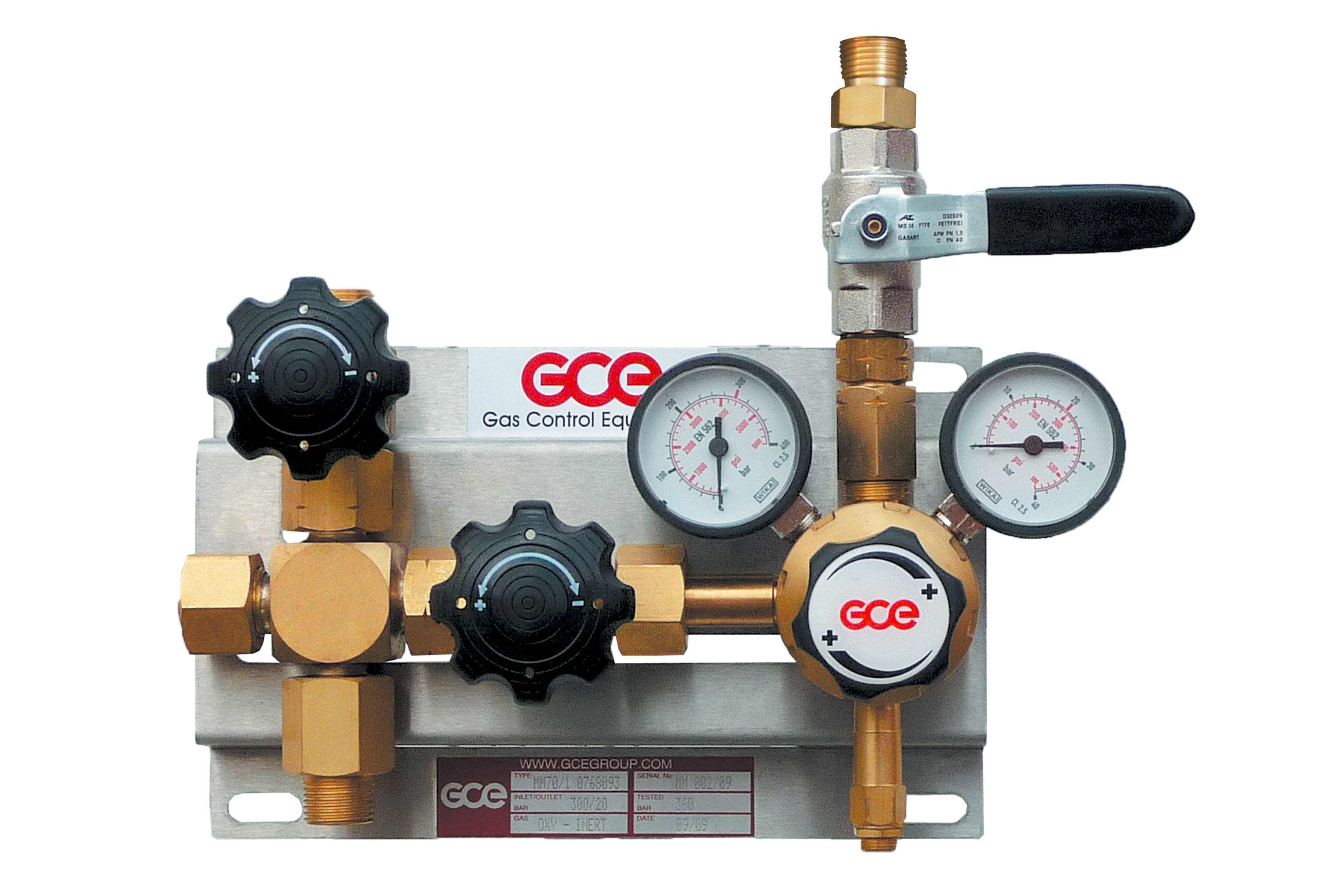

High Pressure Manifolds

MM70-1

Group Number: 2731

Gases with inlet pressure up to 300 bar. Manifolds contain inlet x-block with nonreturn valve and filter, purge valve and second inlet from site with the potential to install extension units. Purge valves can be used for pressure release when cylinder/bundle hose is disconnected. There is also a high pressure shut-off valve, regulator with pressure relief valve and outlet ball valve mounted on the stainless steel panel. Acetylene variant of MM70-1 manifold for cylinder service.

Art. Nr.	Gas	Pressure	Inlet	Outlet
0768093	O, D, N, CO₂	300/20 bar	W21,8×1/14“	DN15, G1/2”
0768142	O, D, N, CO₂	300/40 bar	W21,8×1/14“	DN15, G1/2”
0768168	O, D, N, CO₂	300/100 bar JC600	W21,8×1/14“	DN4, W21,8×1/14“
0768094	H/M	300/20 bar	W21,8×1/14“LH	DN15, G1/2”
0768096	P	25/4 bar	W21,8×1/14“LH	DN15, G1/2”
0768111	A	25/1,5 bar	W21,8×1/14“LH	DN15, G1/2”

TECHNICAL DATA

	O, Inert, CO₂	H, P	A
Regulator type:	Unicontrol 500
Body, bonnet material:	Brass	Brass	Brass (Cu< 65%)
Connectors & fittings material:	Brass, St.steel	Brass, St.steel	Brass (Cu< 65%), St. steel
Diaphragm material:	EPDM	NBR	EPDM
Seat sealing material:	PA	PA	Chloroprene
Wall bracket:	Stainless steel
Maximal inlet pressure:	300 bar	300 bar (H), 25 bar (P)	25 bar
Maximal flow rate:	50 Nm³/h	50 Nm3/h (H), 10 Nm³/h (P)	5 Nm³/h
Temperature range:	from -20°C to 60 °C
