High Pressure Manifolds

MU70

Group Number: 2731

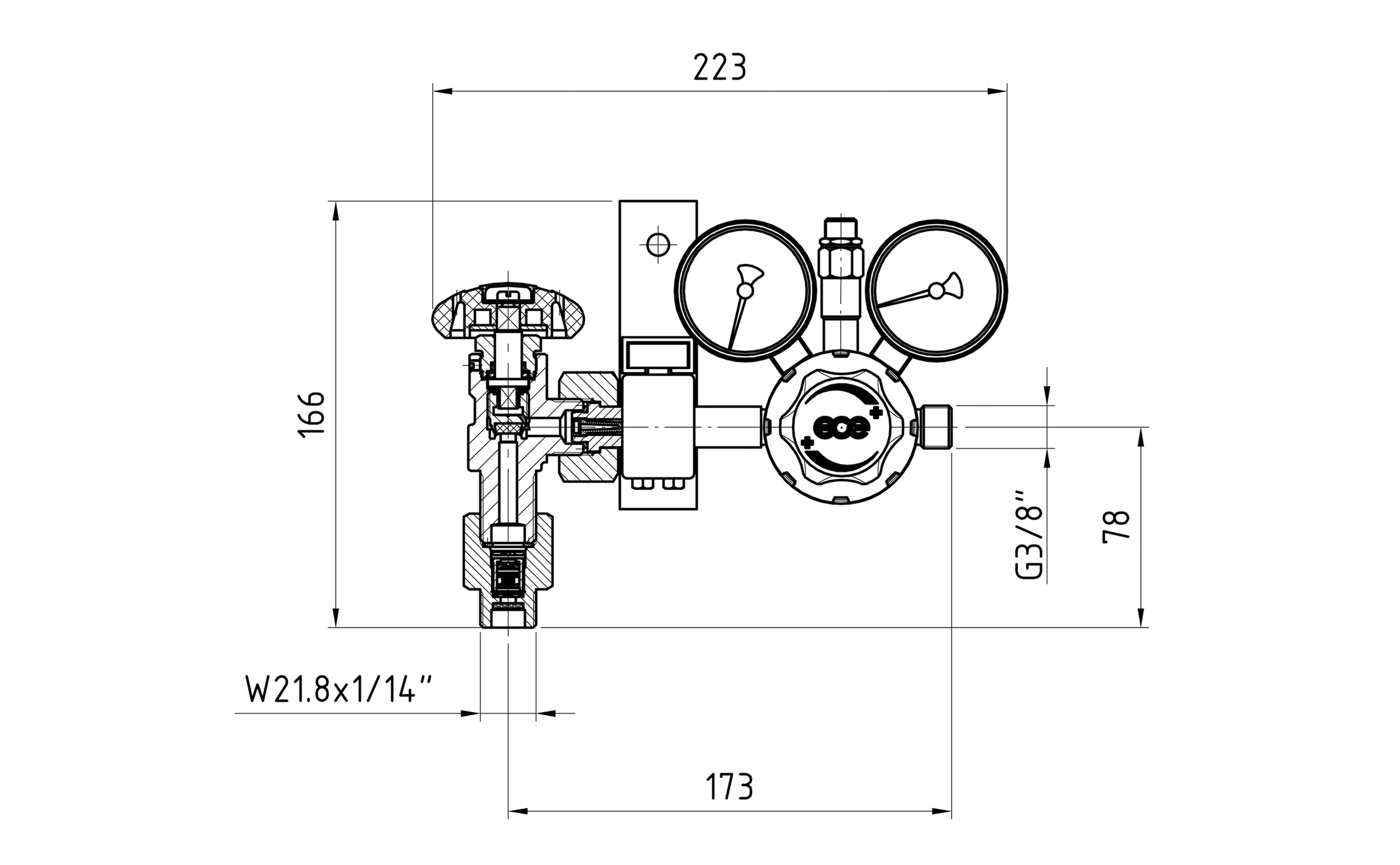

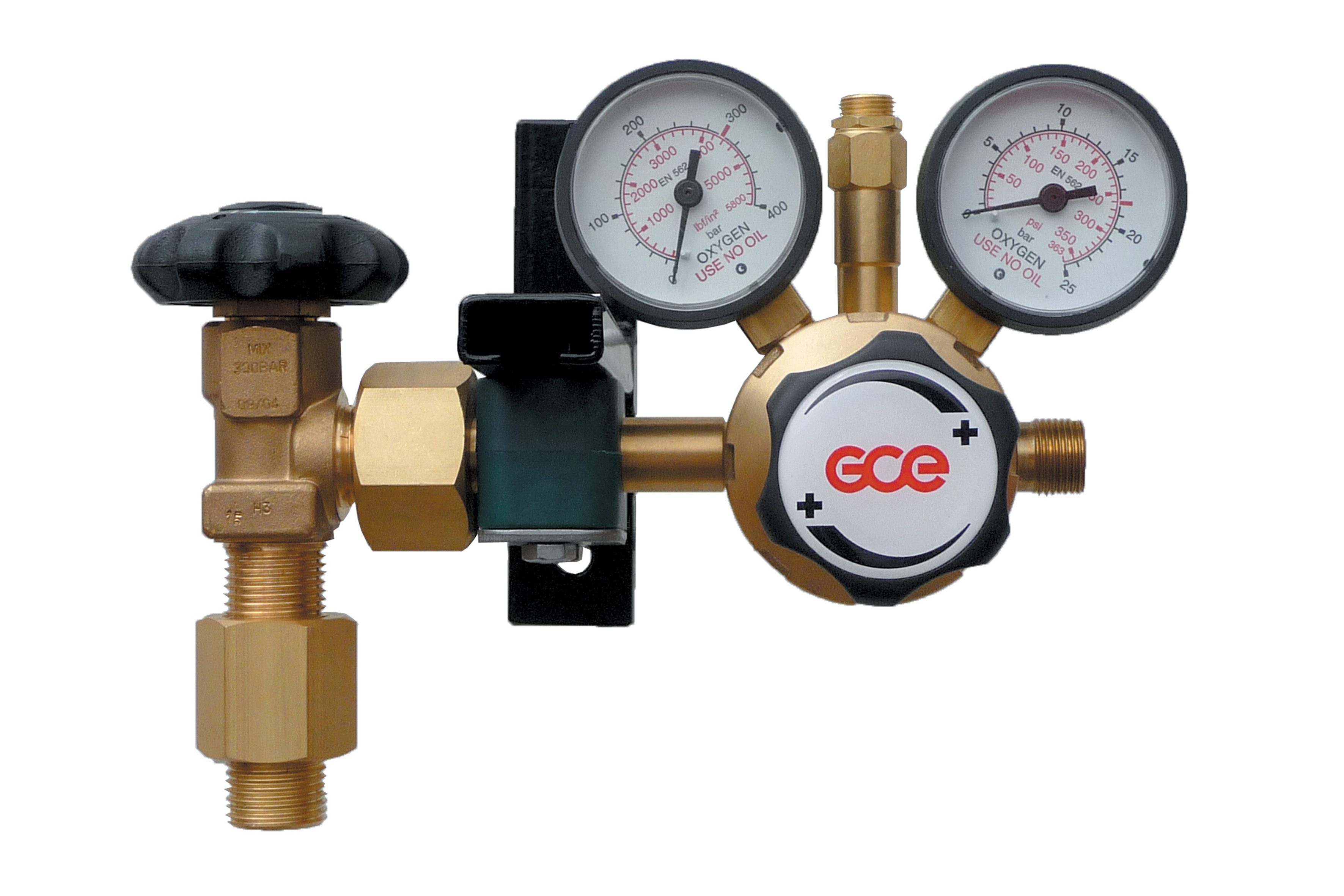

Basic unit with one inlet and one outlet, shut-off valve and pressure regulator, with inlet filter and non return valve. Designed for small or middle gas consumptions for one cylinder or cylinder bundle.


Art. Nr. Gas,Pressure Inlet Outlet
0768091 O, D, N, CO2, 300/20 bar W21,8×1/14“ G3/8“
0768092 Hydrogen/methan, 300/20 bar W21,8×1/14“LH G3/8“LH

TECHNICAL DATA

Regulator type: UC500
Body, bonnet material: Brass
Connectors & fittings material: Brass
Diaphragm material: EPDM, NBR
Seat sealing material: PA
Wall bracket: Painted steel
Maximal inlet pressure: 300 bar
Maximal flow rate: 30 Nm3/h
Temperature range: from -20 °C to 60 °C

MU70-M

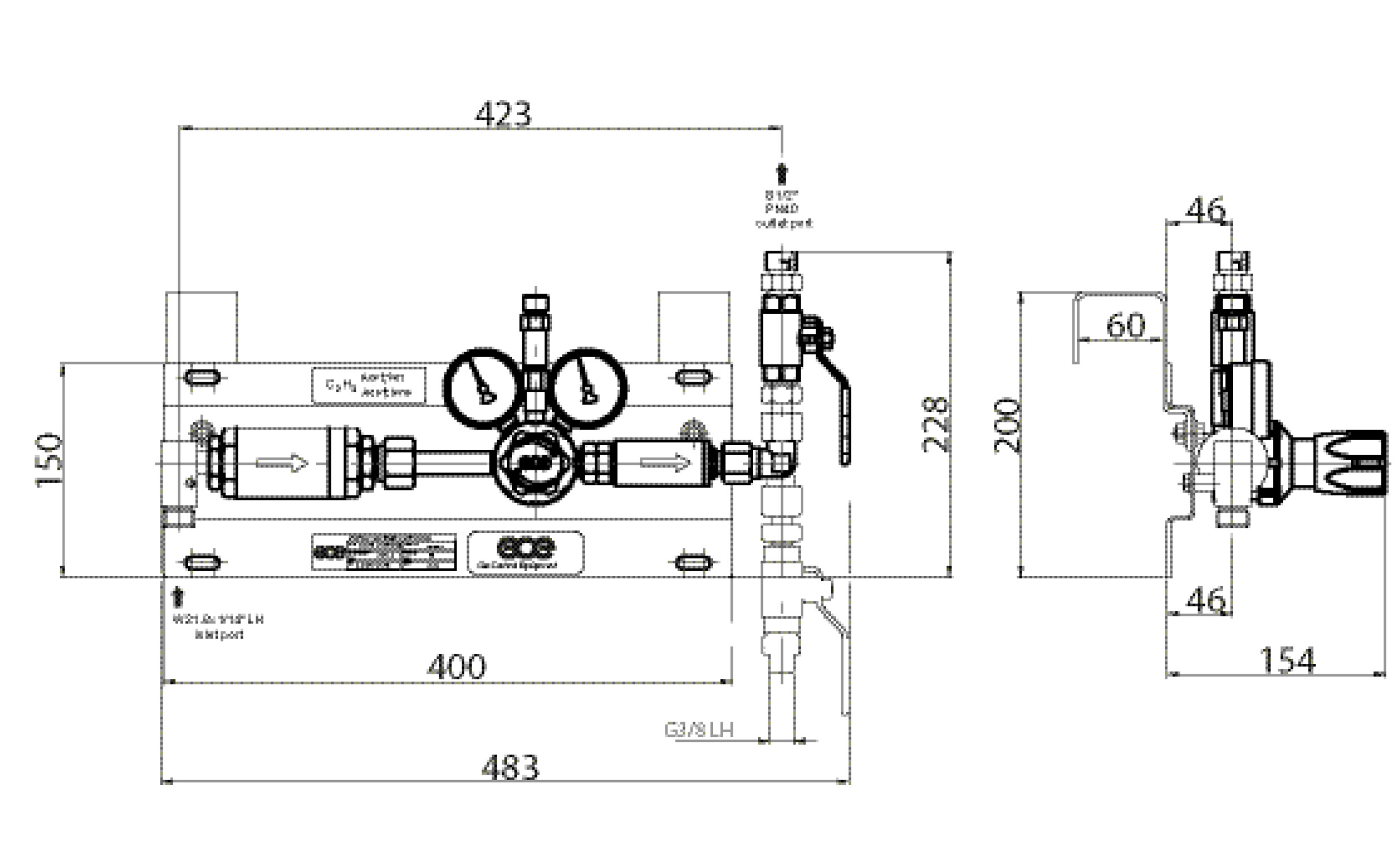

New concept of acetylene manifold either for stabile installation or for mobile usage with bundles or cylinders. Panel can be mounted directly at the wall with configuration as shown at the picture. When hanging kit in mounted on, panel can be hanged directly at the bundle or cylinders pallet frame. This configuration fulfills requests of outdoor on-side applications. It is designed in accordance with ISO 14 114 with automatic quick - acting shut-off valve and regulor, both tested in accordance with ISO 15 615.
There is also flashback arrestor GVA 90 downstream regulator. GVA 90
(EN 730-1, ISO 5175) contains filter, flame arrestor, thermal arrestor and non-return valve.


Art. Nr. Gas,Pressure Inlet Outlet
0768120 A, 25/1,5 bar W21,8×1/14“LH DN15

TECHNICAL DATA

Regulator type: UC500
Body, bonnet material: Brass (Cu< 65%)
Connectors & fittings material: Brass (Cu< 65%)
Diaphragm material: EPDM
Seat sealing material: Chloroprene
Wall bracket: Stainless steel
Maximal inlet pressure: 25 bar
Maximal flow rate: 14 Nm3/h
Temperature range: from -20 °C to 60 °C

MU70-M with mounted hangers and with outlet adapted for direct low-pressure hose connection. This picture shows optimal product configuration how to place MU70-M directly at the cylinders bundle or cylinders pallet cage, e.g. for on-site applications.
