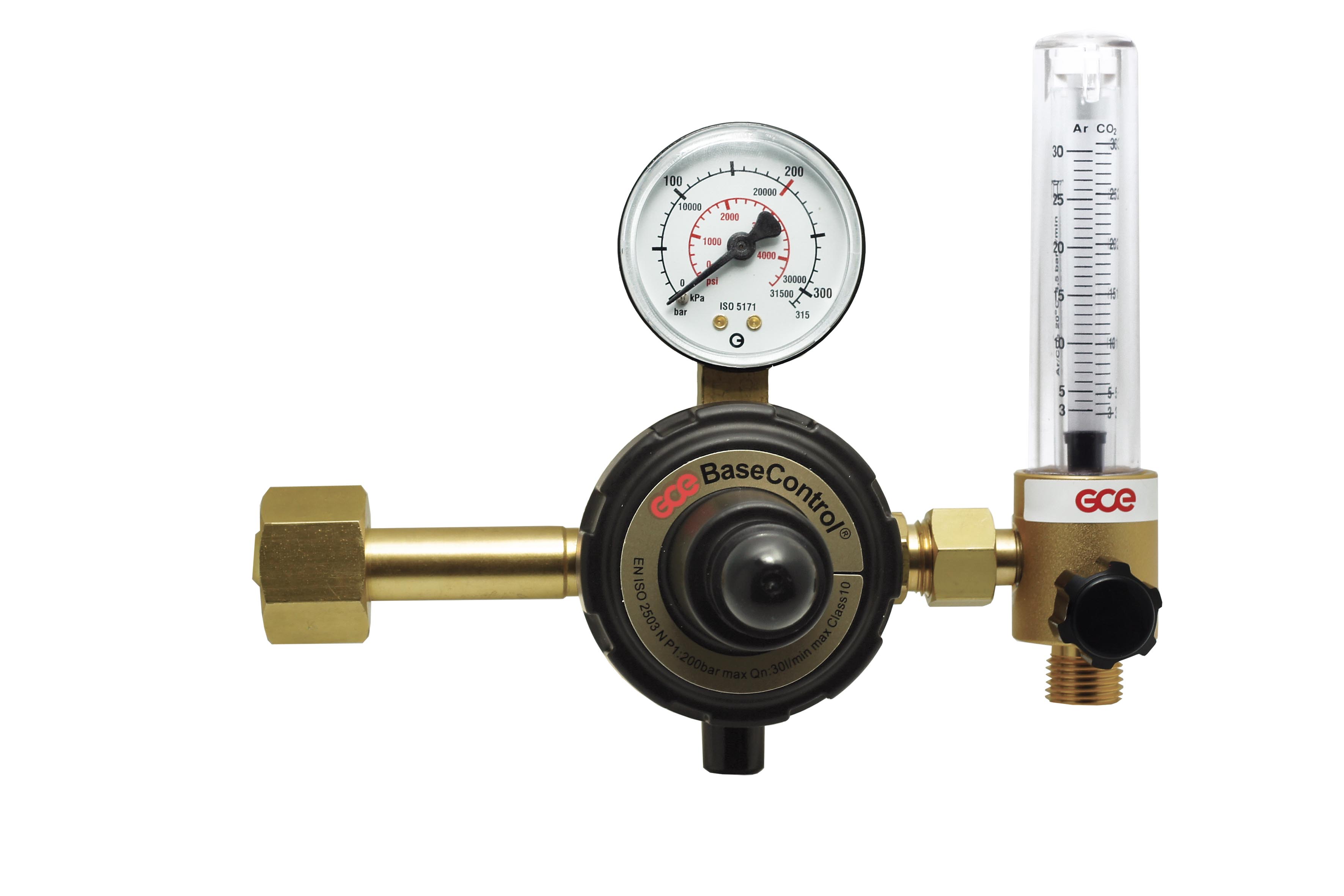

BASECONTROL® FLOW

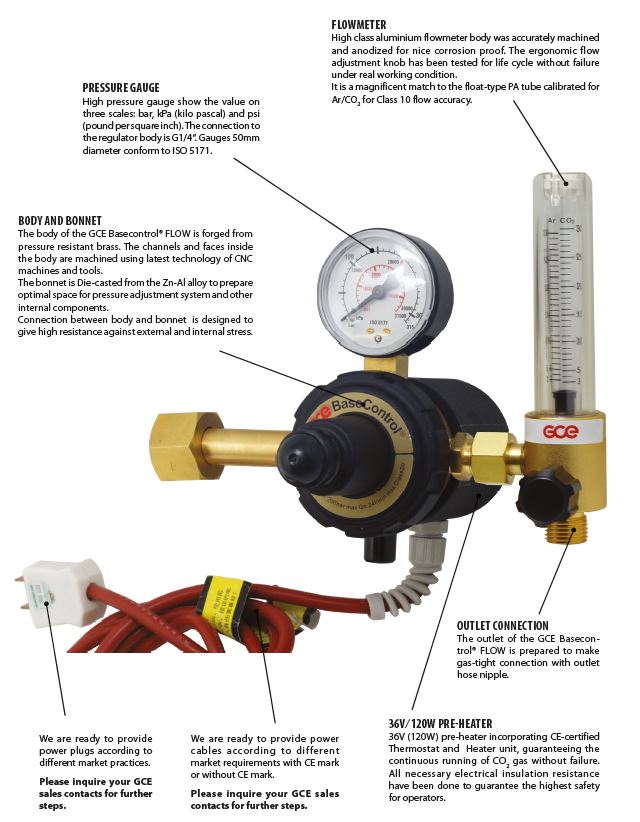

FEATURES, ADVANTAGES, BENEFITS
- Pressure regulator for shielding gas arc welding applications conforming to ISO 2503
- Safe operation with high compressed gases up to 230bar cylinder filling pressure
- Available in following variants:
- GCE Basecontrol® FLOW
- GCE Basecontrol® FLOW with preheater (36V, 120W) - Regulating valve protected against mechanical particles of size 50μm by inlet filter
- Protection of the low pressure part with integrated pressure relief valve
- Pressure values are shown on the gauges in three major pressure units scales: bar, kPa, psi
- Flowmeter tube (class 10) showing the value in litres per minute (0-30 l/min)
- Long operational lifetime and Electrical safety
TECHNICAL DATA
| Gas: | Ar, Ar/CO2, CO2 |
| Body: | Brass forged |
| Bonnet: | Zn/Al alloy Die-casted |
| Stems, nuts and fittings: |
Brass |
| Diaphragm: | EPDM |
| Inlet/Outlet connection: | Gas specific connection |
| Maximal inlet pressure: | 230bar |
| Outlet pressure range: | 0-30 l/min |
| Temperature range: | from -20°C to 60°C |
| Electrical Gas Preheater: | 36V, 120W, IP44 |
| Weight: | Approx. 1,18 kg |
| ISO 2503 Class: | 10 |

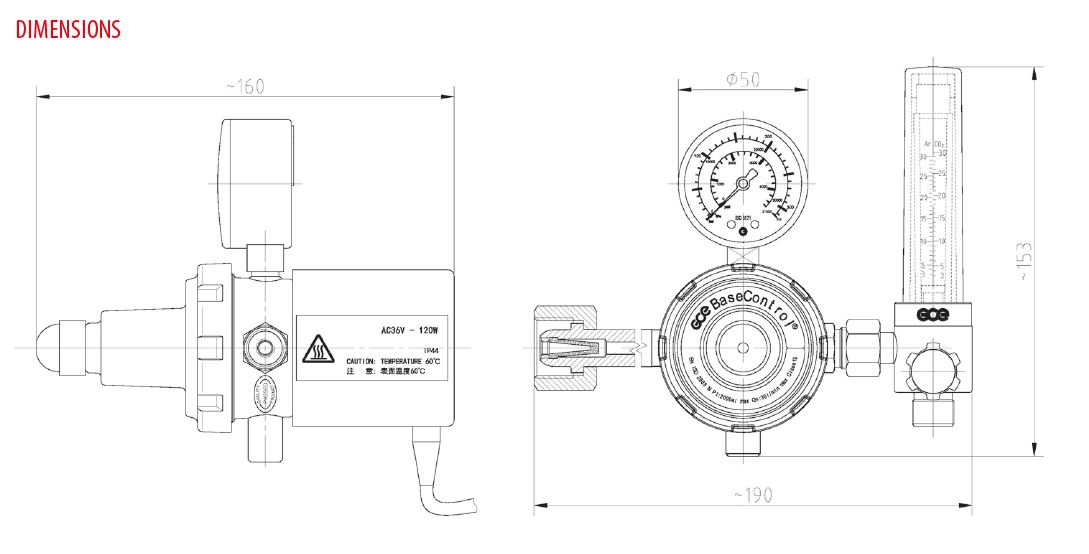

Technical Drawings
