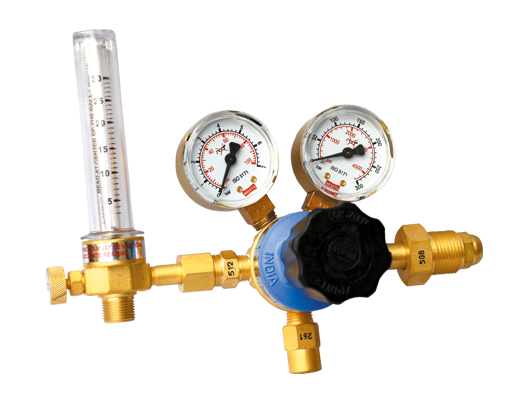

"MF" Series Single Stage
➤ "MF" Series Single Stage
These general purpose single stage regulators are recommended for inert and non-corrosive gas applications where precise control of delivery pressure is not necessary.
They are well suited. Where constant delivery pressure regardless of fluctuations in cylinder pressure are required.
Regulator Feature :
- Designed for easy maintainance.
- No metal to metal seat in nozzle for easy opening & closing.
- All component machined on CNC machine.
- All components are ultrasonicaly cleaned, also polishing & deburring in finishing machine.
- Weated are spring & poppet (pin) made from stainless stell to avoide rusting.
- Pressure key made from stainless steel & roll threaded to avoide wornout bonnet thered.
- Gas filteration with stainless steel wiremesh twice from inlet to restrict dust particle to enter.
Materials Of Construction :
- Body : Forged Brass
- Bonet : Al.Pres.Dies Cast/Forged Brass
- Diaphragm : Reinforced Neoprene Rubber
- Nozzle : Brass
- Seat : PTFE
- Filter : Stainess Steel Wire Mesh
- Seat Return Spring : Stainless Steel
- Bonnet Spring : Spring Steel Plated
- Adjusting Knob : ABS with Stainless Steel Screw
Applications : |
|
| ➤ BRAZING | ➤ PURGING |
| ➤ CUTTING | ➤ CHROMATOGRAPHY |
| ➤ HEATING | ➤ PROCESS CONTROL |
| ➤ WELDING | ➤ RESEARCH LAB |
"MF" Series Specification |
|
| MAXIMUM INLET | 4000 PSIG |
| OUTLET RANGE | 0-4.0 BAR |
| OUTLET | AS PER BIS |
| BODY PORT | 1/4 NPT F |
Technical Data Sheet
| Gas Service | Model | Cylinder* | Delivery | Connections* | ||||
|---|---|---|---|---|---|---|---|---|
| PRESSURE BAR | GUAGE RANGE BAR | PRESSURE BAR | GUAGE RANGE BAR | INLET | OUTLET | |||
| ARGON | MAR035CDSF | 150 | 0-300 | 0-4 | 0-7 | G 3-4 RH FEMALE | G 3/8 RH MALE | |
| CARBON DIOXIDE | MCD035CDSF | 80 | 0-300 | 0-4 | 0-7 | W 21.8X14 RH FEMALE | G 3/8 RH MALE | |
| HELIUM | MHE035CDSF | 150 | 0-300 | 0-4 | 0-7 | G 3-4 RH FEMALE | G 3/8 RH MALE | |
| HYDROGEN | MHY035CDSF | 150 | 0-300 | 0-4 | 0-7 | G 5/8 LH MALE | G 3/8 LH MALE | |
| NITROGEN | MNI035CDSF | 150 | 0-300 | 0-4 | 0-7 | G 3-4 RH FEMALE | G 3/8 RH MALE | |
| OXYGEN | MOX035CDSF | 150 | 0-300 | 0-4 | 0-7 | G 5/8 RH MALE | G 3/8 RH MALE | |
| *ALSO AS PER CUSTOMER REQUIREMENT - + AVAILABLE GUAGE RANGE 400 BAR FOR PRESSURE 200 BAR | ||||||||
| INLET - IS 3224 : 2002 | OUTLET - ISO / TR 70740 : 1998 | ||||||||
| 1 bar = 14.504 psi = 1.0197 kgf/cm2 | 1 psi = 0.06894 bar = 0.07031 kgf/cm2 | 1 kgf/cm2 = 14.223 psi = 0.98068 bar | ||||||||
