High Pressure Manifolds

MU400

Group Number: 2731

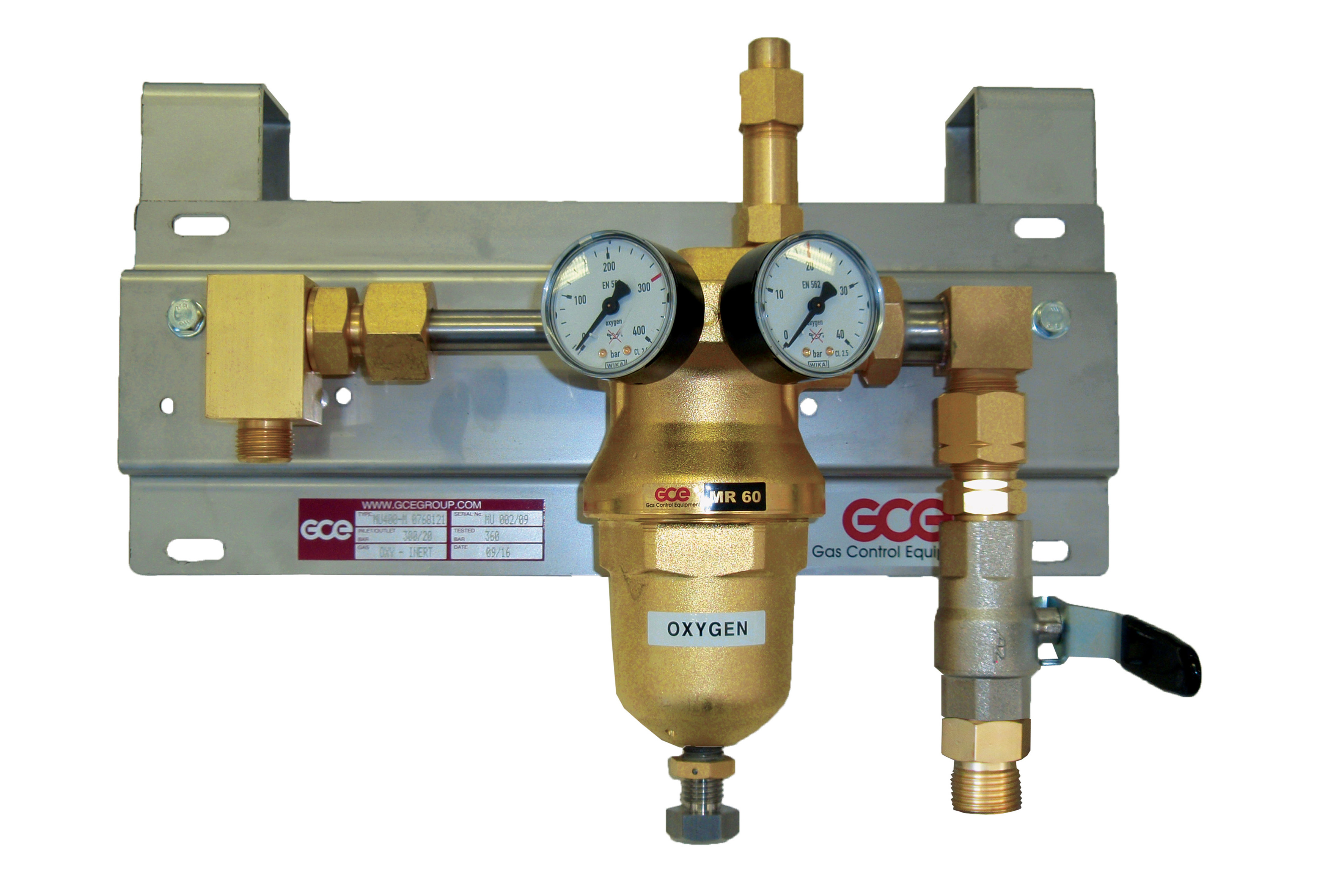

New concept of gas manifold with similar features as MU70-M. O, D, N, CO2 variant is equipped by high-flow regulator MR400. Manifold can be placed directly on the multi-cylinder package (bundle) as mobile unit with using of additional hanging kit. Hanging kit contains two stainless steel hangers, screws with nuts and washers and also two outlet adaptors with threads G1/4“ and G3/8“ for direct hose installation. This kit can be used in combination with MU70-M or MU400-M manifolds.

Propane variant is with high-flow regulator and contains also high-flow flashback arrestor Simax 3 at the outlet. Simax 3 is high flow flashback arrestor in accordance with EN 730-1 and ISO 5175 with filter, flame arrestor, thermal arrestor and non-return valve. There is also possibility to use hanging kit for mobile on-site installation.


Art. Nr. Gas,Pressure Inlet Outlet
0768121 O, D, N, CO2, 300/20 bar W21,8×1/14“ DN15
0768138 P, 25/4 bar W21,8×1/14“LH DN20

TECHNICAL DATA

  O, Inert, CO2 P
Regulator type: MR400 MR60
Body, bonnet material: Brass
Connectors & fittings material: Brass, stainless steel
Diaphragm material: EPDM NBR
Seat sealing material: PA PTFE
Wall bracket: Stainless steel
Maximal inlet pressure: 300 bar 100 bar
Maximal flow rate: 400 Nm3/h 100 Nm3/h
Nominal flow rate: 250 Nm3/h 50 Nm3/h
Temperature range: from -20 °C to 60 °C

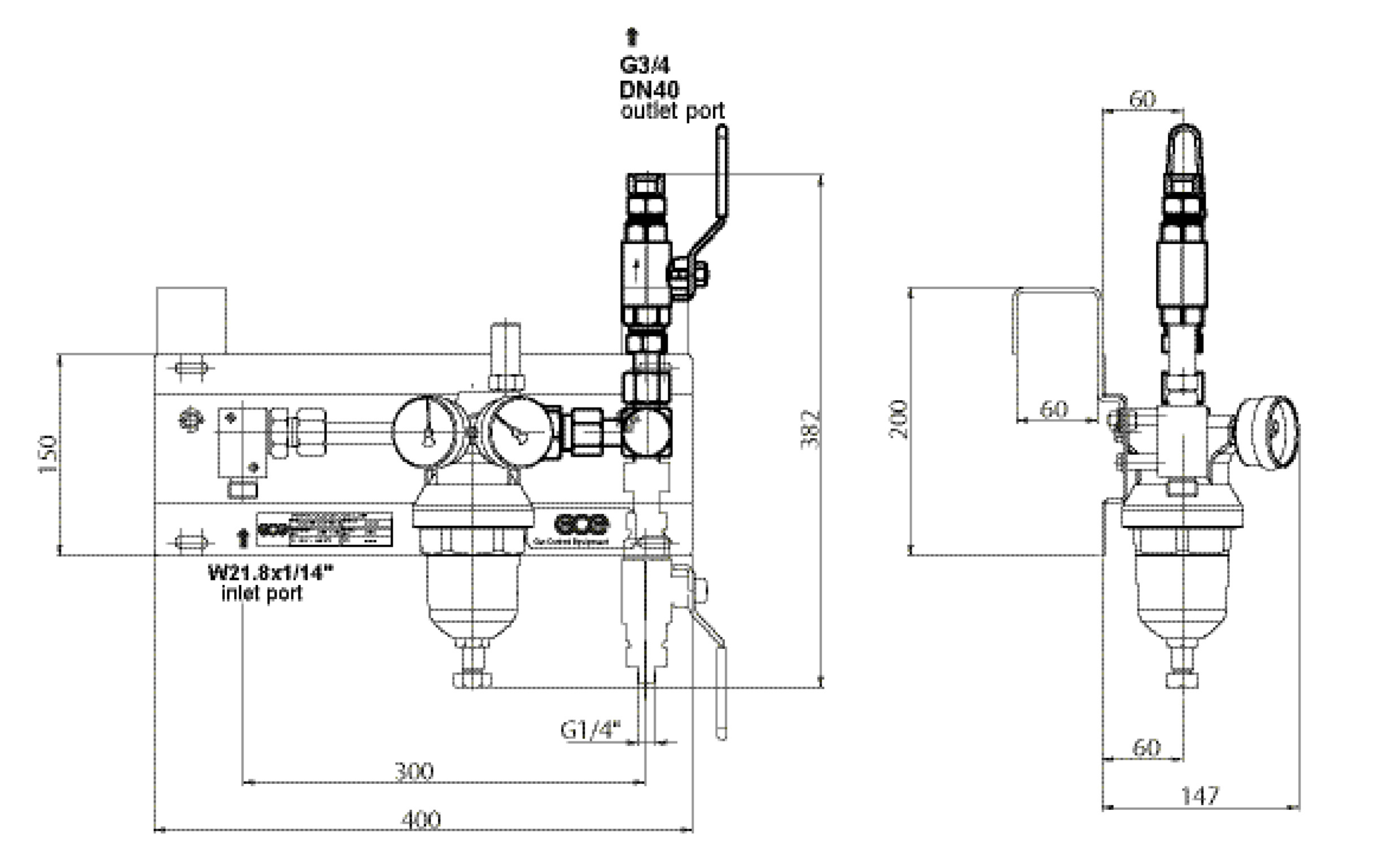

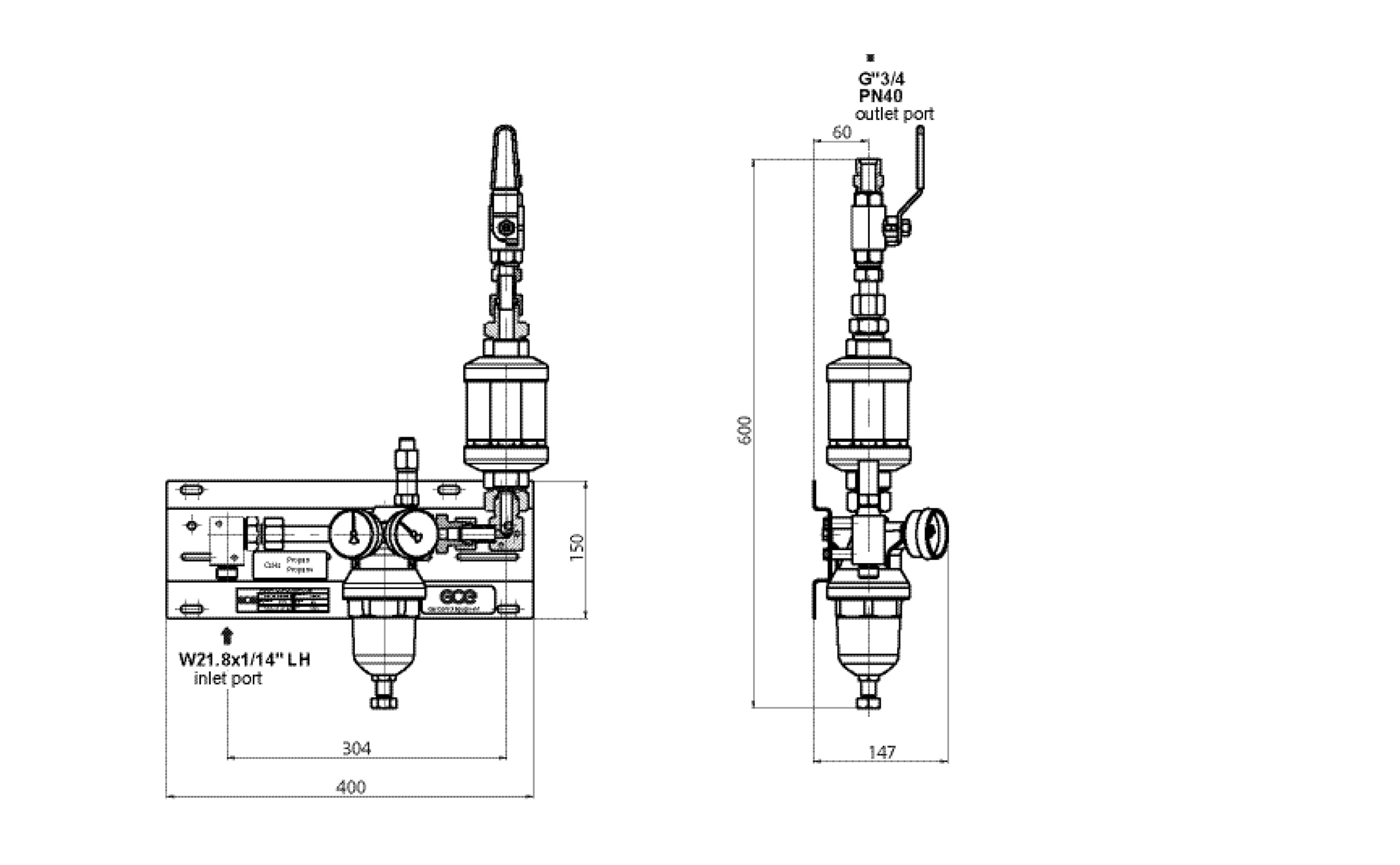

Technical Drawings
