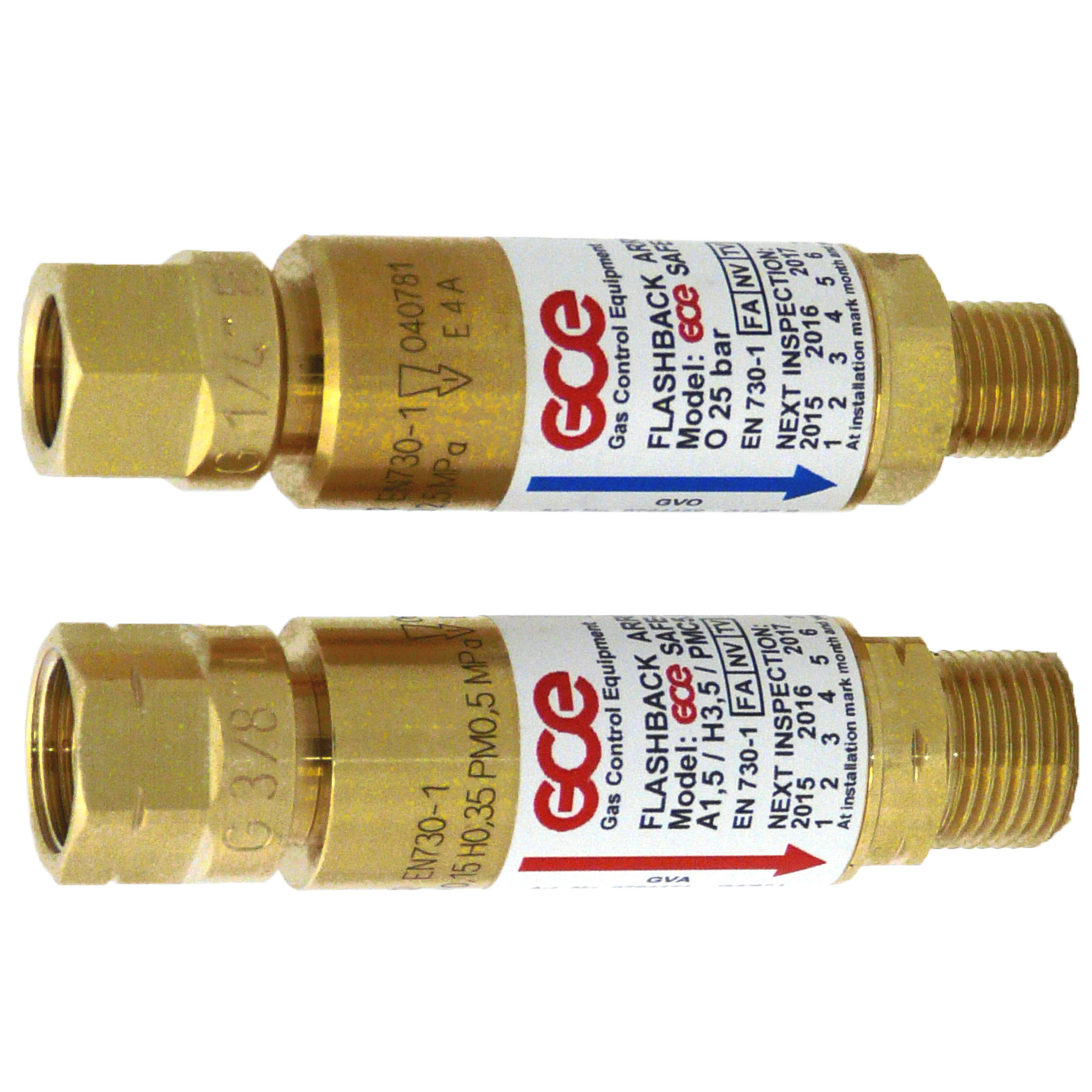

SAFE-GUARD-3 / FR34 - 3 FUNCTION FLASHBACK ARRESTOR
The new SAFE-GUARD-3 for regulator mounting, available from July 2014, contains a host of new upgrades to performance, filtration, Instructions, and product marking. Complies fully with EN730.

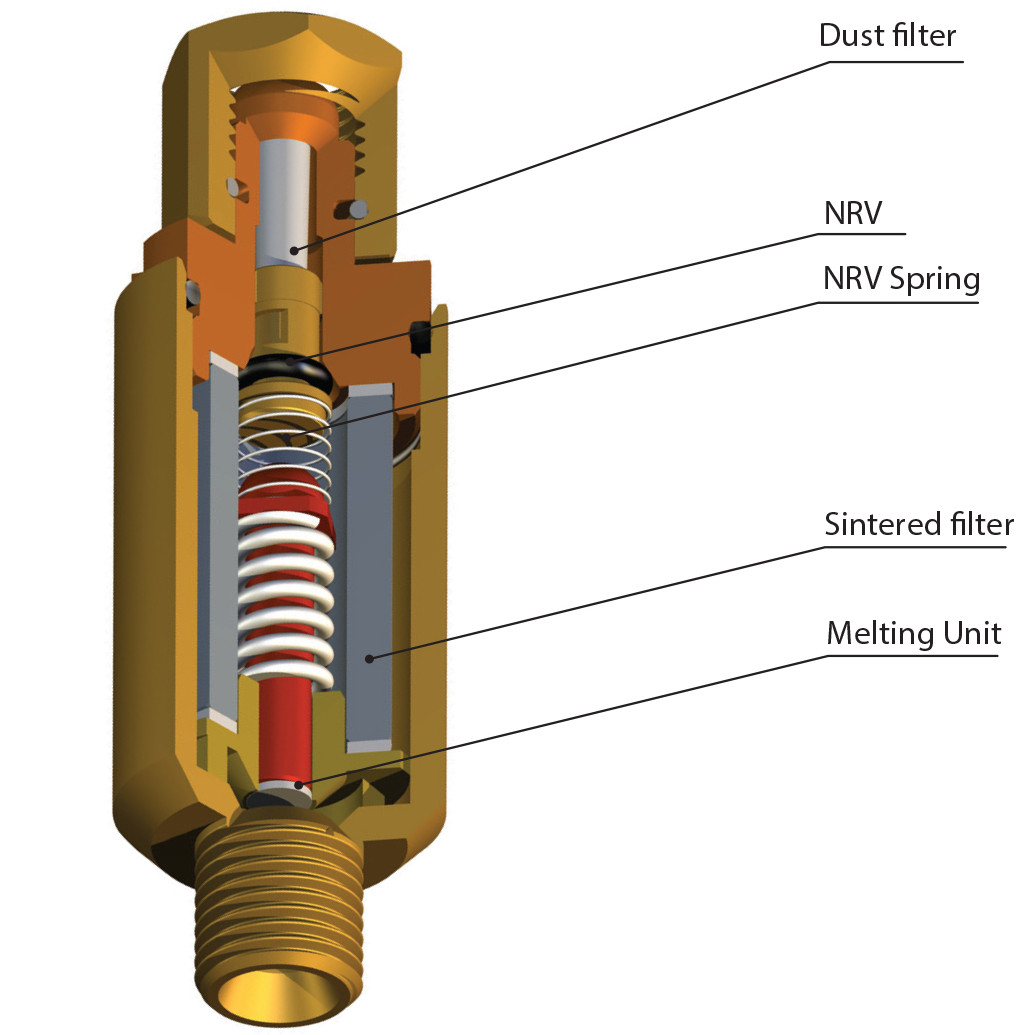

FUNCTIONS :
➤ FA Sintered flame arresting element.
➤ NV Non return valve to prevent reverse flow of gases.
➤ Pressure sensitive cut off valve PV.
➤ Temperature sensitive cut off valve TV.
➤ TV Thermal trip device, activated by heat to permanently cut off the gas supply.

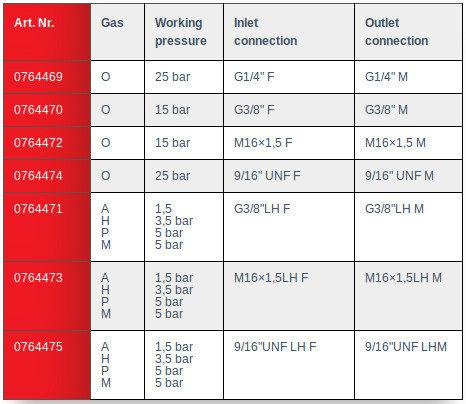

TECHNICAL DATA :
A: Acetylene; H: Hydrogen; PM: Methane PropaneTechnical Drawings :
| SAFE-GUARD-3/FR34 - 3 FUNCTION FLASHBACK ARRESTOR - (PDF) | {DOWNLOAD} |
