HF-SET

Group Number: 2711

HF-set are outlet points for high flow applications. They were originally designed for the installation of oxygen cutting machines but, because of their high flow capacity, they can be used for all industrial processes. Outlet points are based on two regulators. The S100 regulator is prepared for oxygen, acetylene and propane (this can also be used for natural gas). The maximal flow capacity of a S100 regulator is 100 Nm³/h for oxygen and 20 Nm³/h for fuel gases. Options can be added such as flashback arrestor GVA 90 or GVO 90. The S200 regulator is designed for oxygen and has a maximal flow capacity of 200 Nm³/h. The maximal inlet pressure of HF-set outlet points is 30bar for oxygen and 40 bar for other industrial gases.

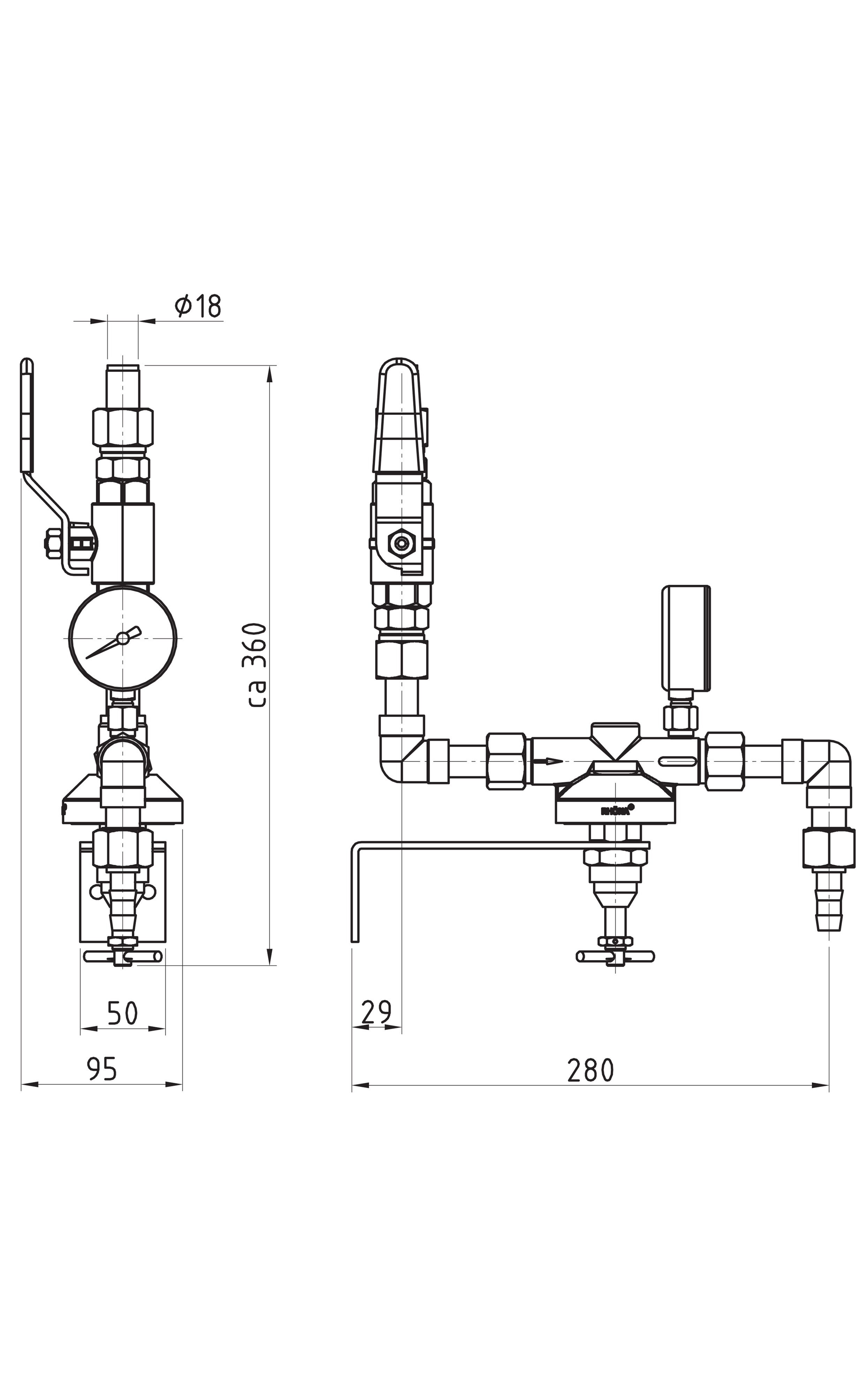

HF S100/S200

Individual high-capacity outlet points for various industrial oxy-fuel applications. There are versions for oxygen with S100 or S200 regulators, version for acetylene and for propane, both with S100 (BG20) regulator. Products can be equipped with flashback arrestor (FBA) GVO90 or GVA90.

Art. Nr.	Type	Gas	Flow capacity	Outlet pressure	Inlet	Outlet
14016242	S100	O	100 m³/h	10 bar	G3/4”	G3/4”
0768195	S100	O	100 m³/h	16 bar	G3/4”	G3/4”
0768086	S200	O	200 m³/h	15 bar	G3/4”	G3/4”
0768087	S100 + FBA	O	100 m³/h	10 bar	G3/4”	G1/2”
14016243	S100 (BG20)	A	20 m³/h	1,5 bar	G1/2”LH	G1/2”LH
14016244	S100 (BG20)	P	20 m³/h	4 bar	G1/2”LH	G1/2”LH
0768088	S100 (BG20) + FBA	P	20 m³/h	4 bar	G1/2”LH	G1/2”LH

HF TRIPLE S100

Three outlet points with S100 regulators mounted on the stable wall bracket. Outlets for heating oxygen as well as for fuel gas contain three function flashback arrestor for GVO 90 and GVA 90.

Art. Nr.	Description
14016180	S 100 triple unit oxy/acetylene
14016181	S 100 triple unit oxy/propane

These Point-of-use systems are designed for high performing applications, i.e. machine cutting and automized heating and similar applications, where standard point-of-use stations do not provide sufficient capacity and flow and where it is not necessary to regulate gas pressure at the outlet of the pipeworks.

BALL VALVE UNIT

For compressed gases.
Inlet: G 3/4“ swivel nut with brazing nipple, diameter 19 mm.
Outlet: G 3/4“ swivel nut with hose nipples, 12,5 and 16 mm.

Art. Nr.	Type	Gas, pressure	Inlet	Outlet
14016175	DN20 Ball valve unit	O/N 40 bar	G3/4“	G3/4“

UNIT WITH FLASHBACK ARRESTOR

Consists of high performance multi functional safety device GVO 90/GVA 90 and ball valve DN 20, without regulator.

Art. Nr.	Type	Gas, pressure	Inlet	Outlet
14016176	DN20 Ball valve unit with GVO90	O, 20 bar	G3/4“	G1/2“
14016178	DN20 Ball valve unit with GVA90	All fuel gases, 5 bar, 1,5 bar	G1/2“	G1/2“LH

HF TWIN

Art. Nr.	Type	Gas, pressure	Inlet	Outlet
14016177	DN20 Ball valve unit with twin GVO90	O, 20 bar	G3/4“	G3/4”
14016179	DN20 Ball valve unit with twin GVA90	All fuel gases, 5 bar, 1,5 bar	G3/4“	G3/4”LH
0764926	Twin GVO90 unit	O, 20 bar	G3/4“	G3/4”LH
0764927	Twin GVA90 unit	All fuel gases, 5 bar, 1,5 bar	G3/4”LH	G3/4”LH
