OUTLET POINTS UNISET

Group Number: 2711

UNISET are new outlet points in GCE’s proposal for industrial gases service. They were created using the long term experience with production of central gas supply systems. Variants for oxygen and fuel gases are equipped with three function flashback arrestors (FBA). There are two design types for shielding gases. The first consists of flow-gauge showing flow-rate adjusted by a pressure regulator. The second one is based on a flow-meter with an adjustment valve supplying and indicating the exact flow-rate. Components of the entire range are mounted on a stable steel wall bracket ensuring fast and safe installation. Gas supply can easily be connected to the application with outlet hose nipples.

Oxy/inert is ready for oxygen service and can also be used for argon, nitrogen, helium, carbon dioxide, compressed air and their mixtures. Special oxygen variants as well as acetylene and propane variants contain FBA. The fuel gas variant is designed for hydrogen, methane and natural gas. Unisets for shielding gases (Ar and Ar mixtures) show adjusted flow-rate using either pressure gauge with flow-scale or flow-meter. The special twin variant enables the connection of two welding generators at one outlet pipe. This can also be used for the combination of welding and root shielding with identical gas. Flow variant for N2/H2 and Ar/H2 with outlet capacity of 50 I/min is optimal for root shielding application.

TECHNICAL DATA

Regulator body and bonnet:	Brass
Diaphragm:	EPDM, NBR
Seat sealing:	PA, Chloroprene
Connectors & fittings:	Brass
Wall bracket:	Steel Zn-coated
Maximal inlet pressure:	30 bar Oxygen
Maximal inlet pressure:	40 bar Other gases
Temperature range:	from -20 °C to 60 °C

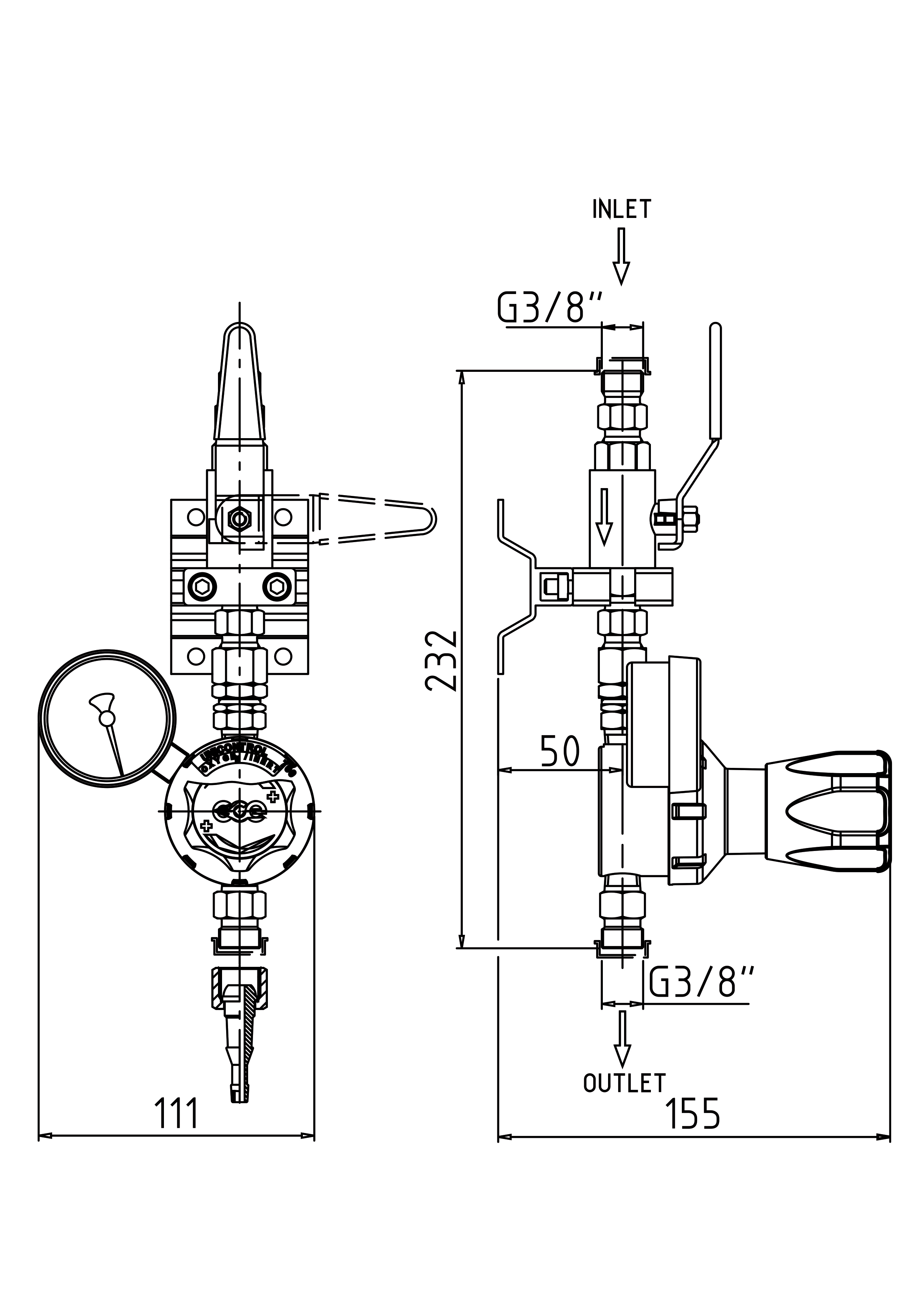

UNISET SINGLE UNITS

Single units are prepared for all technical gases and can be used for all industrial processes.

Art. Nr.	Gas	Outlet range	Inlet	Outlet
0768156	O/N	2,5 bar	G3/8”	G3/8”
0768157	O/N	5 bar	G3/8”	G3/8”
0768158	O/N	10 bar	G3/8”	G3/8”
0768109	O/N	16 bar	G3/8”	G3/8”
0768210	N	40 bar	G1/2”	G3/8”
0768108	O	10 bar FBA	G3/8”	G3/8”
0768106	A	1,5 bar FBA	G3/8”	G3/8”
0768107	P	2,5 bar FBA	G3/8”	G3/8”
0768190	H/M	16 bar	G3/8”	G3/8”
0768103	Ar/Mix	30 l/min Gauge	G3/8”	G1/4”

UNISET FLOW

Single units for shielding gases with flow-meter and dosing valve are giving and showing exact flow-rate.

Art. Nr.	Gas	Outlet range	Inlet	Outlet
0768104	Ar/Mix	15 l/min Flow	G3/8”	G1/4”
0768155	Ar/Mix	30 l/min Flow	G3/8”	G1/4”
0768260	N/H,Ar/H	32 l/min Flow	G3/8”	G3/8”

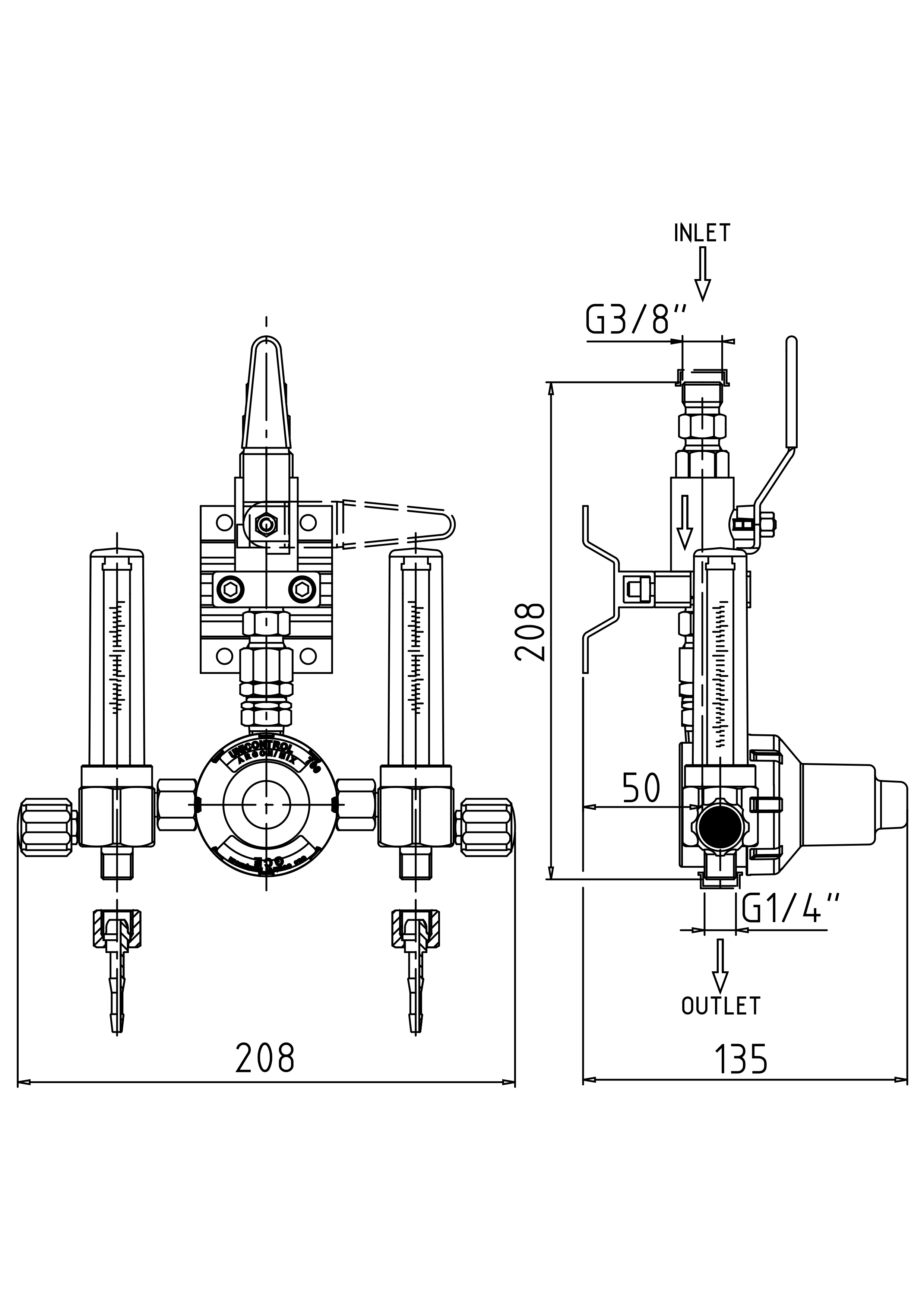

0768105	Ar/Mix - Ar/Mix	30 l/min Flow	G3/8”	2×G1/4”+

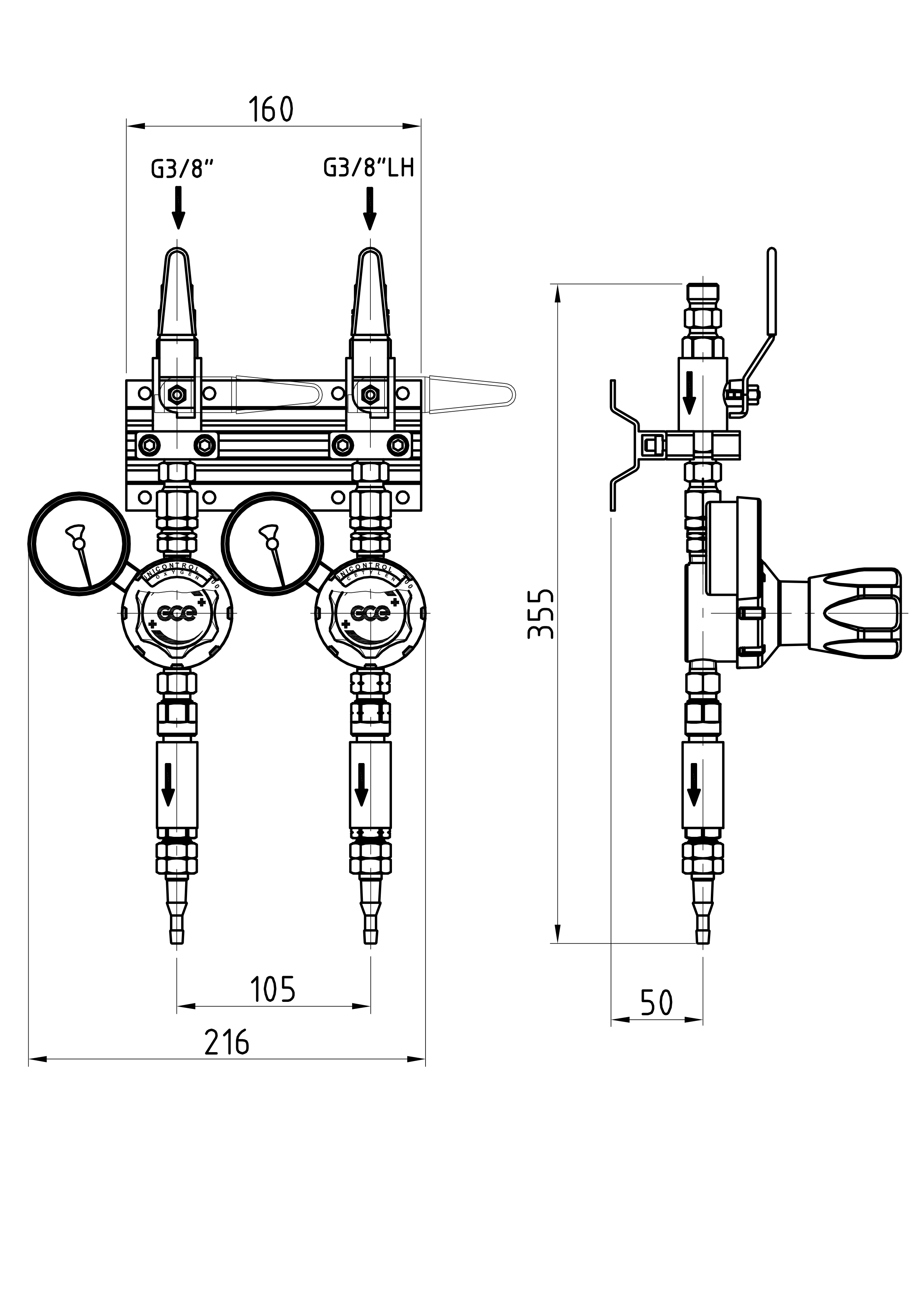

UNISET DOUBLE UNITS

Double units are useful for oxy-fuel applications as well as for arc welding and plasma applications including root shielding. Other gas combination are on request.
