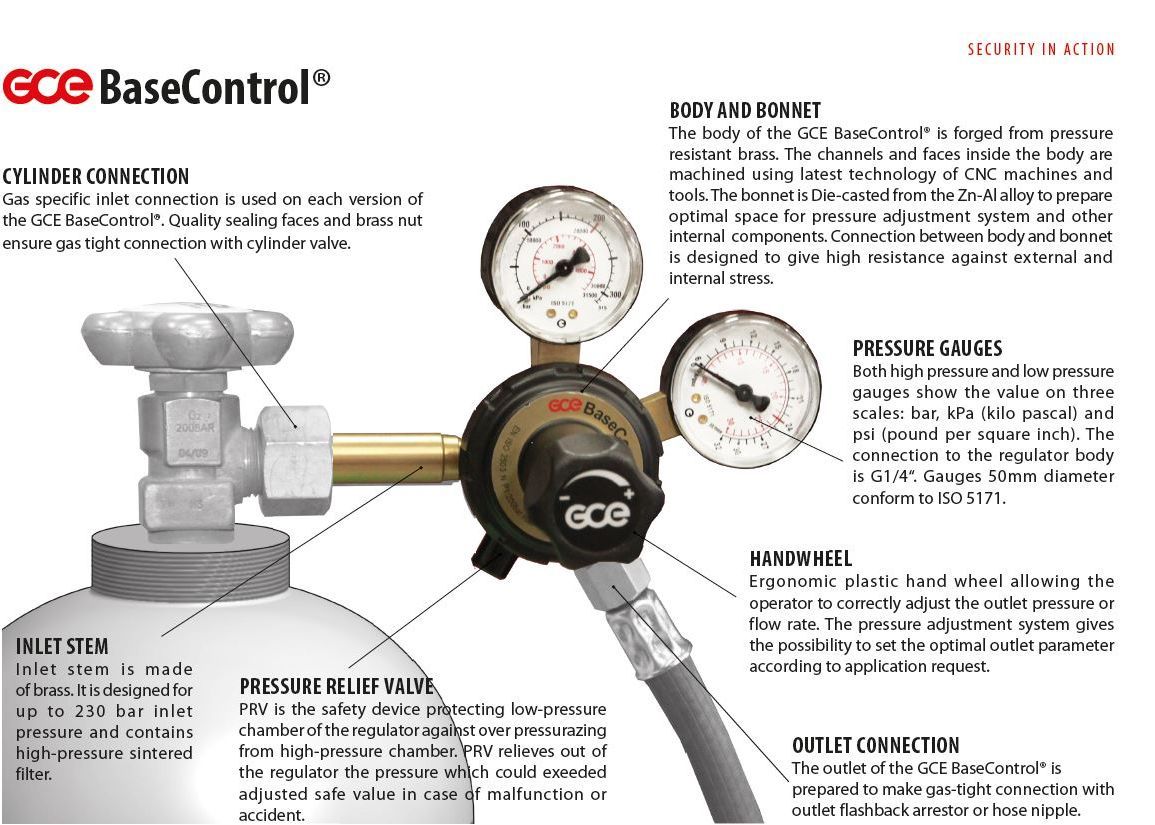

BASECONTROL® SE, BE


FEATURES, ADVANTAGES, BENEFITS

  • Cylinder regulator conforming to ISO 2503
  • Safe operation with high compressed gases up to 230 bar cylinder filling pressure.
  • Available in following variants:

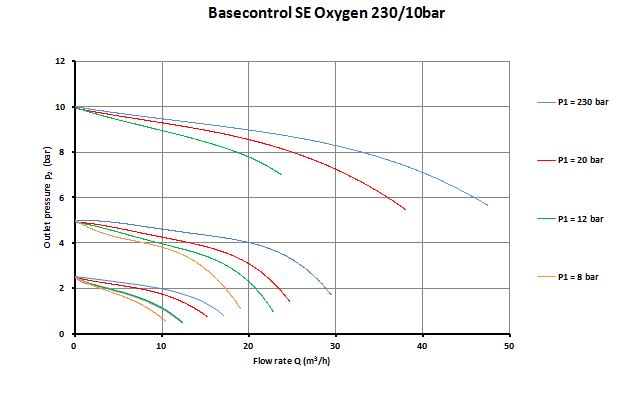

      - Oxygen 230/10 bar

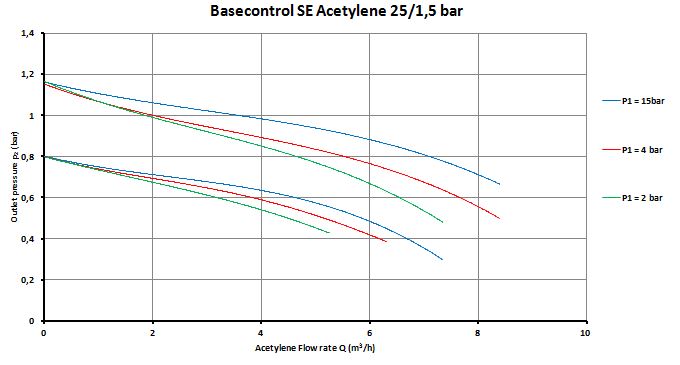

      - Acetylene 25/1,5 bar
      - Propane 25/4 bar
      - Ar/Ar-CO2 mixtures 230/24 l/min
      - CO2 200/24 l/min
      - Gas specific cylinder connection according to standards
      - GCE BaseControl® SE regulator with side configuration of the inlet
         connection (side entry)
      - GCE BaseControl® BE regulator with bottom configuration of the inlet
         connection (bottom entry)
  • Oxygen adiabatic shock safety
  • Regulating valve protected against mechanical particles of size 50μm by inlet filter
  • Protection of the low pressure part with integrated pressure relief valve
  • Pressure values are shown on the gauges in three major pressure units scales: bar, kPa, psi
  • Flow gauge showing the value in litres per minute (l/min)
  • Useful in various applications as e.g.:
      - Shielding gas arc welding
      - Flame welding
      - Oxy-fuel cutting
      - Flame brazing
      - Different heating processes
      - Flame spraying

TECHNICAL DATA

Gas: O2
 Ar
Ar/CO2
 CO2
 Acetylene Propane
Body: Brass forged
Bonnet: Zn/Al alloy forged
Stems, nuts
and fittings:		 Brass
Diaphragm: EPDM NBR
Seat sealing: PA CR
Inlet/Outlet connection: Gas specific connection
Maximal inlet pressure: 230bar 230bar 200bar 25bar 25bar
Outlet pressure range: 0-10bar 0-24l/min 1,5bar 4bar
Temperature range: from -20°C to 60°C
Weight: Approx. according to gas variant: 1,18 kg
ISO 2503 Class: 3 20 20 2 1

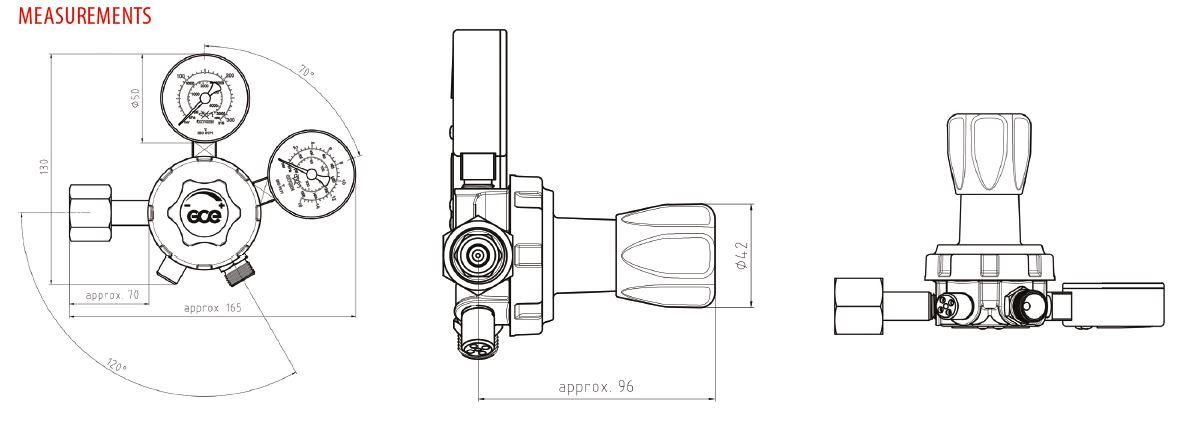

Technical Drawings
