High Flow Line Regulators


CELTIC AML1, RGCL - DIRECT REGULATORS (FIRST STAGE REGULATOR)

The CELTIC range can be used with all common non-corrosive industrial gas. As for regulation, these products are very accurate.

APPLICATION

  • First stage regulation for propane at the outlet of a cistern (RGCL-N)
  • Pressure limiting device (AML1 with RD05)

PRODUCT ADVANTAGES

  • Watertightness in case of bad weather
  • All components comfortably accessible
  • Easy and fast dismantling
  • Simple and heavy-duty
  • Low pressure closing
  • Stainless steel adjustment screw
  • Flange with turning end-plate (for DN 50)


CELTIC RGCL-N

Art. Nr.
Connection Gas

Max.inlet pressure bar (psi)

 Outlet
pressure bar (psi)
 Flow air Nm3/h
 Flow propane kg/h
 I130420SL Flanged DN 50* N, M, P 20 (300) 0,8-5 (12-70)  190-680  295-1050

*Version with gauge


CELTIC AML1-N

Art. Nr.
 Connection Gas

Max.inlet pressure bar (psi)

 Outlet
pressure
bar (psi)		 Flow air Nm3/h Flow propane kg/h
I130551SL G1"1/2"F N, M, P 20 (300) 0,8-5 (12-70) 190-680 295-1050
I130552SL Flanged DN 50* N, M, P 20 (300) 0,8-5 (12-70) 190-680 295-1050
I130553SL G1"1/2"F O 20 (300) 0,8-5 (12-70) 190-680 295-1050

 *Version with gauge



CELTIC AML1-S (AML1 with RD05)

Art. Nr. Connection Gas

Max.inlet pressure
bar (psi)

 Outlet
pressure
bar (psi)		 Flow air
Nm3/h

Flow propane
kg/h
I130561SL G1"1/2"F* N, M, P 20 (300) 0,8-2 (12-30) 190-350  295-540
I130562SL G1"1/2"F* N, M, P 20 (300) 1,3-5 (20-70) 250-680  390-1050
I130563SL Flanged DN 50* N, M, P 20 (300) 0,8-2 (12-30) 190-350 295-540
I130564SL Flanged DN 50* N, M, P 20 (300) 1,3-5 (20-70) 250-680 390-1050
I130565SL G1"1/2"F O 20 (300) 0,8-2 (12-30) 190-350 295-540
I130566SL G1"1/2"F O 20 (300) 1,3-5 (20-70) 250-680 390-1050

  *Version with gauge


SPARE PARTS

Maintenance kit for models with spring used with non-corrosive gas.

Art. Nr.
 Model Contents
I291281 CELTIC AML1, RGCL-N 1 diaphragm, 1 diaphragm washer (for AML2), 1 complete regulating valve, 3 washers (plug, valve), 1 blind nut
I291288

CELTIC AML1, RGCL-N

 Flanges (2x) + Neck (2x)
I303348P

CELTIC AML1, RGCL-N

 Pressure gauge 6 bar
 I291205  CELTIC AML1, RGCL-N Counter flange (1x) + DN 50 + Bolts (4x) + Washer
I291263

Previous model of CELTIC AML1, RGCL-N

 1 diaphragm, 1 diaphragm washer (for AML2), 1 complete regulating valve, 3 washers (plug, valve), 1 blind nut


ACCESSORIES

Outlet security kit for N-models not having outlet security device, GCE propose a security kit.

Art. Nr.
 Model Outlet pressure Name
I291300 CELTIC AML1-N 0,3 to 0,8 bar Kit RD05 - C AML
I291302

CELTIC AML1-N

0,5 to 2 bar

 Kit RD05 - B AML
I291301

CELTIC AML1-N

1,3 to 5 bar

 Kit RD05 - A AML

The installation of the security device has to be done in our workshop.



TECHNICAL DATA

Max. inlet pressure: 20 bar
Material: Aluminium alloy body
Connection: CELTIC AML 1 - RGCL-N: inlet and outlet with flange DN50 PN 40
or thread G 1"1/2"F (40 x 49)
Operating temperature range: from -20 to + 60°C

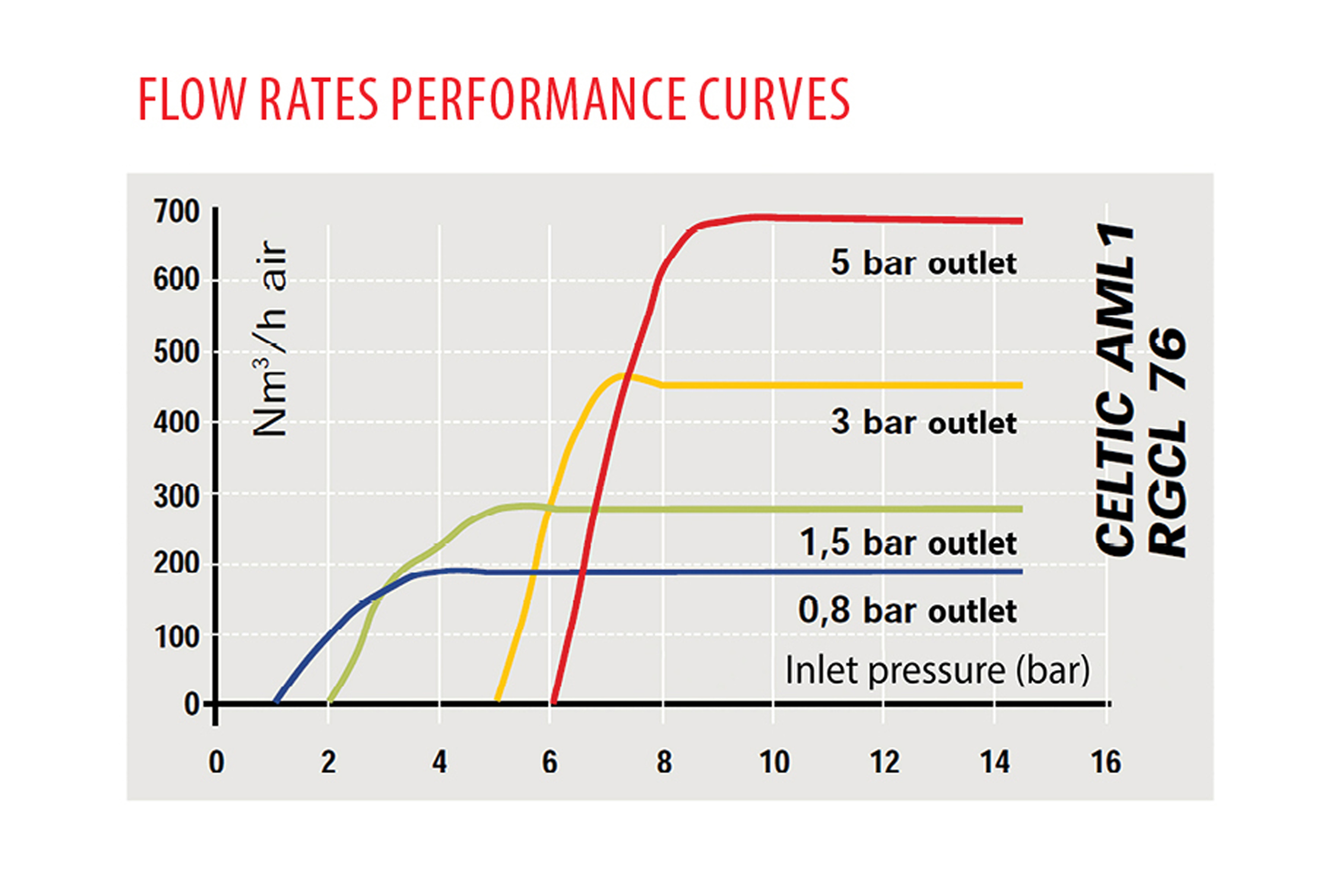

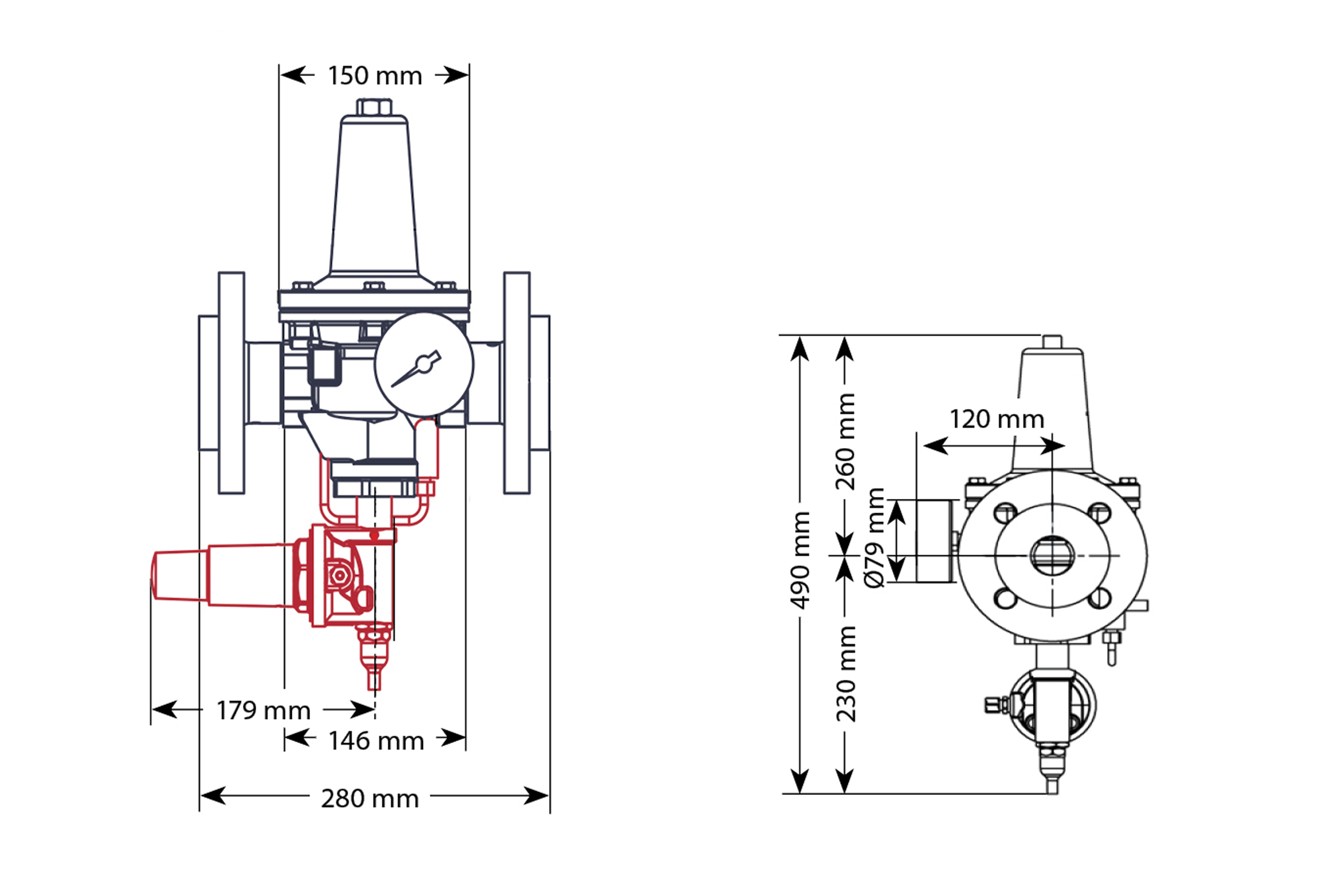

Technical Data Sheet / Drawings :
