Gas Control Panels

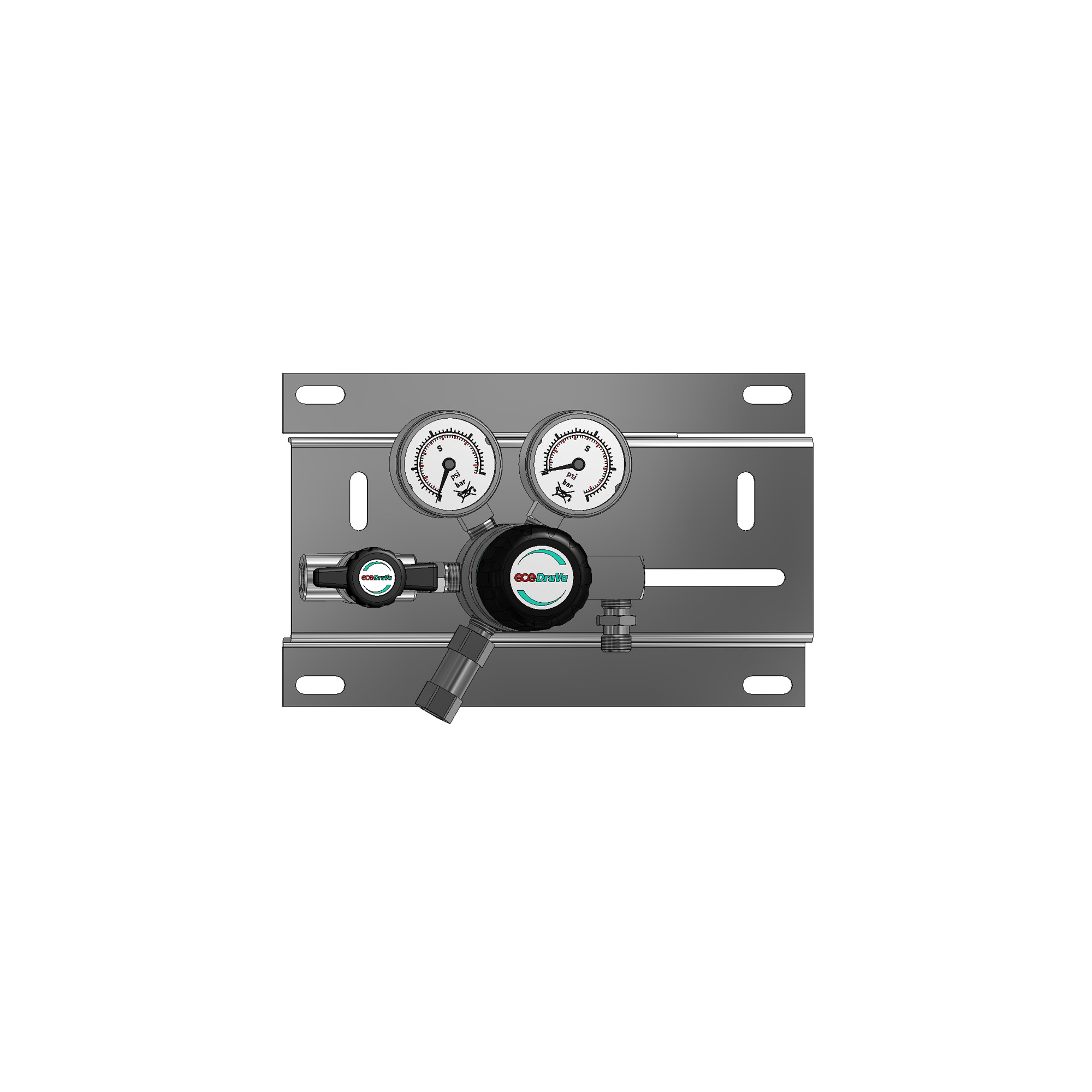

SMD 500 1-STAGE, 6.0 200 BAR

Group Number: 4500

Compact Single-stage gas supply panel for non-corrosive gases and mixtures up to grade 6.0. For the connection of 1 cylinder with a maximum filling pressure of 200 bar. Diaphragm type regulator and isolation valve.

  • For wall mounting or gas cylinder cabinet mounting
  • For inert, reactive, flammable and oxidizing gases and gas mixtures
  • Excellent and accurate Pressure control
  • Designed to minimize contamination
  • Low internal volume (no dead-space)
  • Ergonomical and functional design
  • Designed for easy installation
  • Long service life and easy to maintain
  • Suitable for ECD applications
  • Modular: Extendable - 2x1, 3x1, 4x1 cylinders
  • BAM-tested for Oxygen use

TYPE DESIGN

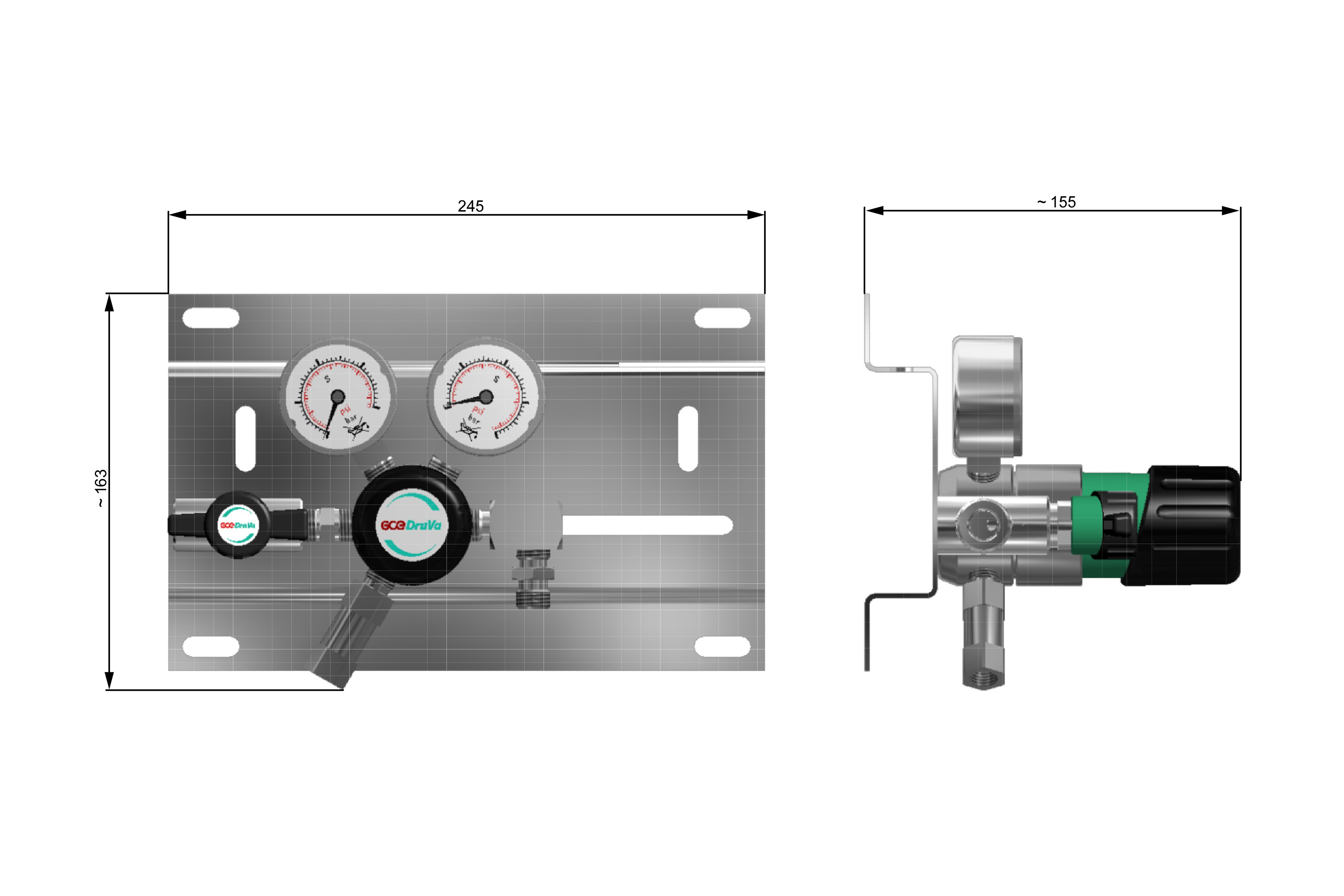

16 - BASIC: Shut-off isolation valve, 1/4''NPTF or 6 mm compression fitting

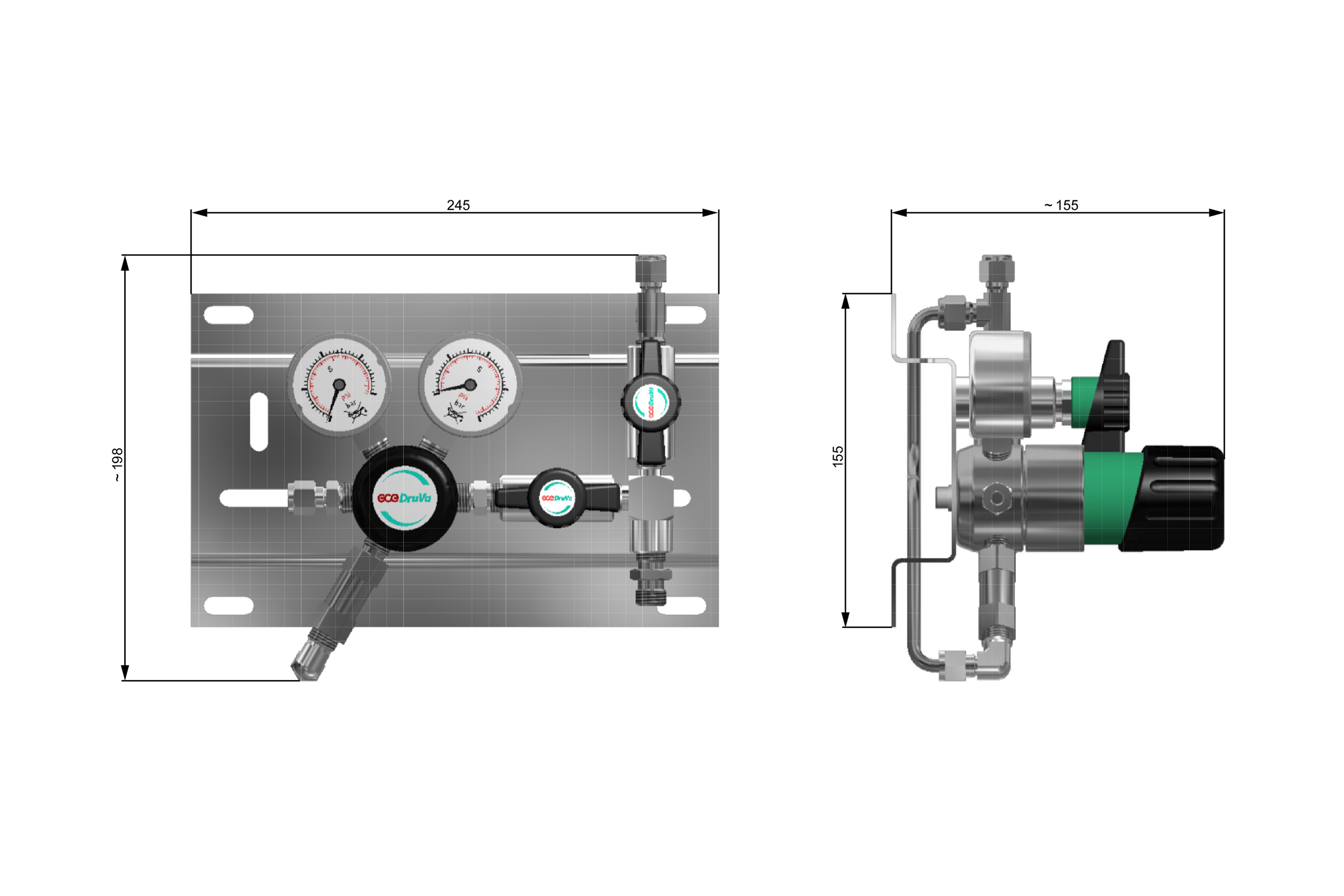

24 - PROCESS GAS PURGING: Metal diaphragm valves (inlet and purge outlet)  with 90° shut-off function.

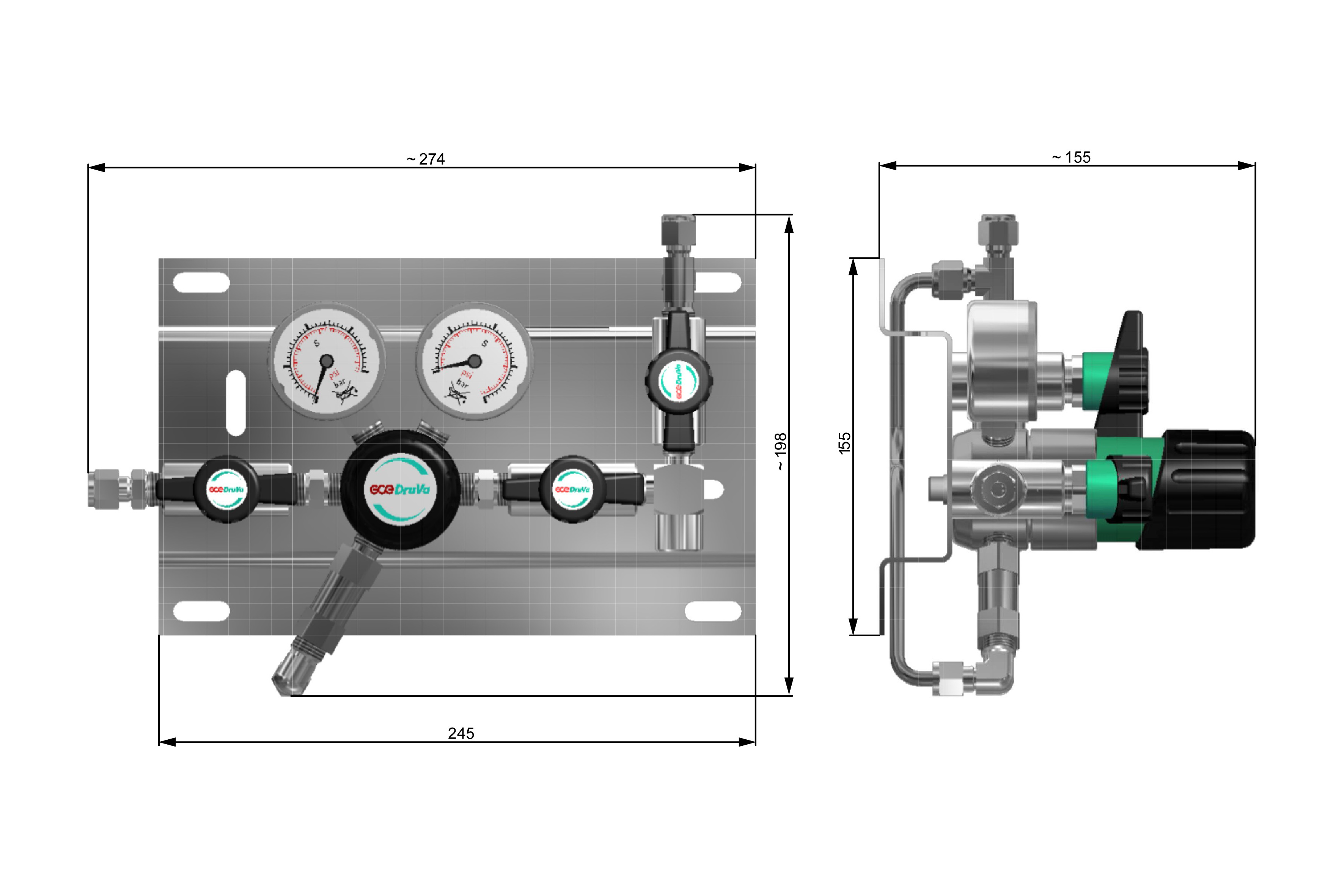

25 - PROCESS GAS PURGING AND PROCESS ISOLATION OUTLET: Same as type 24 + additional shut-off valve in the process gas outlet

Max Inlet Pressure 230 bar / 3335 psi
Max Outlet Pressure 14 = 1 - 14 bar (15 - 200 psi) | 28 = 2,5 - 28 bar (36 - 365) | 50 = 2,5 - 50 (36 - 425) | 200 = 10 - 288 bar ( 1445 - psi)
Body Material Type Brass, chrome-plated or stainless steel
Inlet Connection N14 = 1/4'' NPTF M14 = M14x1,5
Outlet Connection Modular - check datasheet

Technical Drawings
