High Pressure Manifolds

MM70-2

Group Number: 2731

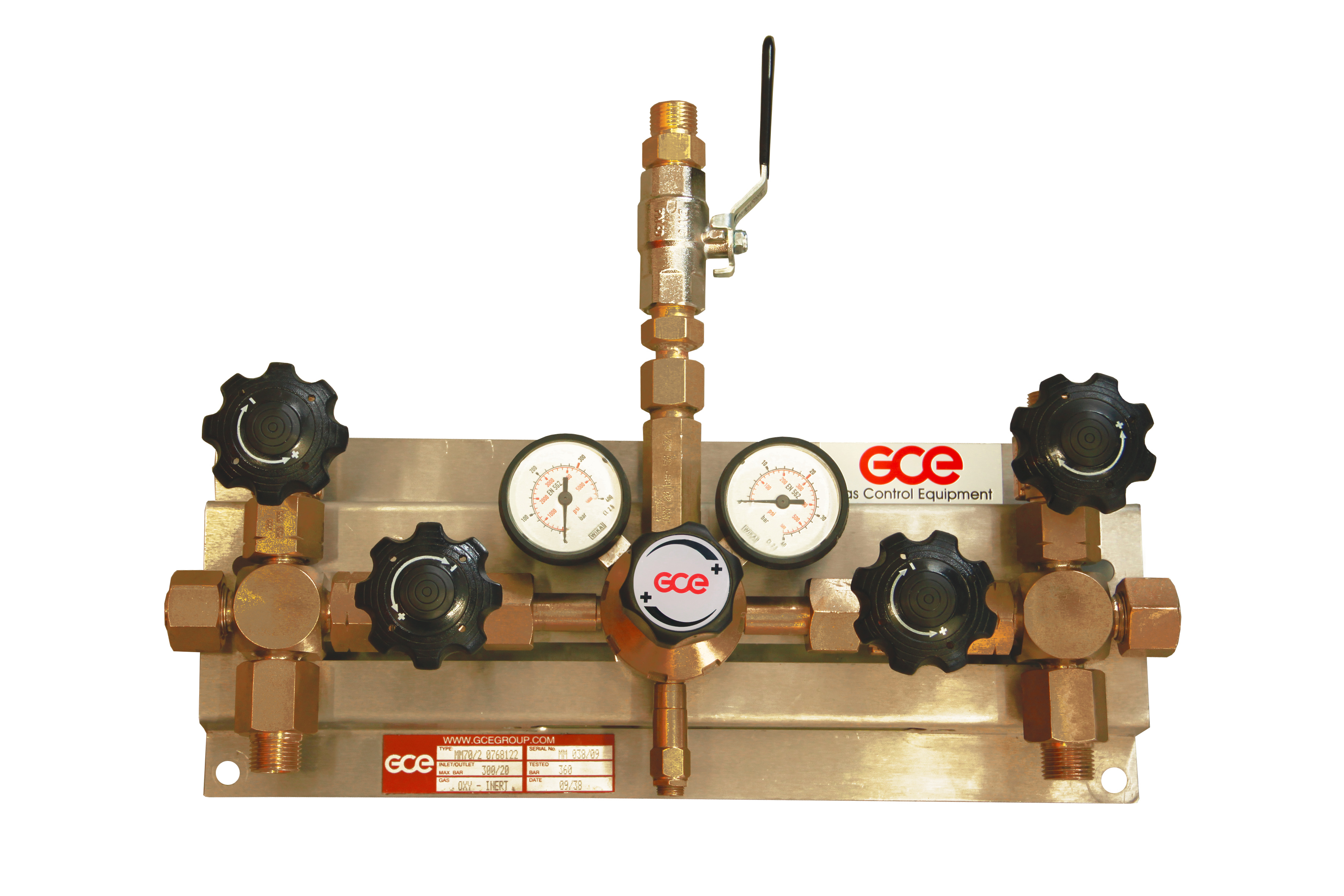

Manual changeover manifold for different gases with inlet pressure up to 300 bar. On both outlet sides there are x-blocks with non-return valves and filters, purge valves and second inlets from sites for extension units. Shut-off valves, regulators with pressure relief valves and outlet ball valves, as well as other components, are mounted on the stainless steel panel. Acetylene variant of MM70-2 manual changeover manifold for cylinder service.

  • Outlet: DN15, G1/2”

Art. Nr. Gas Pressure Inlet
0768122 O, D, N, CO2 300/20 bar W21,8×1/14“
0768143 O, D, N, CO2 300/40 bar W21,8×1/14“
0768124 H/M 300/20 bar W21,8×1/14“LH
0768125 P 25/4 bar W21,8×1/14“LH
0768140 A 25/1,5 bar W21,8×1/14“LH


TECHNICAL DATA

  O, Inert, CO2          H, P A
Regulator type: Unicontrol 500
Body, bonnet material:  Brass

Brass
(Cu< 65 %)
Connectors & fittings material:

Brass, Stainless steel

Brass (Cu< 65 %),
St. steel
Diaphragm material: EPDM  NBR EPDM
Seat sealing material: PA PA Chloroprene
Wall bracket: Stainless steel
Maximal inlet pressure:

300 bar

300 bar (H),
25 bar (P)

 25 bar
Maximal inlet pressure:

300 bar

300 bar (H),
25 bar (P)

 25 bar
Maximal flow rate:

50 Nm3/h

50 Nm3/h (H),
10 Nm3/h (P)

 5 Nm3/h
Temperature range: from -20 °C to 60 °C
