Gas Control Panels


SMD 530 1-STAGE, 6.0 300 BAR

Group Number: 4500

Compact Single-stage gas supply panel for non-corrosive gases and mixtures up to grade 6.0. For the connection of 1 cylinder with a maximum filling pressure of 300 bar. Diaphragm type regulator and isolation valve.

  • For wall mounting or gas cylinder cabinet mounting
  • For inert, reactive, flammable and oxidizing gases and gas mixtures
  • Excellent and accurate Pressure control
  • Designed to minimize contamination
  • Low internal volume (no dead-space)
  • Ergonomical and functional design
  • Designed for easy installation
  • Long service life and easy to maintain
  • Suitable for ECD applications
  • Modular: Extendable - 2x1, 3x1, 4x1 cylinders
  • BAM-tested for Oxygen use

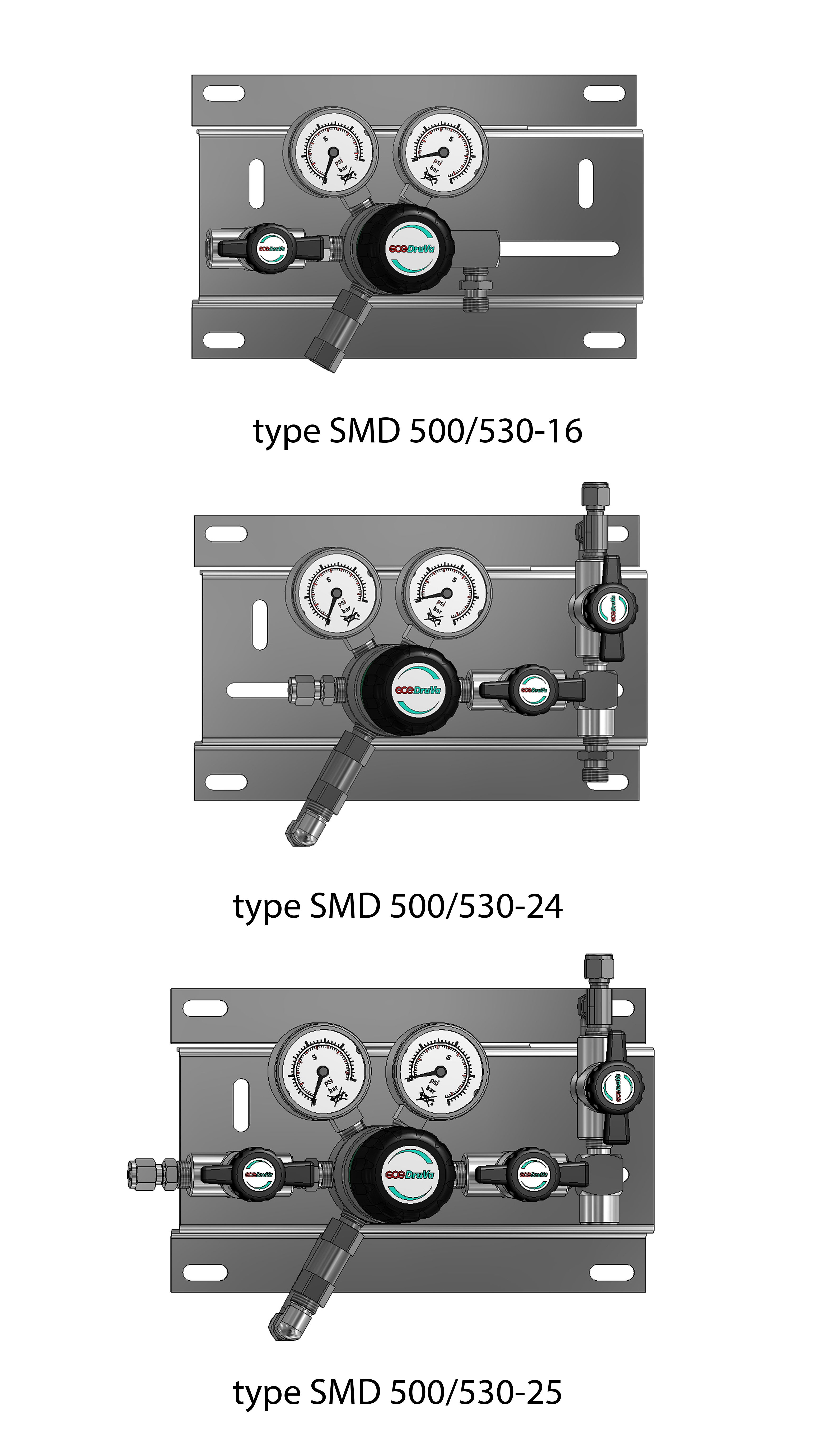

TYPE DESIGN
16 - BASIC Shut-off isolation valve, 1/4''NPTF or 6 mm compression fitting
24 - PROCESS GAS PURGING Metal diaphragm   valves (inlet and purge outlet)  with 90° shut-off function.
25 -  PROCESS GAS PURGING AND PROCESS ISOLATION OUTLET Same as type 24 + additional  shut-off valve in the process gas outlet

Regulator Type High Purity Cylinder regulator
Max Inlet Pressure 300 bar / 4350 psi
Max Outlet Pressure 14 = 1 - 14 bar (15 - 200 psi) | 28 = 2,5 - 28 bar (36 - 365 psi) | 50 = 2,5 - 50 bar (36 - 425 psi) | 200 = 10 - 200 bar (145 - 2900 psi)
Body Material Type Brass, chrome plated or stainless steel
Inlet Connection N14 = 1/4'' NPTF M14 = M14x1,5
Outlet Connection Modular - check datasheet

Technical Drawings
